Safety Micro Switch
This safety micro switch has a long metal lever with 3 pcs 20# faston terminals, the SPDT circuit code! Fast delivery time, fast quote, professional service!
Product name: MQS-216SA51AAM-01
Product applications: household appliances and industrial control.
Safety Micro Switch Description
Why we also can call it a safety micro switch it is because the microswitch can do the device position limitation by power ON and OFF. For example, the safety switches in the electric drying rack. In this design that the microswitch connects with the motor and power, when the rack arrives in somewhere to activate the switch, the power will be cut off for this circuit so that it will be stopped in some position to avoid damage. So, this is only one model for reference, if you have any other requirements, please also feel free to contact us.

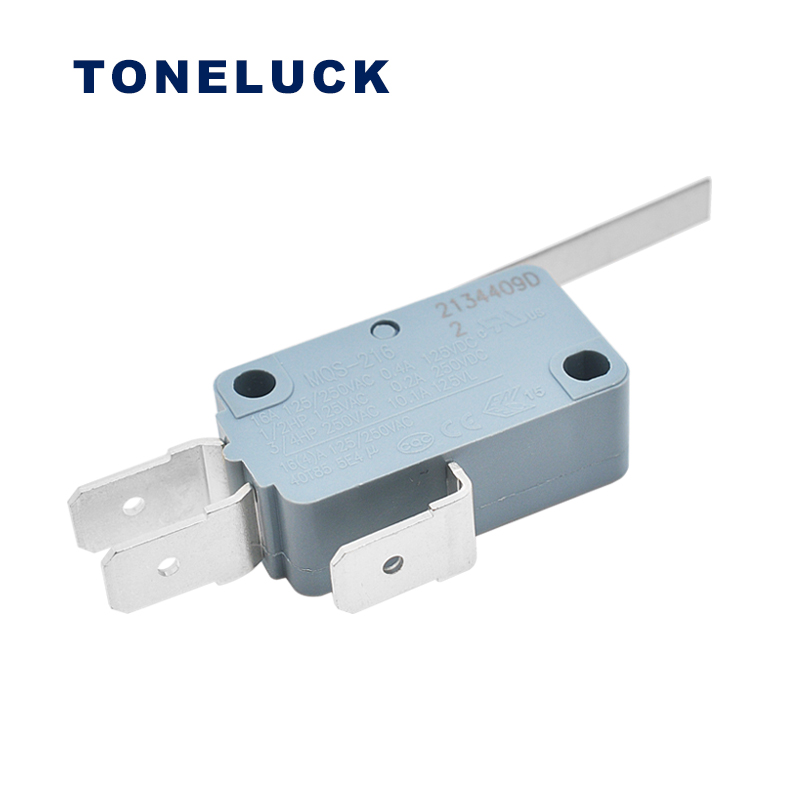

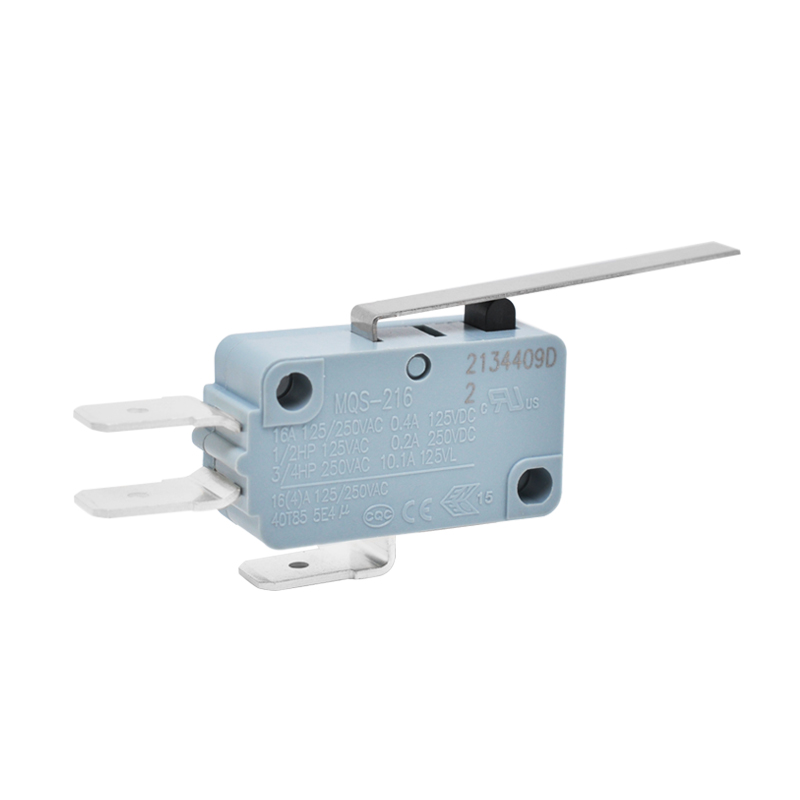

Meanwhile, MQS-216SA51AAM-01 has a long metal lever with 3 pcs 20# faston terminals and the SPDT circuit code. Besides, it also has many global safety certifications, which are available for company customers.
All in all, we can provide fast delivery time, fast quotes, and professional service for you!
Safety Micro Switch Specification
| Model No. | MQS-216SA51AAM-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC 0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16(4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Long metal lever |
| Operation Force (OP) | 55±20gf |
| Release Force (RP) | 15gf Min. |
| Pre-Travel (PT) | 5.5mm Max. |
| Over- Travel (OT) | 2.5mm Min. |
| Movement-Differential (DT) | 1.5mm Max. |
| Operation Position (OP) | 15.3±2.0 mm |
