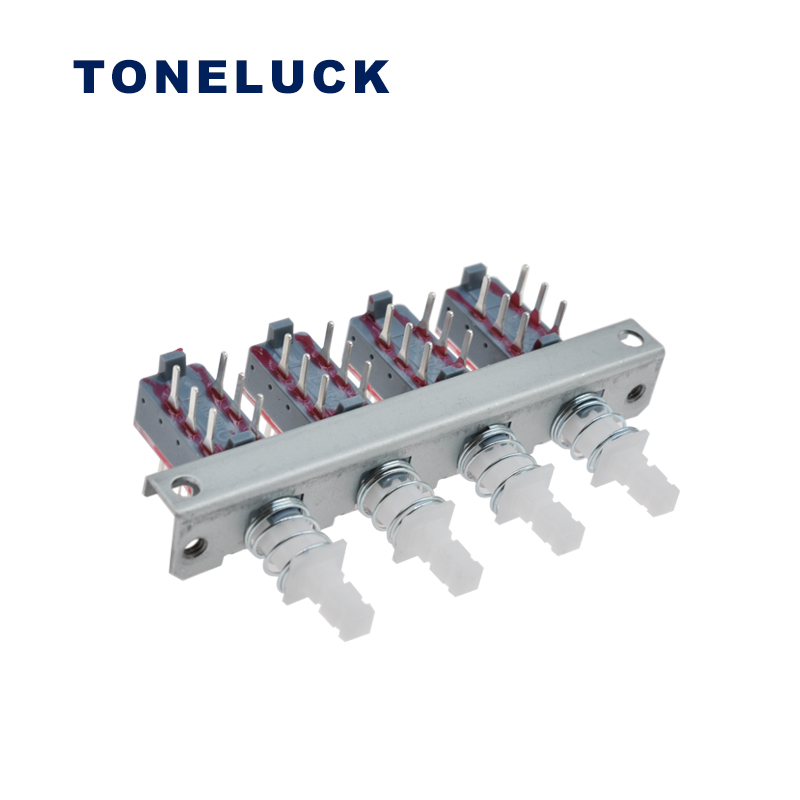

Power Amplifier Audio RQTIO Ganged Push Button Switch Bank (4) Power Amplifier Audio RQTIO Ganged Push Button Switch Bank (4)

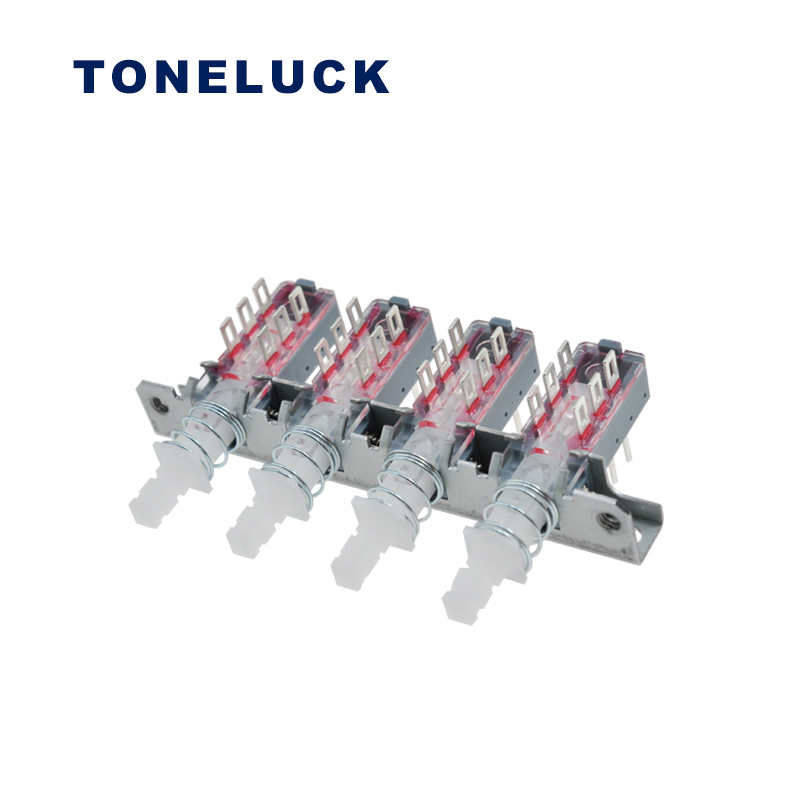

Power Amplifier Audio RQTIO Ganged Push Button Switch Bank (6) Power Amplifier Audio RQTIO Ganged Push Button Switch Bank (6)

Short Description

This is a ganged pushbutton switch bank that can be used in the power amplifier, audio, FET compressors, limiters as an RQTIO switch.

  • Push Button Switch Assembly

  • Product name: PBN-4-15T-0202

  • Product applications: power amplifier, audio, FET compressors, limiters

SEND EMAIL TO US
DOWNLOAD AS PDF

METER Switch Details Description

The PBN-4-15T-0202  assembly is a ganged push-button switch bank that can be used in the power amplifier, audio, FET compressors, limiters, and so on. As an RQTIO switch in the device, it also needs to install with the METER switch to control the device. Meanwhile, this type is the 4 pushbutton switches assembly and if you need other types like the 3 buttons, you also can contact us to get more product details.

Besides, the switch has the certificates of UL.cUL, ENEC, CQC to make sure the product quality. What’s more, if you need the datasheet of this model or sample,  please send us an inquiry to contact us.

Specification

Model No. PBN-4-15T-0056
Operating Temperature(The Small One) -25℃ to +85℃
Rating(The Small One) 6A 125/250VAC (UL.cUL, ENEC, CQC)
Electrical Life(The Small One) 10,000 cycles Min.
Insulation Resistance(The Small One) 100ΩM Min.
Dielectric Strength(The Small One) 1500VAC
Operation Force (OF)(The Small One) 560gf±150gf
Pre-Travel (PT)(The Small One) 3±0.5mm
Operating Temperature -10℃ to +60℃
Rating 0.1A/30VDC 10,000cycles Min. OR 1A/25VDC 5,000cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC
Operation Force (OF) 400±100gf
Pre-Travel (PT) 4.8±0.5mm
