Project Description

Push Button Latching Switch MPV-S4A-12.5 Push Button Latching Switch MPV-S4A-12.5
MPV-S4A-12.5 MPV-S4A-12.5
Push Button Latching Switch MPV-S4A-12.5 Push Button Latching Switch MPV-S4A-12.5
Push Button Latching Switch MPV-S4A-12.5 Push Button Latching Switch MPV-S4A-12.5
MPV-S4A-12.5 MPV-S4A-12.5

Short Description

Toneluck MPV is 0.1A 30VDC push button latching switch with 4 poles current code. It is the self-lock but the momentary type also available.

  • MPV Button Switch

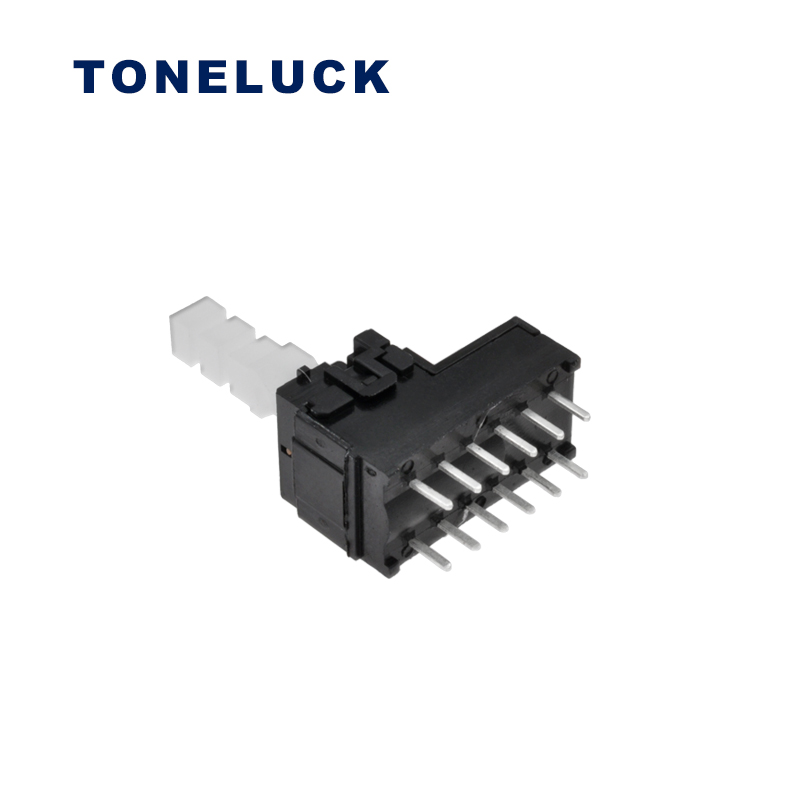

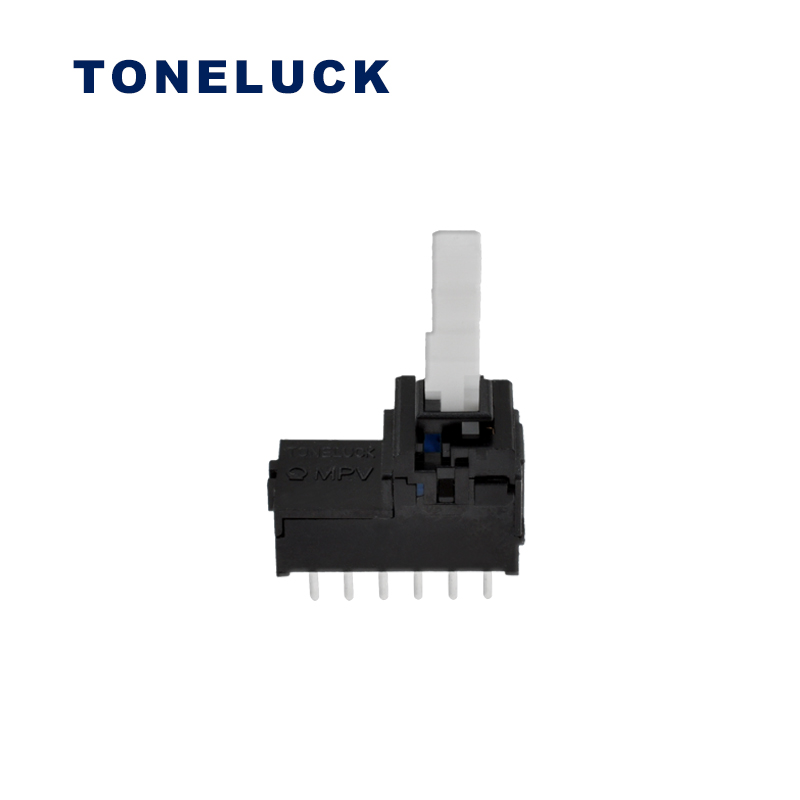

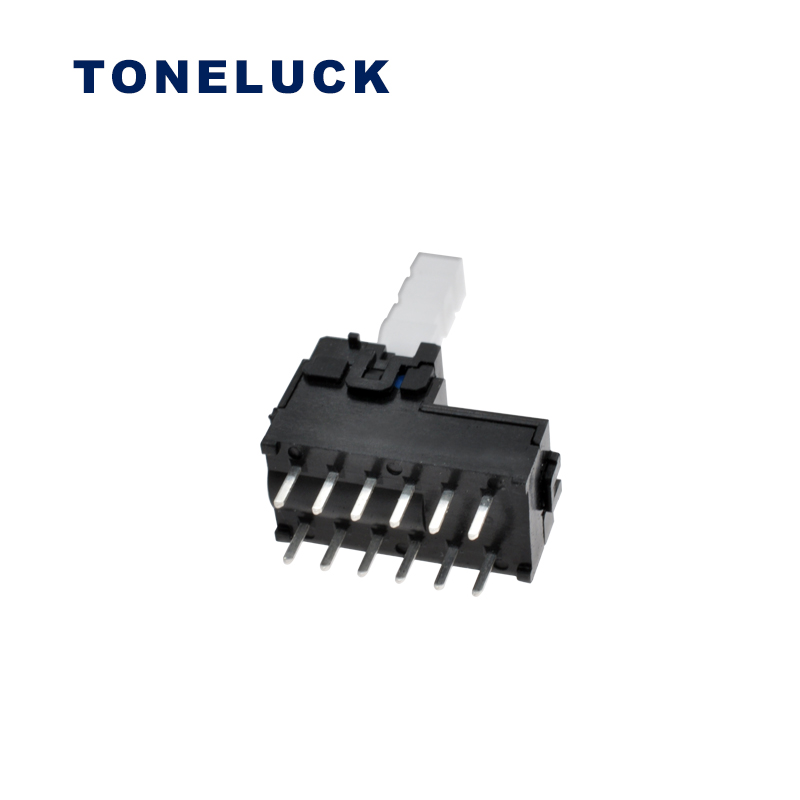

  • Product name: MPV-S4A-12.5 push button latching switch

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck MPV is a 0.1A 30VDC latching switch with a self-lock function, but the momentary function of this switch also is available. Meanwhile, this model is a 4 poles current code. However, if the buyer needs 2 or 6 poles of a switch, which also are available from us. Meanwhile, customer can choose their requirement of actuator height according to their installing environment.

Because most of the omers need to assemble the switch together like the following, we can provide the subassembly for you. Besides, the switch has the certification of UL, cUL, ENEC, CQC, and so on. Toneluck is a manufacturer group company and founded in 1976, which is a famous switch brand in the Asia, Europe, and America. From the past to now, we had worked with many world-famous companies, welcome to visit our homepage to see.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
