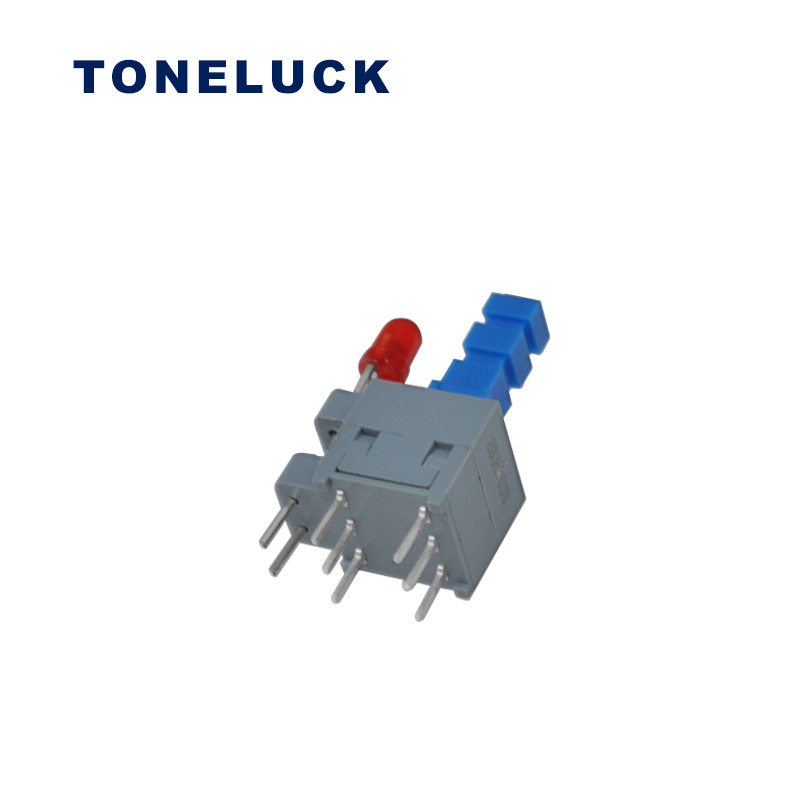

push button electrical switch 1 push button electrical switch 1

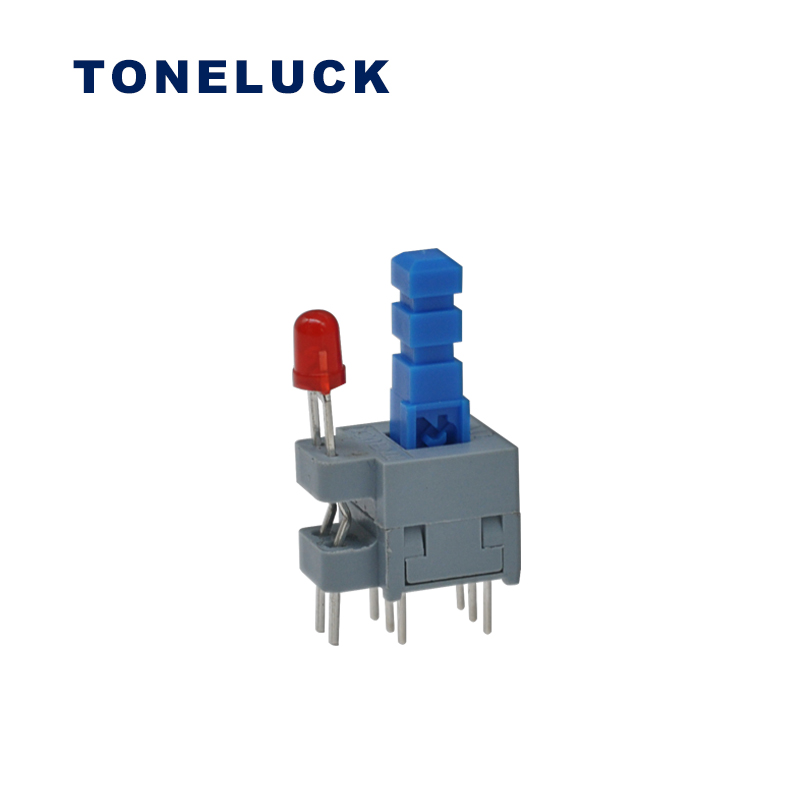

push button electrical switch 2 push button electrical switch 2
push button electrical switch 3 push button electrical switch 3

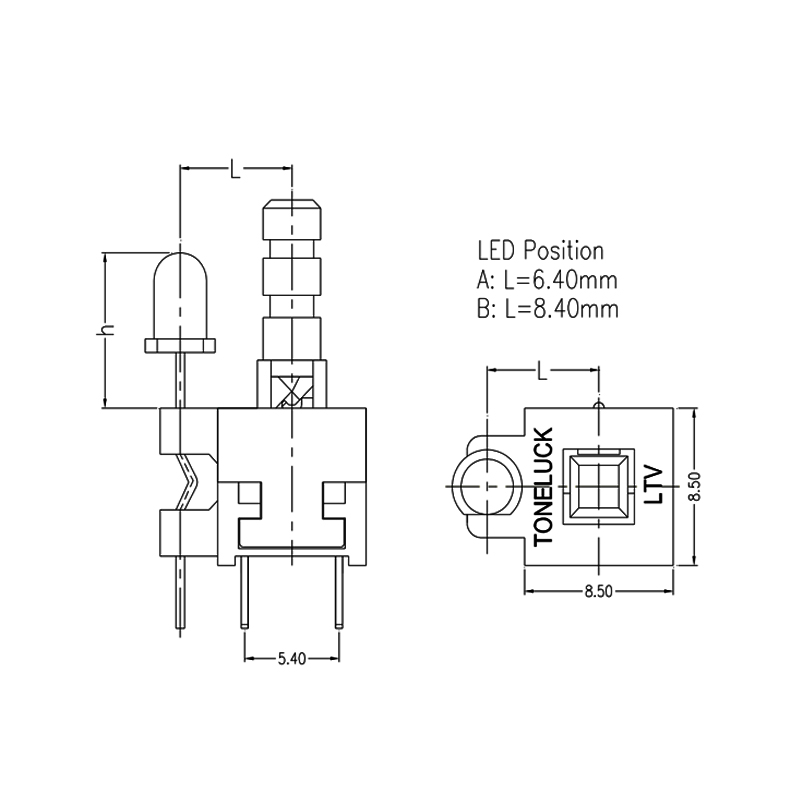

push button electrical switch 4 push button electrical switch 4

Short Description

Push Button Electrical Switch Single LED Light 0.1A 30VDC

  • LTV Button Switch

  • Product name: LTV77-NN12.0-AN

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Push Button Electrical Switch Single LED Light 0.1A 30VDC

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
