Short Description

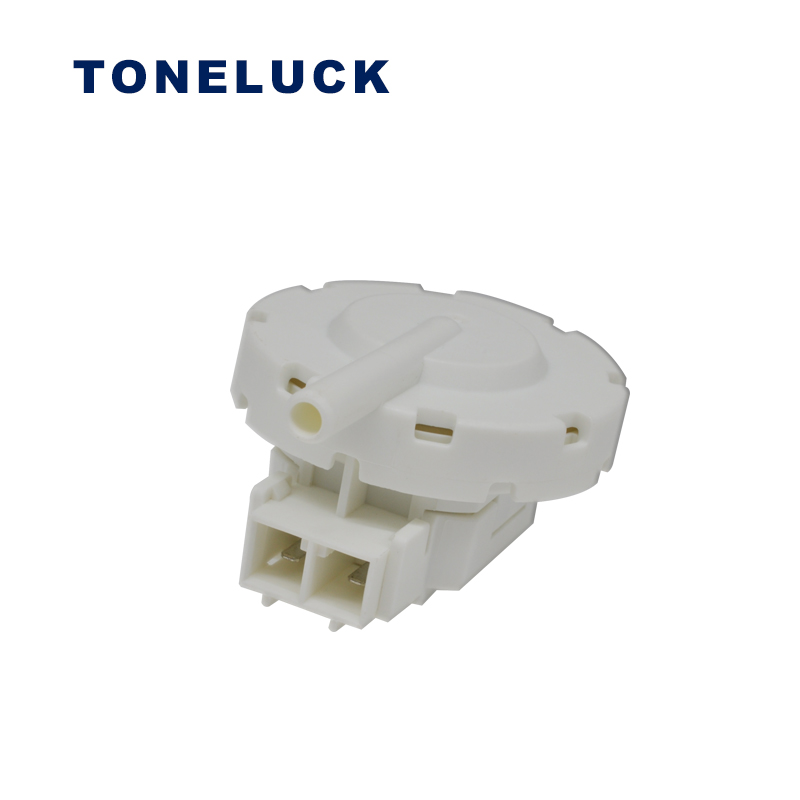

Pressure Sensor Switch Water Level For Air Conditioner Washing Machine Dishwasher

  • Water Level & Pressure Switch

  • Product name: B7-3121-A002

  • Product applications: Washing machines, dishwashers, home appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Pressure Sensor Switch Water Level For Air Conditioner Washing Machine Dishwasher

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
