Project Description

E53AL-BN00AG-01 E53AL-BN00AG-01

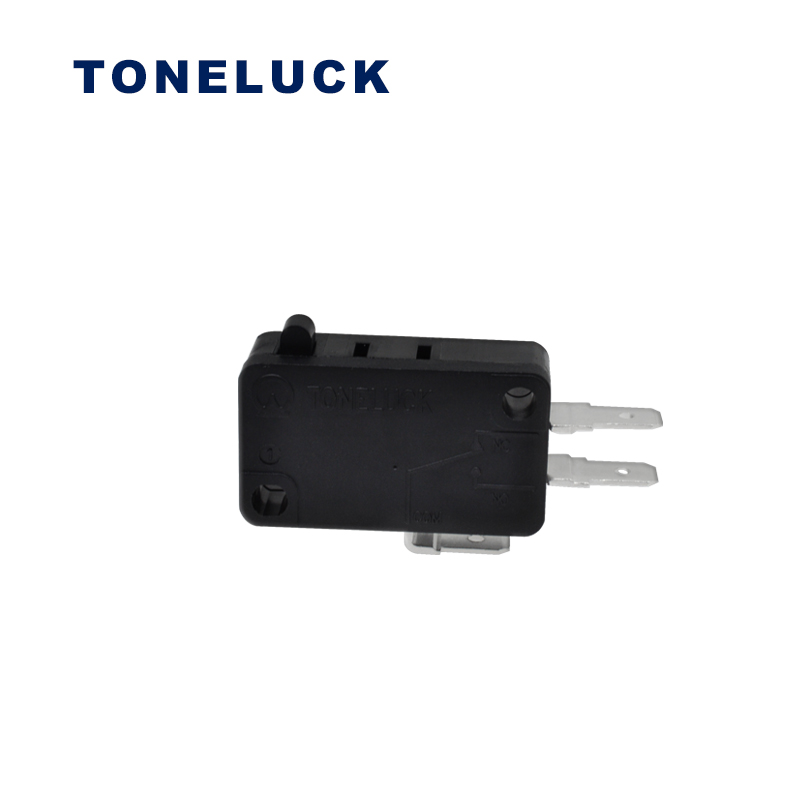

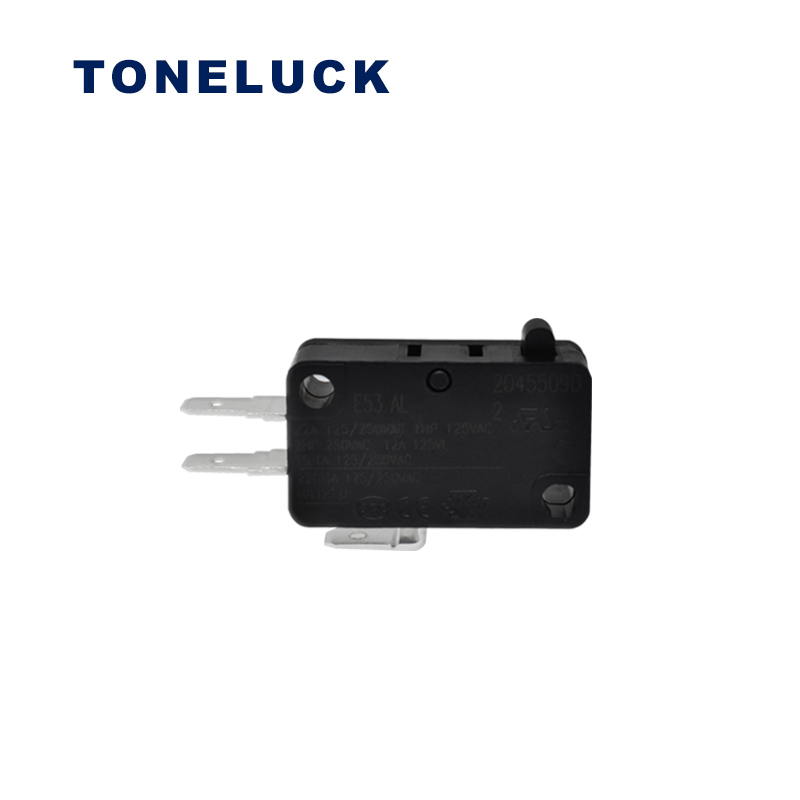

Microwave Microswitch E53AL-BN00AG-01 Microwave Microswitch E53AL-BN00AG-01
Microwave Microswitch E53AL-BN00AG-01 Microwave Microswitch E53AL-BN00AG-01

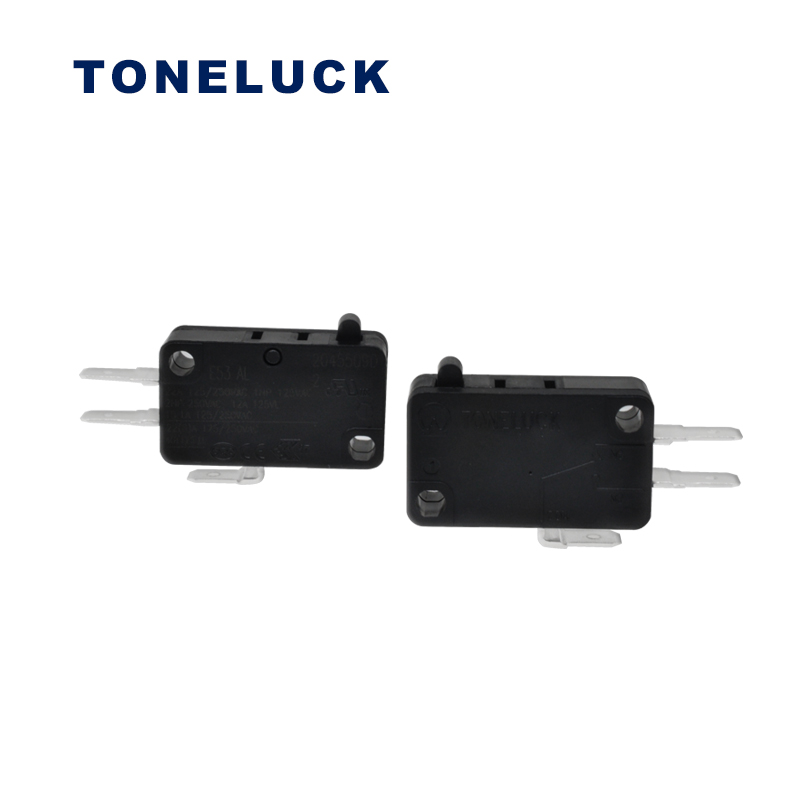

microwave microswitch microwave microswitch
microwave microswitch microwave microswitch

Short Description

The item is a microwave microswitch and also can use in some other hold appliances.

  • E Micro ON OFF Switch

  • Product name: E53AL-BN00AG-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The item is a microwave microswitch and also can use in some other hold appliances. And the E53AL-BN00AG-01 can work in -40 to 150℃, the rating is 15A 125/250VAC with 100,000 cycles life with the UL, ENEC, CQC certification. So this item is a long-life snap action switch. Meanwhile, the current code is SPDT, if your microwave design needs the SPST-NO or NC, also can contact us the get them. Because both of them are available from us.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
