Microswitch NC2 NO3 COM1 Details Description
The micro switch NC2 NO3 COM1 means the circuit configuration sequence, which is the regular type. So, most of the micro switches on the market belong to this type. However, we also have the NC3 NO2 COM1 switches for your options. If you don’t understand, please check the drawing in the pictures for this listing.

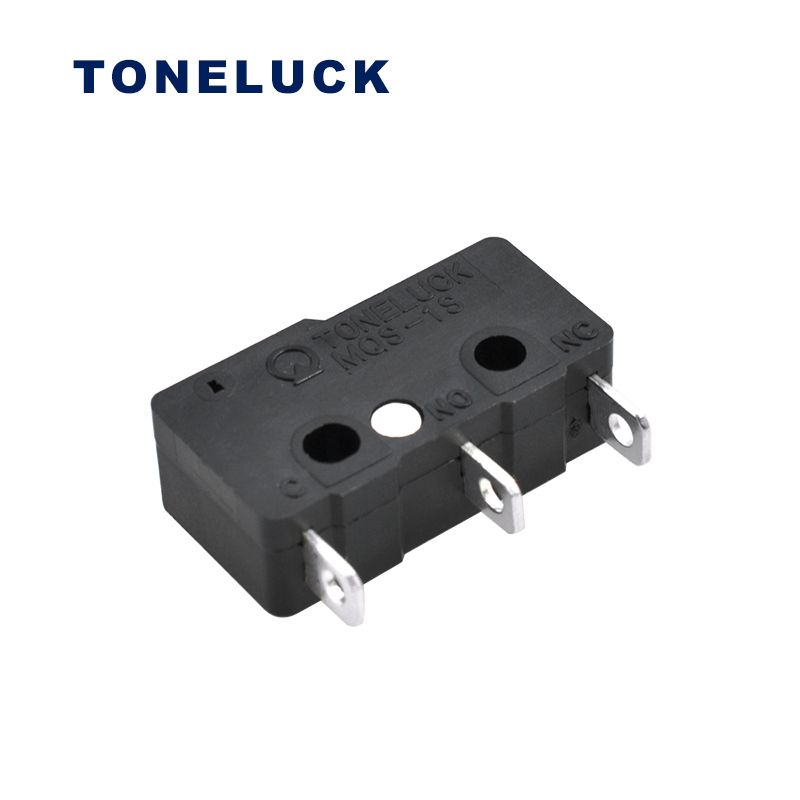

MQS-1SAAF100-S07 is a model that can meet the requirement of NC2 NO3 COM1, it is SPDT type, which rating is “3A 5A 125VAC/250VAC”. If you connect the COM with the middle terminals, the function of this switch is OFF-(ON), if connect with the terminal at the end, the function is ON-(OFF).
Meanwhile, this series also have ENEC, CQC, and UL safety certifications for the global market. As well as the shell material has the UL94V-0 fire-proof material.
Micorswitch Specification
| Electrical Rating | MQS-1CAF300-S01 |
| Operating Temp | -40℃ to +85℃ (40T85) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 160±30gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
