Micro Temperature Switch Short Description

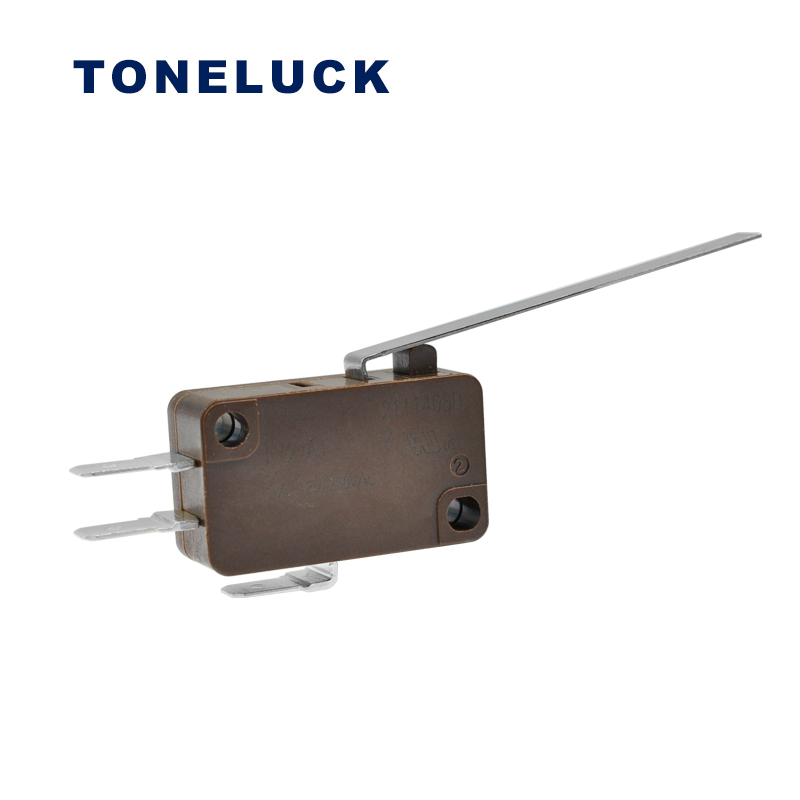

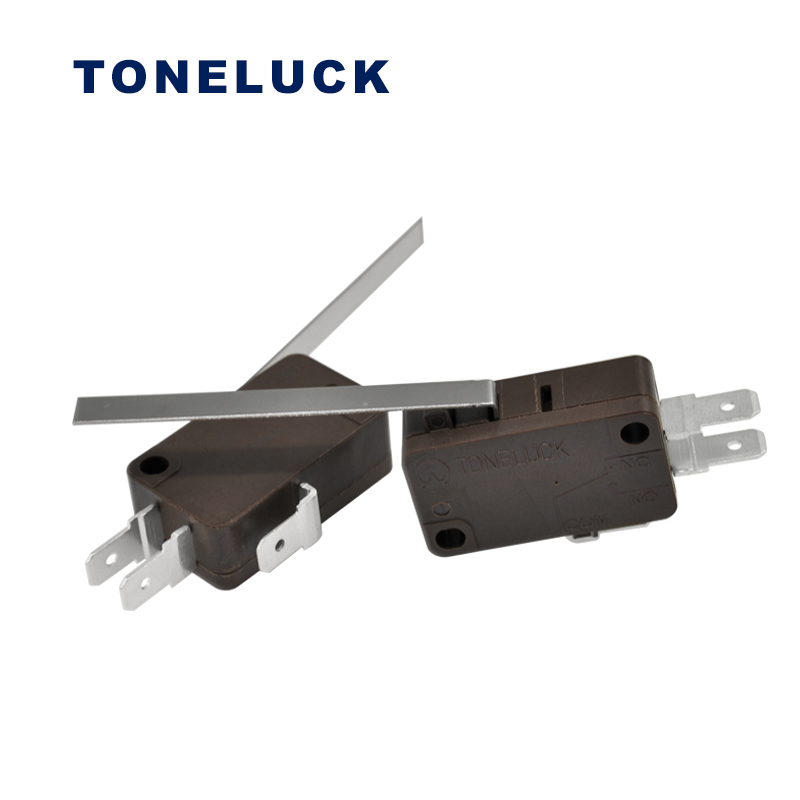

L72AJ-BB23A1-01 micro temperature switch is used by a heat-resisting material that can work at 200℃. And it not only has the UL certification but also has a long mechanical life that is 1,000,000 cycles min.

  • L Snap Action Micro Switch

  • Product name: L72AJ-BB23A1-01

  • Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

High Temperature Micro Switch Details Description

The L72AJ-BB23A1-01 micro temperature switch is used by a heat-resisting material that can work at 200℃.  So, if you need a high-temperature microswitch, you can choose this model. For example, some kinds of aquarium pumps will need a high-temperature type switch. Meanwhile, it not only has the UL certification but also has a long mechanical life that is 1,000,000 cycles min.

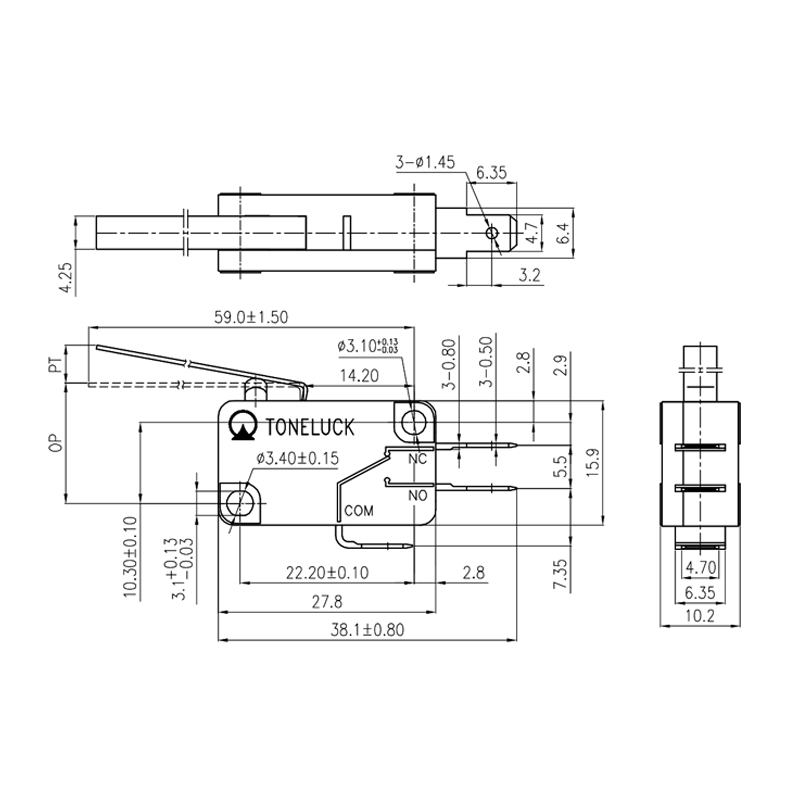

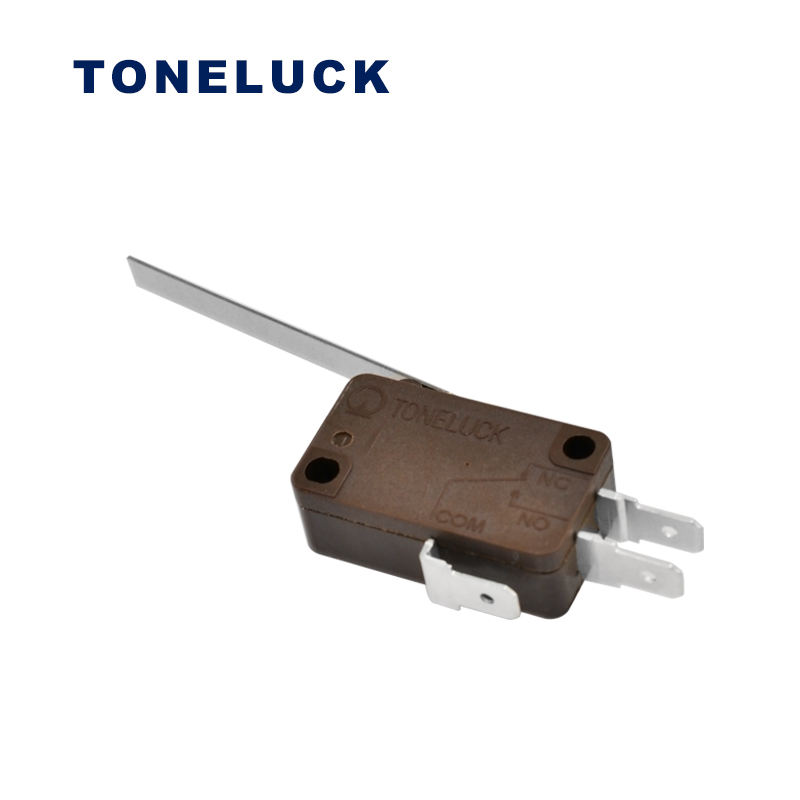

Besides, this model is the SPDT type with a straight lever, it also has many kinds of parameters for customer options. For more details about the switch, please feel free to let us know.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
