Project Description

E42AM-BA19AG-01 E42AM-BA19AG-01
E42AM-BA19AG-01 E42AM-BA19AG-01
E42AM-BA19AG-01 E42AM-BA19AG-01
micro lever switch micro lever switch
micro lever switch micro lever switch

Short Description

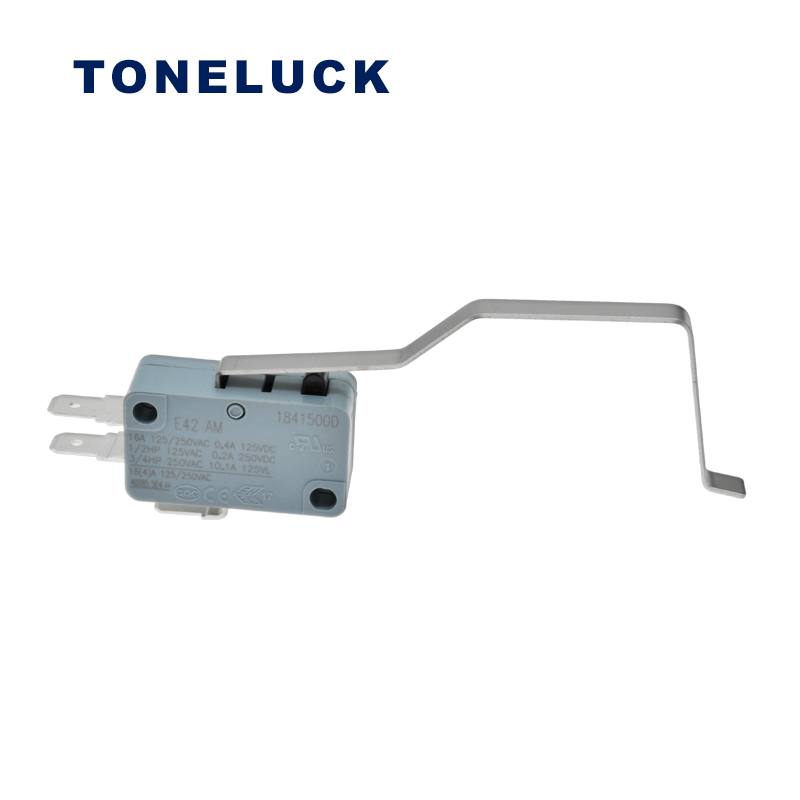

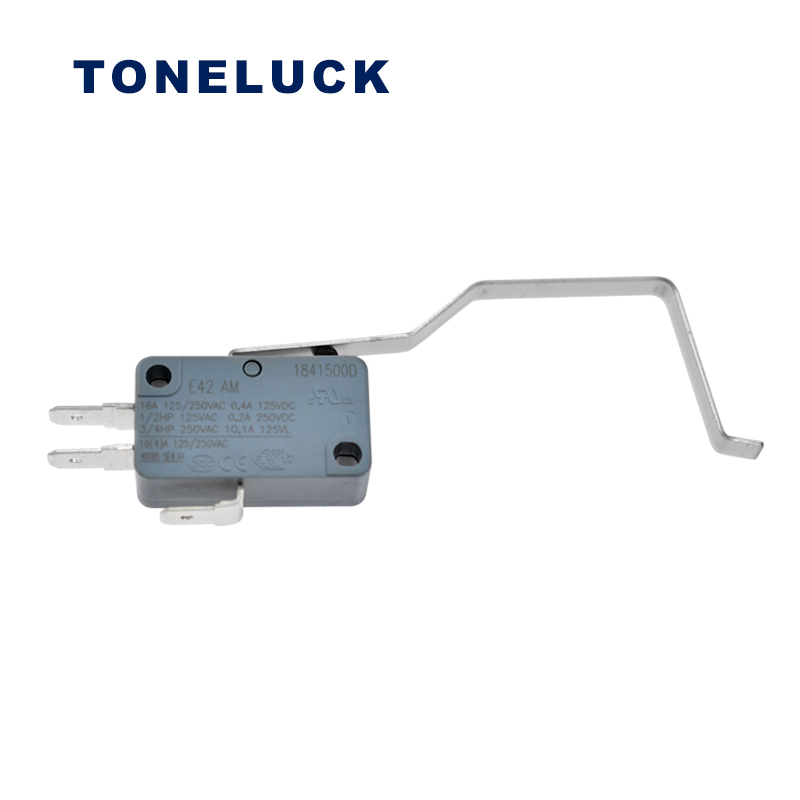

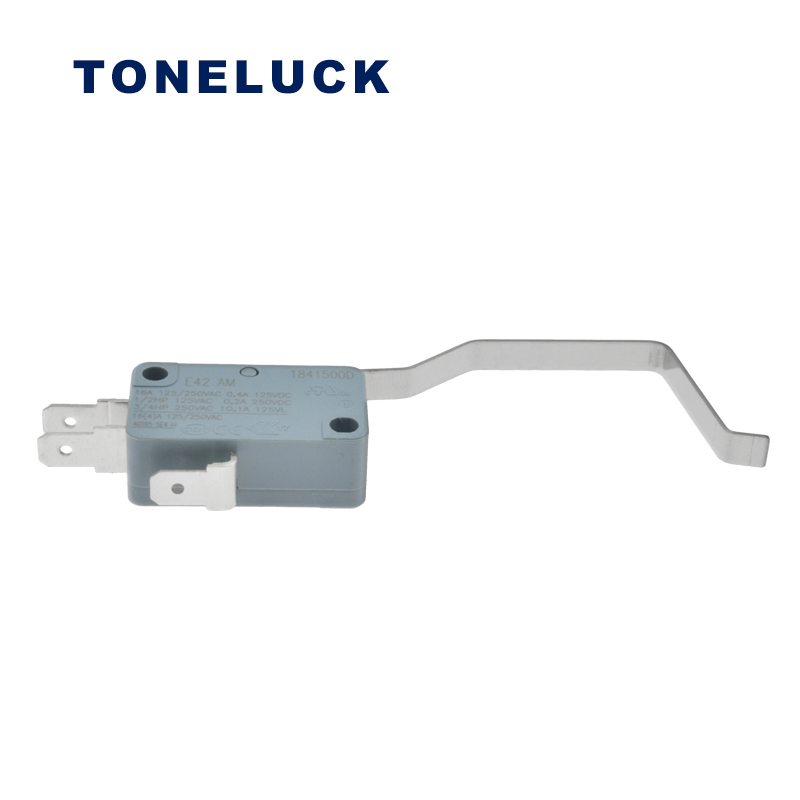

E series E42AM-BA19AG-01 micro lever switch with 3 solder terminal SPDT circuit no matter normally close or normally open which can be suitable you. Meanwhile, the model with a special long lever so that you can use it in some special design.

  • E Micro ON OFF Switch

  • Product name: E42AM-BA19AG-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

E series E42AM-BA19AG-01 lever snap action switch with 3 solder terminal SPDT circuit no matter normally close or normally open which can be suitable for you. Meanwhile, the model with a special long lever so that you can use it in some special design. Besides, if you have any requirements on your side, please feel free to let me know, the 40T85,  40T125, 40T150, and T200 working temperature are available. And different models with different parameters also can provide for you. This model has UL, UL858, ENEC, CQC certification, if you need on production, please feel free to let us know.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
