Short Description

The PBN-4-15T-0056 is a ganged pushbutton assemblies METER switch for audio or power amplifier, generally it will be used with RQTIO switch.

  • Product name: PBN-4-15T-0056

  • Product applications: Audio, Amplifier

SEND EMAIL TO US
DOWNLOAD AS PDF

METER Switch Details Description

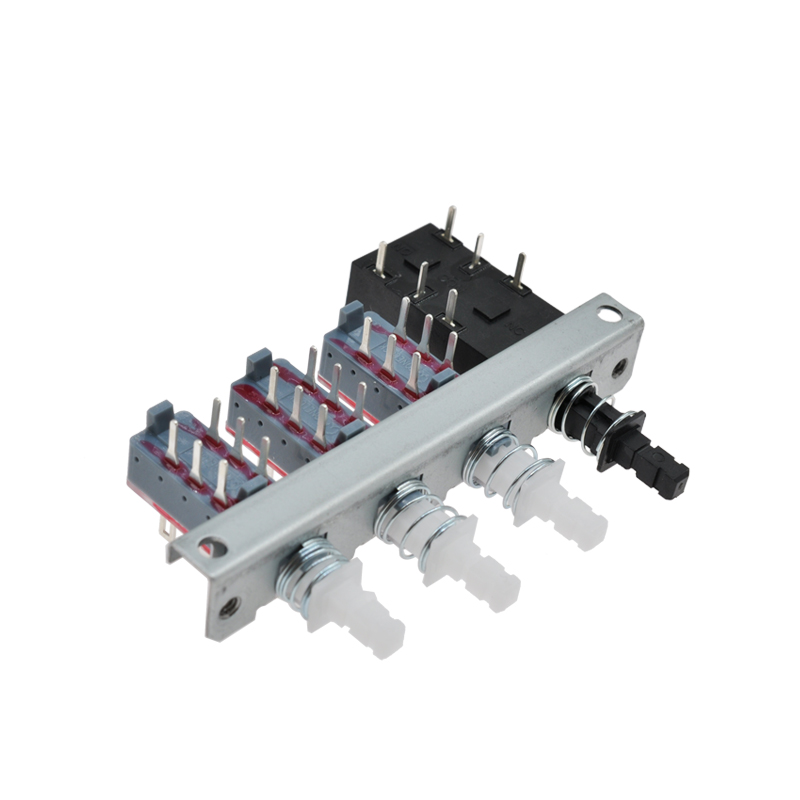

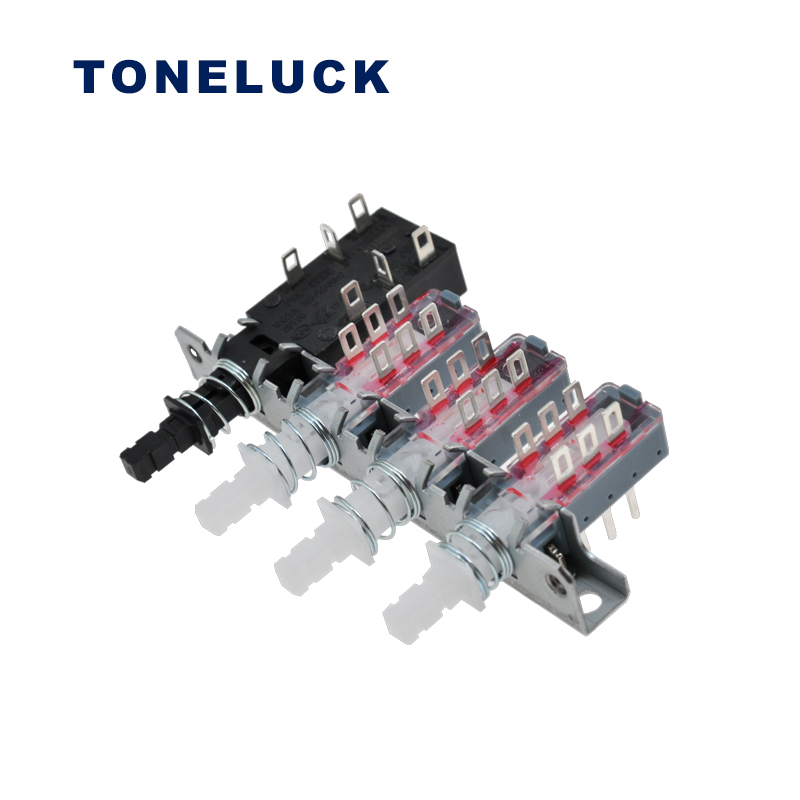

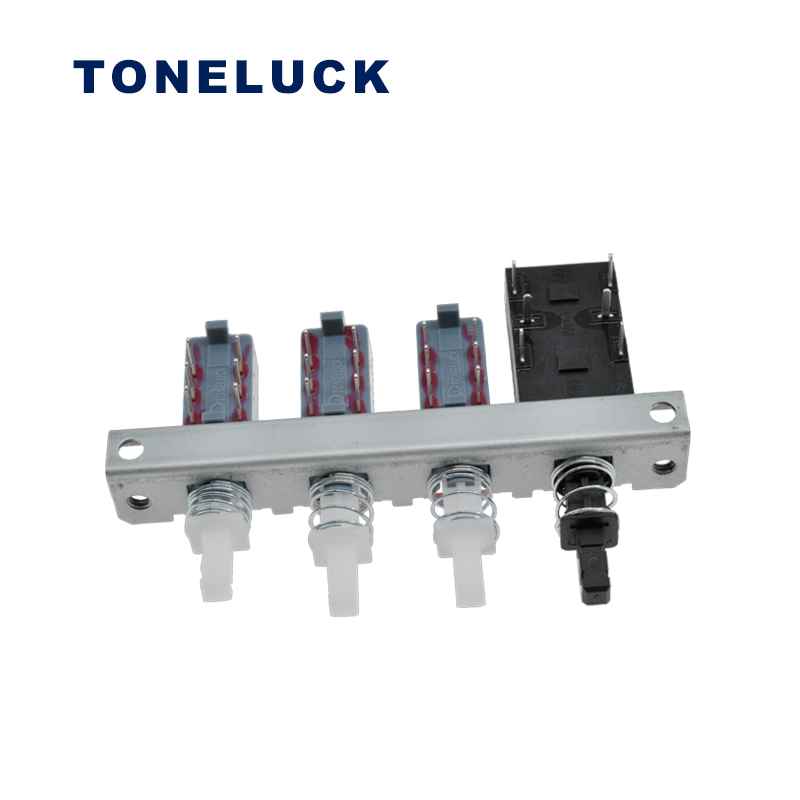

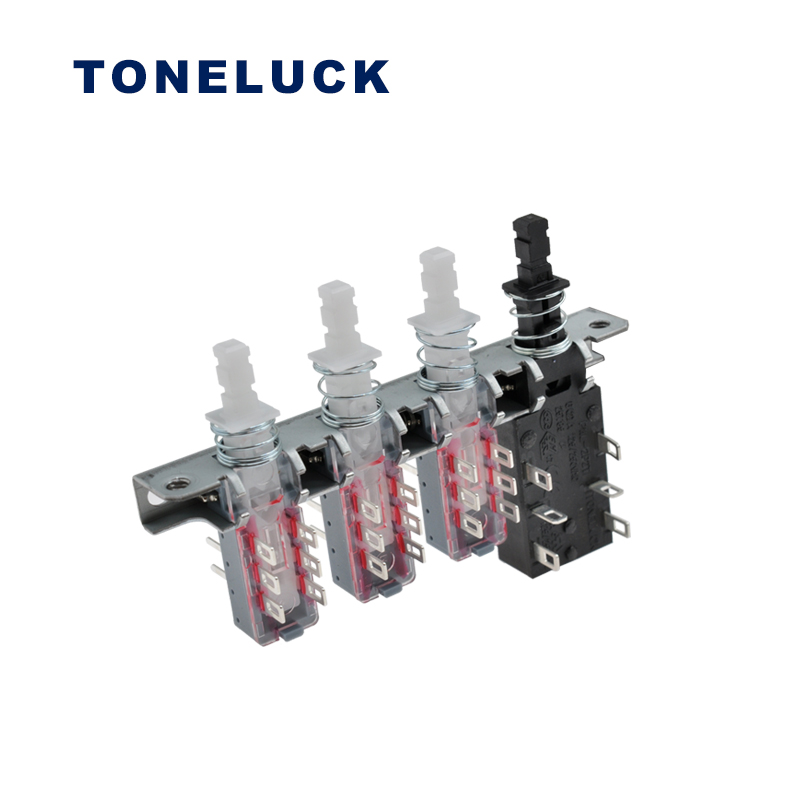

The PBN-4-15T-0056 is a ganged pushbutton assemblies METER switch for audio or power amplifier, generally, it will be used with the RQTIO switch bank assembly. Which is for FET compressors and it supports “all buttons in” mode. Meanwhile, this model has 3 PBN Tonluck push button switches and 1 PWL power switch with PCB terminal. Buyer also can choose the different mounting hole size to install.

Besides, the switch has the certificate of UL.cUL, ENEC, CQC. If you need them, please send us an inquiry to contact us. Thank you very much.

Specification

Model No. PBN-4-15T-0056
Operating Temperature(The Small One) -25℃ to +85℃
Rating(The Small One) 6A 125/250VAC (UL.cUL, ENEC, CQC)
Electrical Life(The Small One) 10,000 cycles Min.
Insulation Resistance(The Small One) 100ΩM Min.
Dielectric Strength(The Small One) 1500VAC
Operation Force (OF)(The Small One) 560gf±150gf
Pre-Travel (PT)(The Small One) 3±0.5mm
Operating Temperature -10℃ to +60℃
Rating 0.1A/30VDC 10,000cycles Min. OR 1A/25VDC 5,000cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC
Operation Force (OF) 400±100gf
Pre-Travel (PT) 4.8±0.5mm
