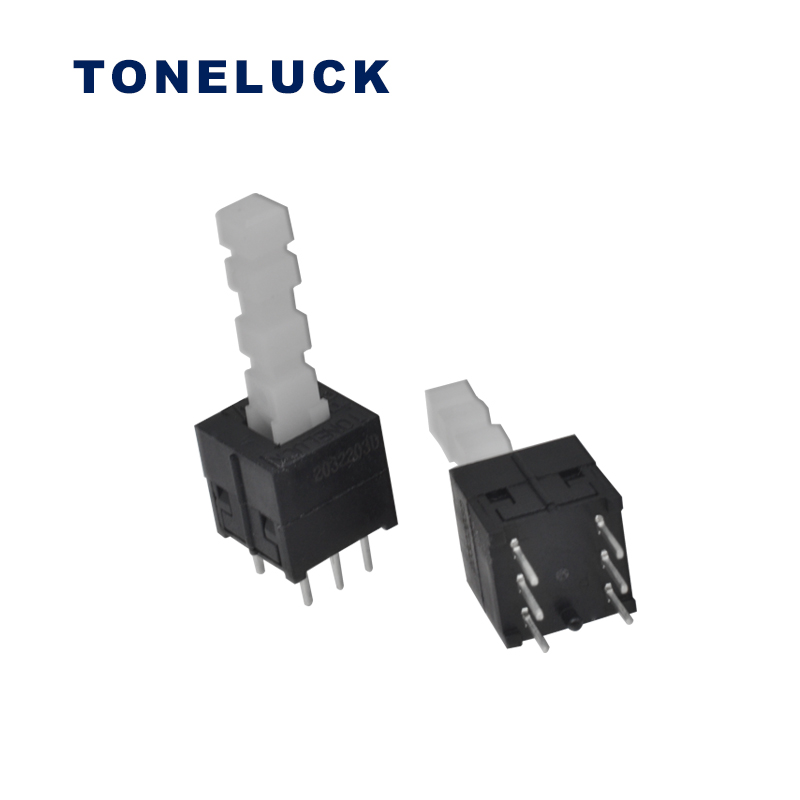

LTV-85 Self Lock Push Button Switch
Toneluck LTV-85 latching type push button switch that has 2 poles 2 throw circuitry and 6 pin PCB terminals. Meanwhile, the shell uses UL94 V-0 fire-rating material, which can reduce the fire happens.
LTV Push Button Switches
Product name: LTV-85SN5.7-BN.A103
Product applications: Precision instruments, industrial equipment, household appliances, etc.
Latching Type Push Button Switch Description
Toneluck LTV-85SN5.7-BN.A103 is a latching type push button switch, which is also called a self-lock push button switch. It means it will hold in the circuit state when you push it to the operating position. And you need to push it again to release. This latching type push button switch has 2 poles 2 throw circuitry and 6 pin PCB terminals. You can install it on the PCB and control 2 circuits in the applied device.
Meanwhile, the shell uses UL94 V-0 fire-rating material, which can reduce the fire that happens.
The rating is “0.10A 30VDC 100,000 cycles & 1.00A 13VDC 20,000 cycles” so it can be used for the automotive or electric power tool no matter in 12VDC or 24VDC.
LTV-85SN5.7-BN.A103 Latching Type Push Button Switch Video Display
LTV-85SN5.7-BN.A103 Button Switch Specification
| Electrical Rating | 0.10A 30VDC 100,000 cycles; 1.00A 13VDC 20,000 cycles |
| Operating Temp | -40℃ to +85℃ |
| Insulation Resistance | 100ΩM Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Operating Force | 240gf±50gf |
| Travel | 1.5±0.3mm |
| Total Travel | 2.5±0.3mm |
| Function | Self-lock (The momentary is available for options) |
| Housing: | UL94 V-0 Thermoplastic |
