Short Description

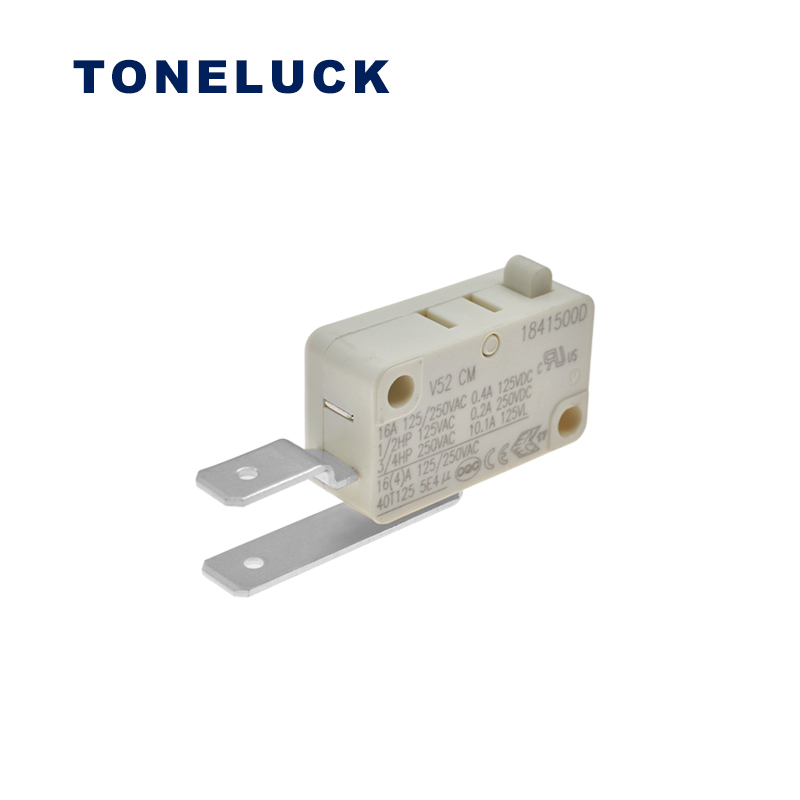

Electronic Micro Switch Normally Open NO 125V 250V 16A 40T125

  • V5 Electronic Micro Switch

  • Product name: V52CM-15N00AG-01

  • Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Electronic Micro Switch Normally Open NO 125V 250V 16A 40T125

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
