Short Description

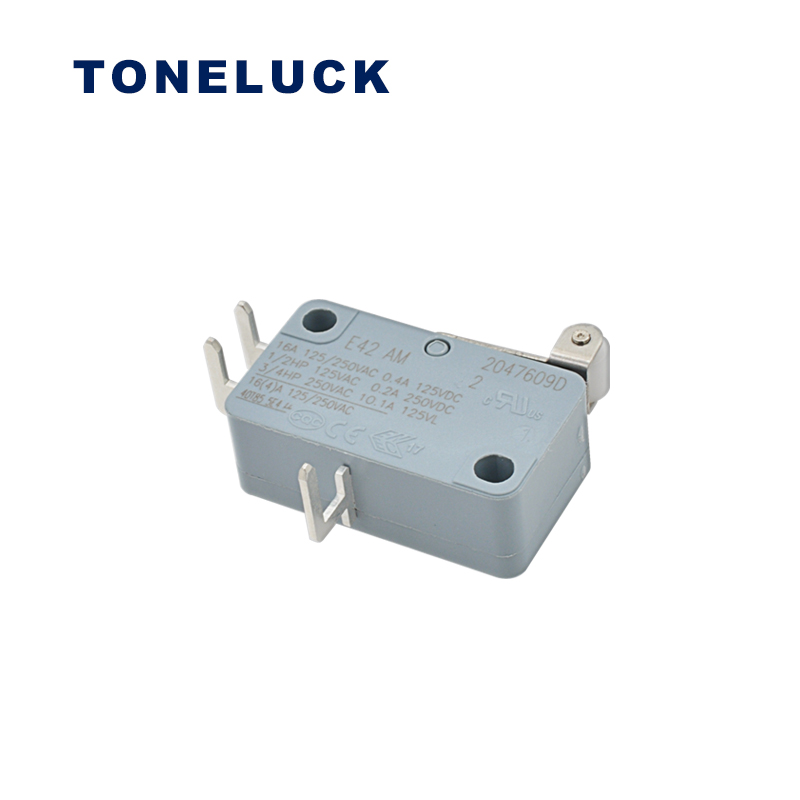

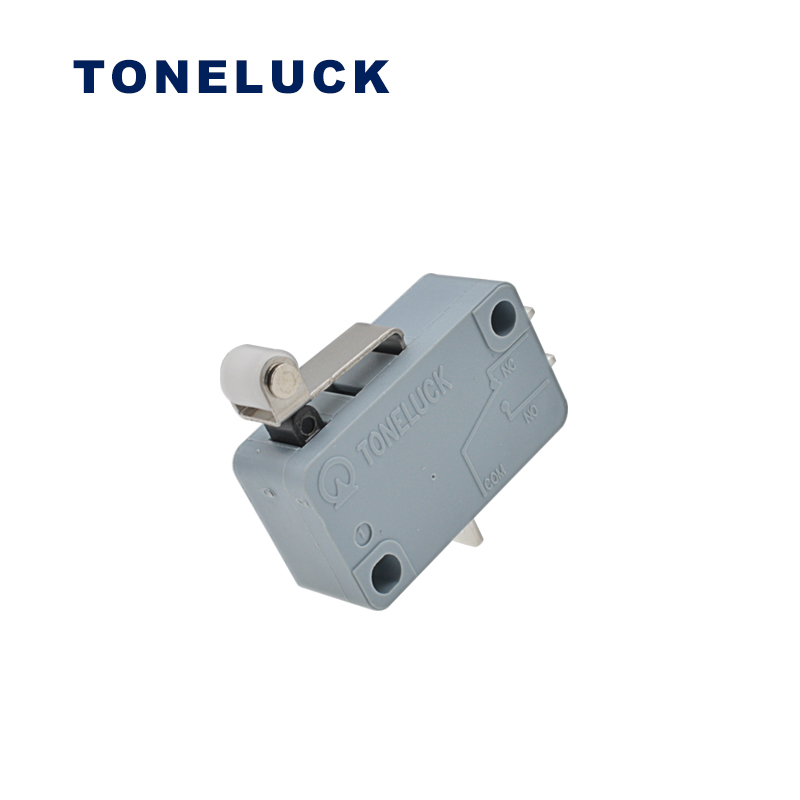

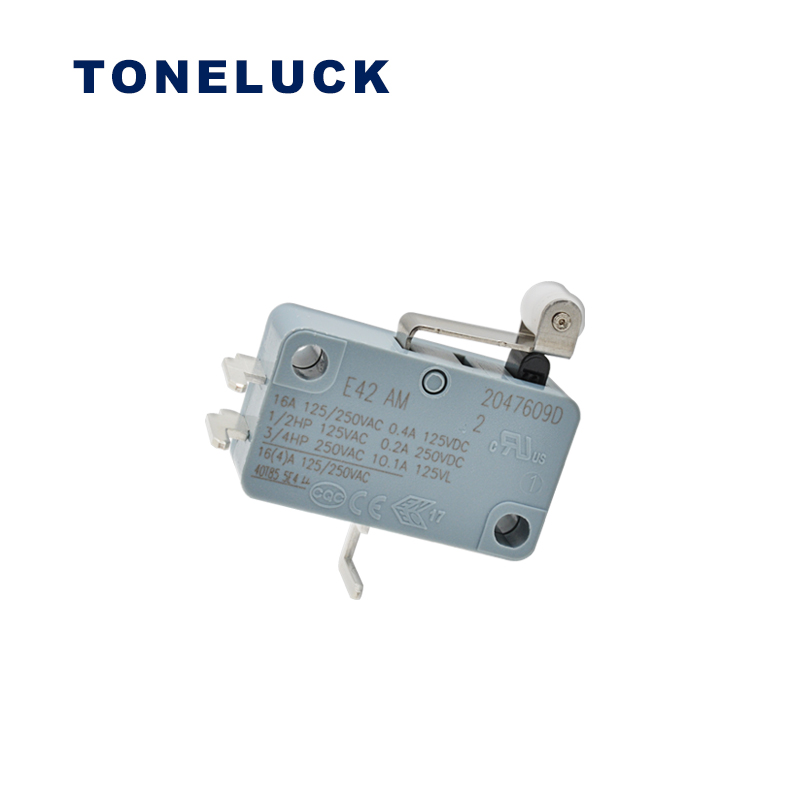

The model is the PCB terminal electric micro switches with a roller lever and which has the ENEC, VDE, UL, cUL, CSA, CQC certification.

  • E Micro ON OFF Switch

  • Product name: E42AM-PA57AG-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The model is the PCB terminal SPDT micro switches with a roller lever. Meanwhile, this item also has the ENEC, VDE, UL, cUL, CSA, CQC certifications to make sure it can be used all over the world. So, if you have any requirements on product quality, we are who you looking for.

E42AM-PA57AG-01 is certificated in the 40T85, 0.1A 125/250 VAC electrical rating to do the test report, but for the electrical which is a minimum cycles number. Generally, the electrical will be longer than the certificated one.

Besides, if you need other parameters of the switch, such as the lever types, switch size, operating force, etc. welcome to contact us and we will send the information for your  reference.

Specification

Model No. E42AM-PA57AG-01
Operating Temperature -40℃ to +85℃
Rating 16A 125/250VAC

0.4A 125VDC;0.2A 250VDC;10.1A 125VL

16(4)A 125/250VAC

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 80±20gf
Release Force (RP) 50gf Min.
Pre-Travel (PT) 1.5mm Max.
Over- Travel (OT) 1mm Min.
Movement-Differential (DT) 0.5mm Max.
Operation Position (OP) 20.7±0.8 mm
