DPDT Latching Push Button Switch
Toneluck PBN DPDT latching push button switch has a wide working temperature range which is from -10ºC to 60ºC and the rating is 0.1A 30VDC 10,000 cycles & 1.0A 25VDC 5,000 cycles.
Product Item: PBN-A07-003
Product applications: Audio devices, machinery control console, signal appliance, and so on.
DPDT Latching Push Button Switch Description
PBN-A07-003 is a DPDT latching push button switch that has 6 PCB pin terminals and a round keycap. Generally, it can be used in many kinds of audio devices, like the sound limiter. Meanwhile, it also has a wide working temperature range which is from -10ºC to 60ºC and the rating is 0.1A 30VDC 10,000 cycles & 1.0A 25VDC 5,000 cycles. The function of this model is self-lock, and the momentary function is also available to us.
Besides, we also can provide the switches assembly as well. You can choose the quantity and bracket. For example, you can choose a 4 gang with a T bracket or a 3 gang switch with H bracket. Welcome to go to our push button switch page to see more.

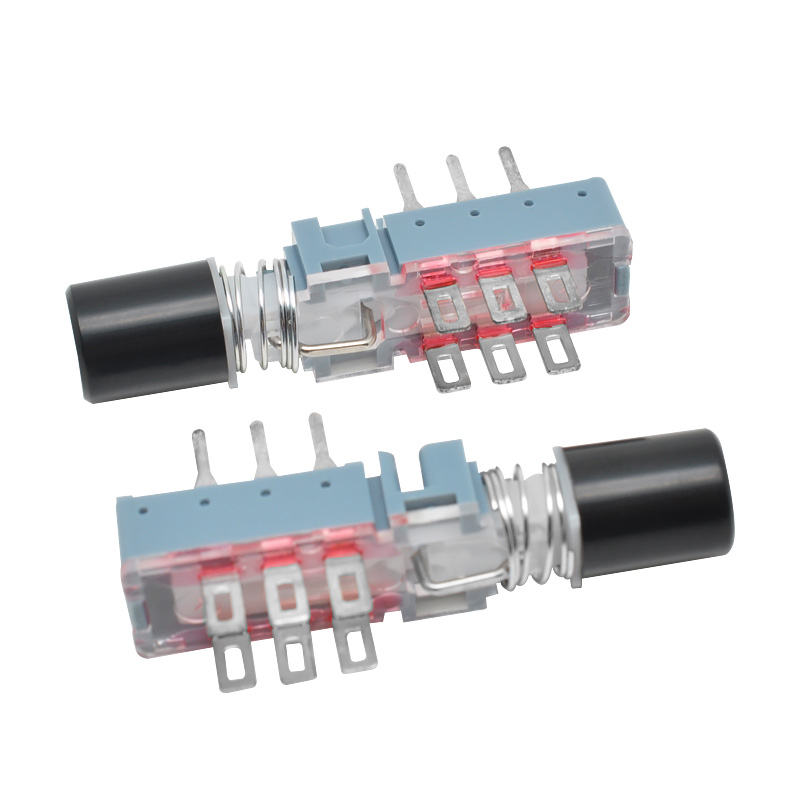

PBN-A07-003 Push Button Switch Display
For more switch vides, welcome to see our channel
PBN-A07-003 DPDT Self Lock Push Button Switch Specification
| Electrical Rating | 0.1A 30VDC 10,000 cycles & 1.0A 25VDC 5,000 cycles |
| Operating Temp | -10℃ to +60℃ |
| Travel-to-Lock | 3.5mm |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 350±100gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic |
