Details Description

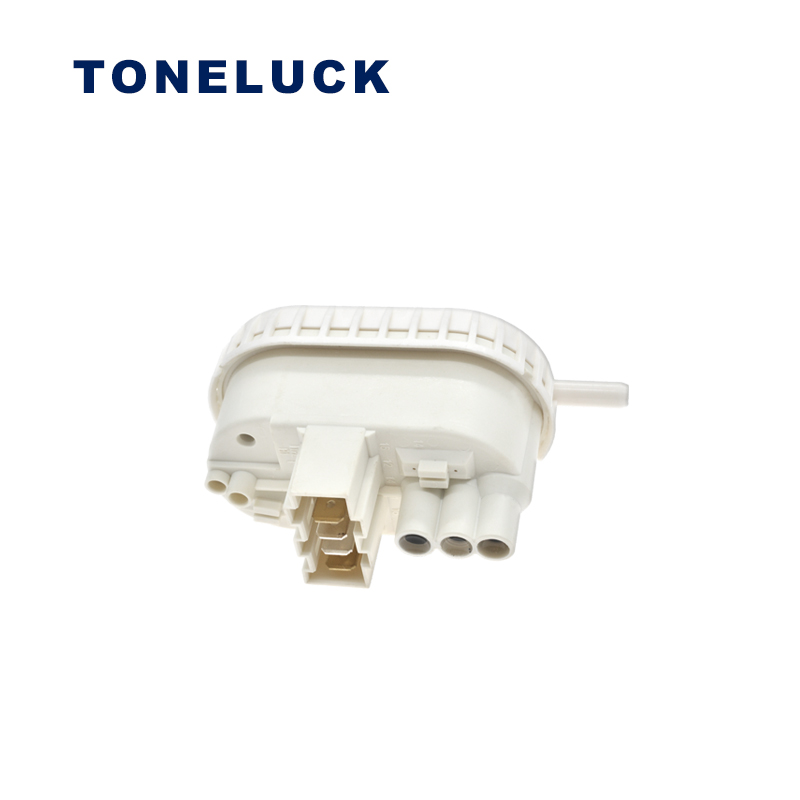

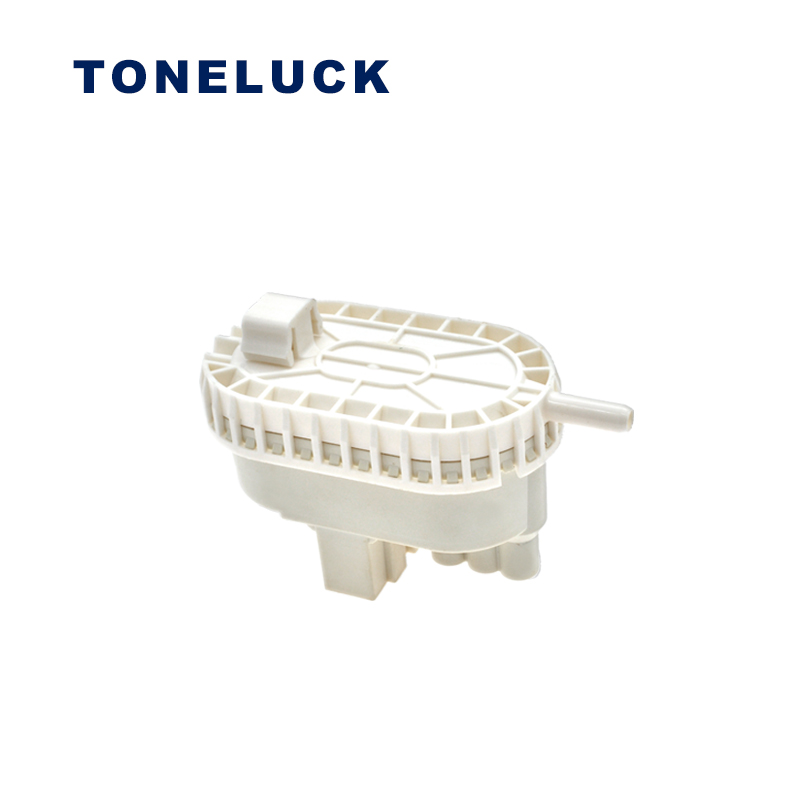

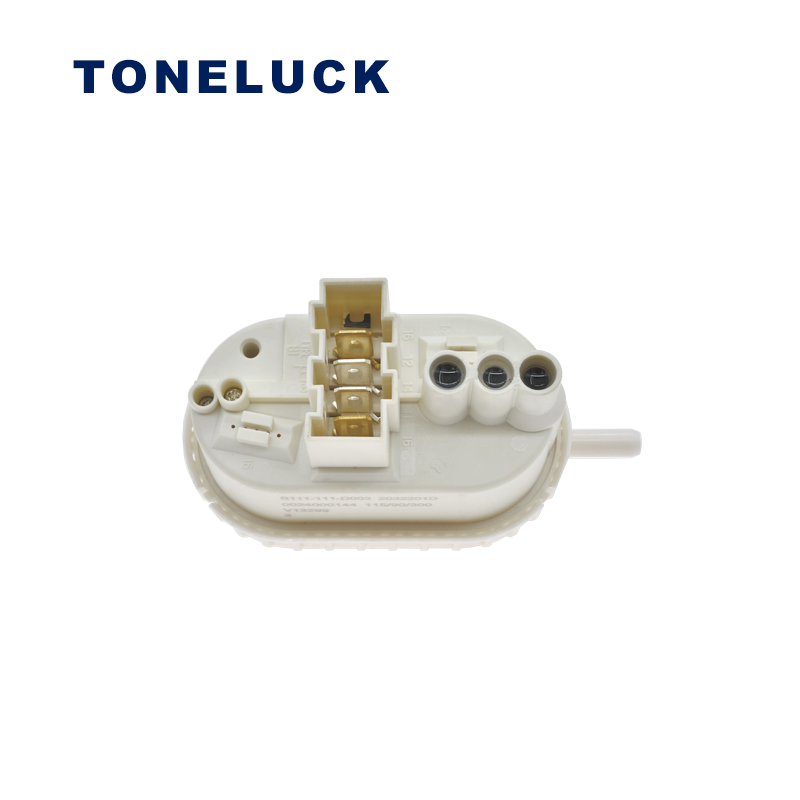

Dishwasher Pressure Switch Water Level IEC760 for Whirlpool
Specification
| Model No. | B111-111-D003 |
| Operation Pressure Range | 0 to 500mm W.C. (0 to 4.9KPa) |
| Terminals | 0.5mm×8mm (N2420-4202) |
| Pressure Changing Speed | 0 to 2mm/s (0 to 19.3 Pa) |
| Pressure Resistance | 1000 mm W.C. (9.8KPa) |
| Max Current | 35mA |
| Voltage | DC5±0.1V |
| Temperature | -10℃ to 60℃ (altitude ≤2500m) |
| Electrical Cycles | 5000cycles |
