Short Description

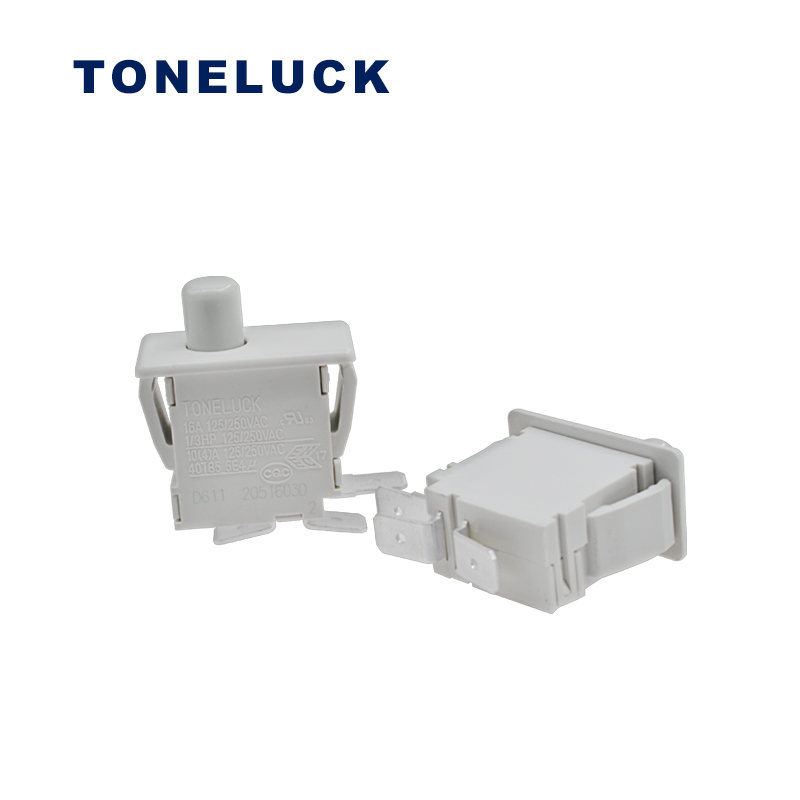

Clothes Dryer Door Switch SPDT 16GPA 600gf 40T85

  • D6 Door Switch for Dryer

  • Product name: D611M-AA1-01

  • Product applications: Smart home appliances such as washing machines, refrigerators, dishwashers, air conditioners and so on.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Clothes Dryer Door Switch SPDT 16GPA 600gf 40T85

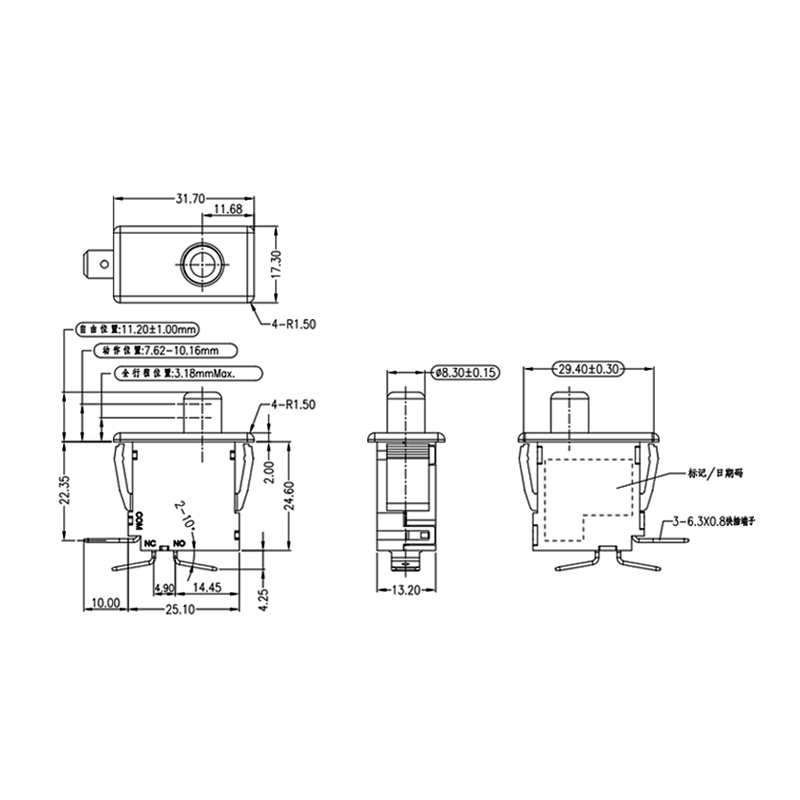

Specification

Model No. D611M-AA1-01
Total Operation Force (TOP) 850gf Max
Total Travel Position (TTP) 2.5mm Max
Free Position 19.7±1.00mm
Travel 1 0.4mm Max
Travel 2 0.75mm Max
Travel 3 3.95mm Max
Rating 2A 125/250 VAC
Electrical Cycles 100000cycles (UL1054)
Mechanical Cycles 200000cycles
Temperature -25℃ to 200℃
Contact Sliver
