Short Description

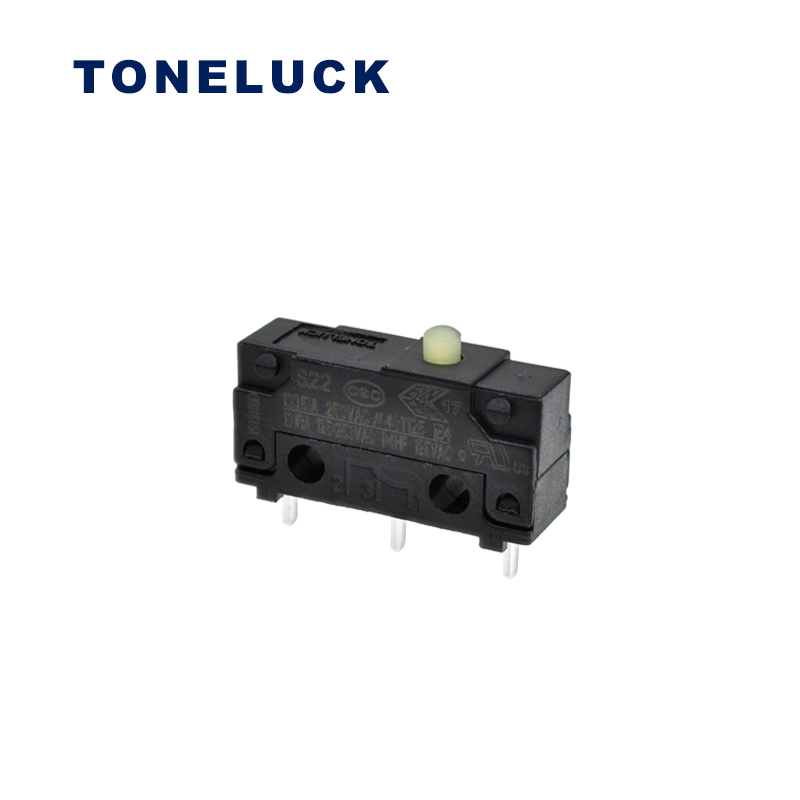

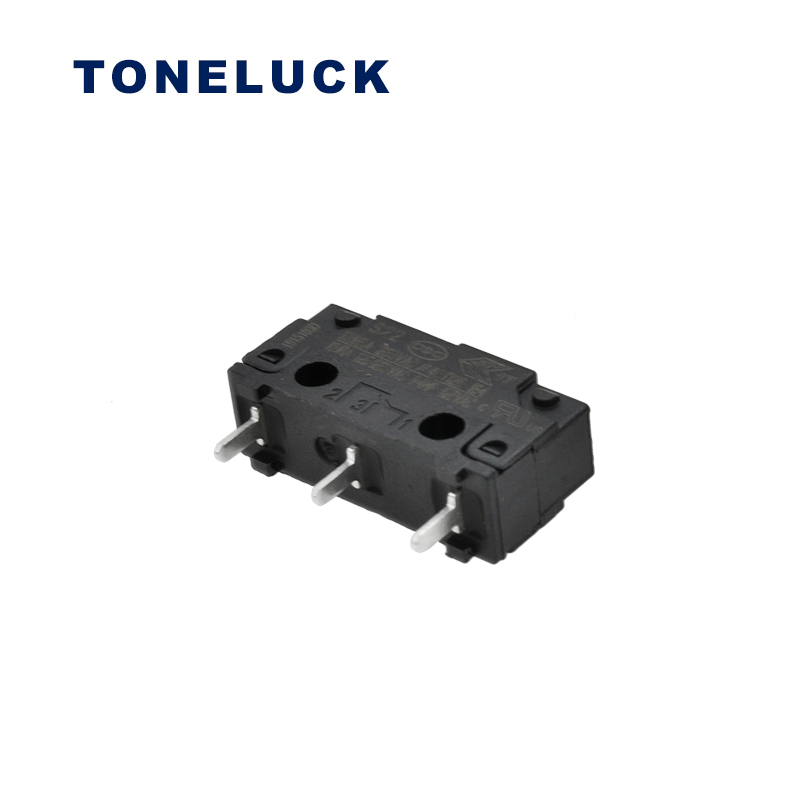

Toneluck S22AP00-D01 is a 40t125 microswitch with 3 position SPDT PCB terminals, and UL&ENEC certification of 10A 250VAC 125V, 50E4 cycles.

  • S22 Small Micro Switch

  • Product name: S22AP00-D01

  • Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US

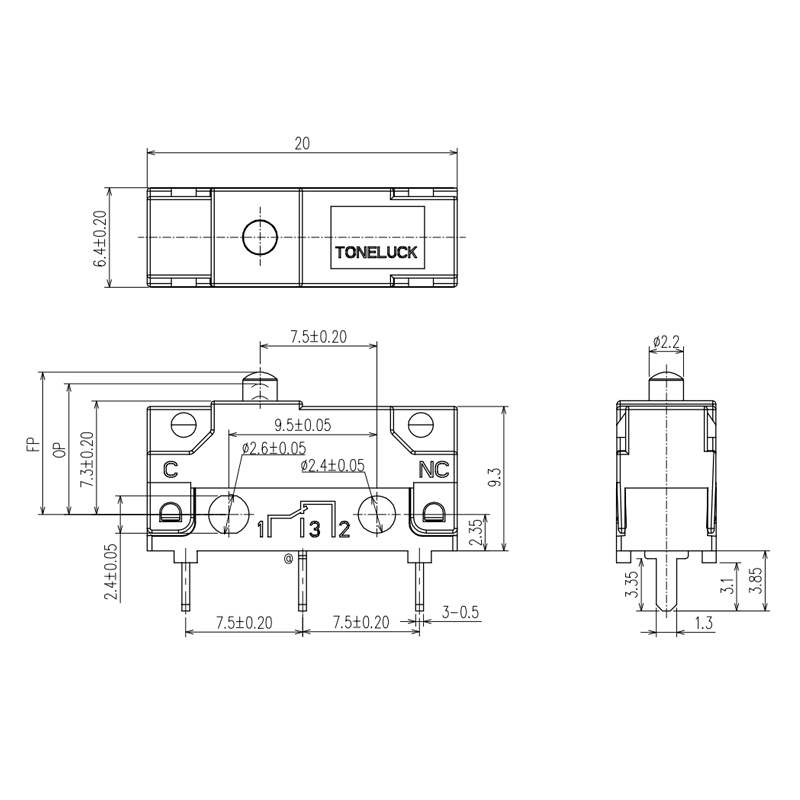

DOWNLOAD DIAGRAM

Details Description

Toneluck S22AP00-D01 is a 40t125 microswitch with 3 position SPDT PCB terminals, and UL&ENEC certification of 10A 250VAC 125V, 50E4 cycles mechanical cycles. Meanwhile, the length is 20mm, the OP is 250gf Max. and RF is 50gf Min. but if you need other of them, we have a lot of options for the S22 series.

Besides, for the circuit, the S22 snap action switch also has SPDT, SPST Normally Closed, and SPST Normally Open for choice. So, the buyer can according to their requirement to choose a model they want.

Specification

Model No. S22AP00-D01
Operating Temperature -40℃ to +125℃
Rating 10.1RA 250AC;1/4HP 125VAC (UL, cUL) 6000 cycles Min.

10(1.5)A 250VAC (ENEC, CQC)  10000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100MΩ Min.
Dielectric Strength 500VAC (50~60HZ)
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 250 gf Max.
Release Force (RP) 50 gf Min.
Pre-Travel (PT) 1 mm Max.
Movement-Differential (DT) 0.3 mm Max.
Operation Position (OP) 8.4±0.3 mm
Free Position(FP) 9.3mm Max.
