Short Description

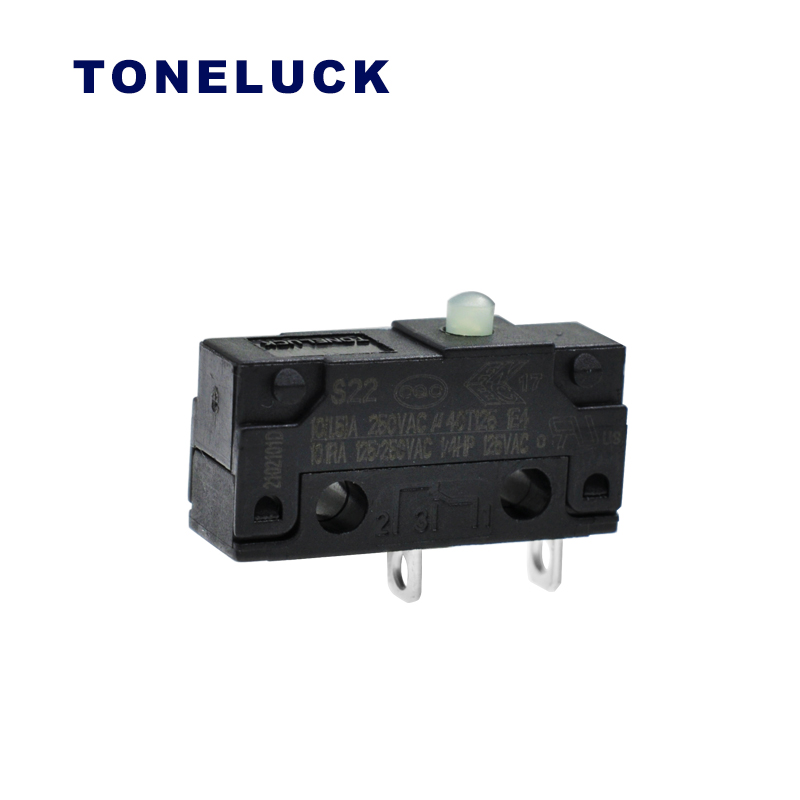

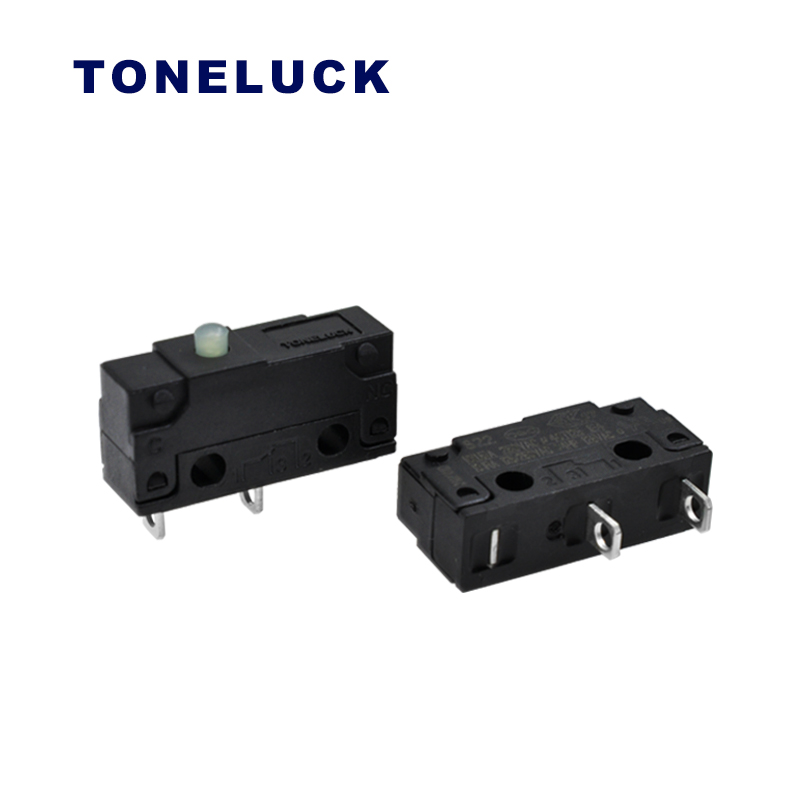

S22CS00-S03 is a 2 pin plug microswitch with a single pole and single throw normally open function. The 10A 250VAC 4HP 1250VAC with 6000cycles is UL certified rating while 10000 cycles are the ENEC and CQC rating.

  • S22 Small Micro Switch

  • Product name: S22CS00-S03

  • Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

S22CS00-S03 is a 2 pin plug microswitch with a single pole and single throw normally open function. The 10A 250VAC 4HP 1250VAC with 6000cycles is UL certified rating while 10000 cycles are the ENEC and CQC rating.

The working temperature is from 40T125 (-40 to 125℃ ) so that the switch can use in most temperature situations. Besides, the S22 series is perfect to replace for the BURGESS V4NC series, Cherry DB2 series micro switch.  On the other hand, Toneluck switch was founded in 1976 in HK and now we become a group company. We are good at product quality control and also approved by customers from all over the work.

Specification

Electrical Rating 10A 250VAC 125VAC
Operating Temp -40℃ to +125℃
Mechanical Life 500,000 cycles Min.
Electrical Life 6,000 cycles Min. (UL, CUL), 10,000 cycles Min. (ENEC, CQC)
Contact Resistance 50mΩ Max. (initial)
Operating Force 250gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
