PBN 18 Pin Mechanical Push Button Switch

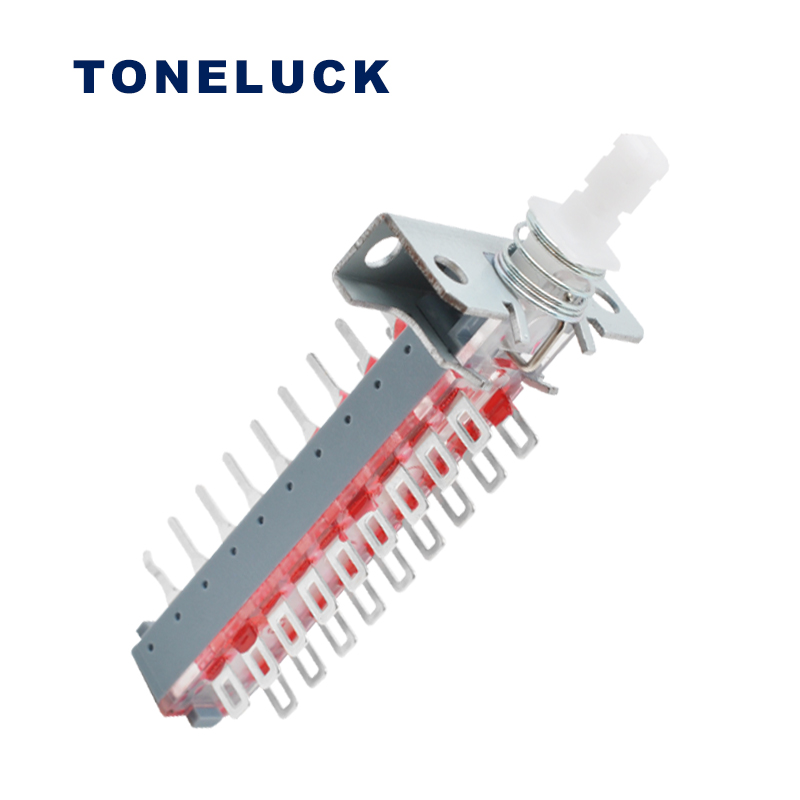

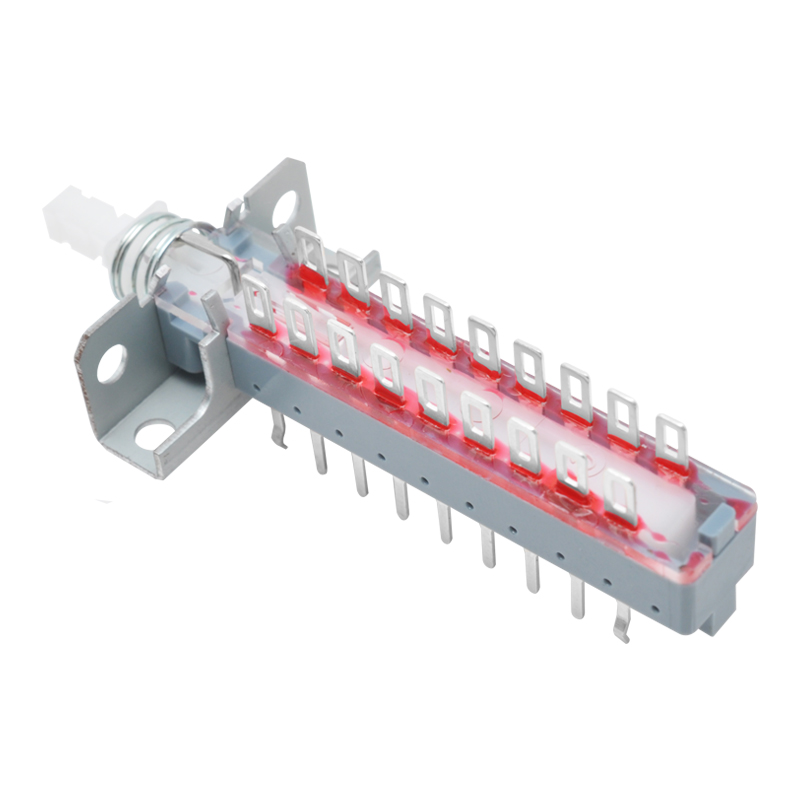

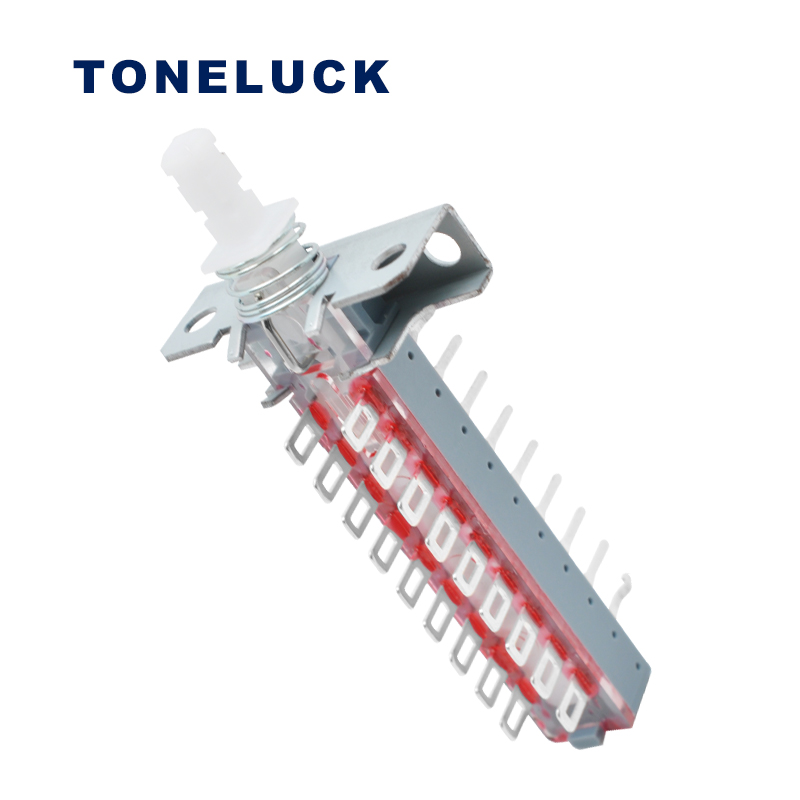

The 18 pin push switch is the self-lock type with 6 pole circuits, 18 PCB terminals, and a metal bracket. 500VAC for 60 +/- 5 sec for dielectric strength.

  • PBN series push button switch

  • Product Model: PBN-S6A35H-BAG

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

18 Pin Push Switch Description

The PBN-S6A35H-BAG 18-pin push switch is the self-lock type with 6 pole circuits, which have 18 pcs of PCB terminals, and a metal bracket. It can install in the circuit board to control the devices like the audio, sound limiter, and so on. The shell material is the UL94 HB, which is a kind of fireproof material. And the UL94 V-0 material is also available for your options. Please tell us when you contact us. Meanwhile, the PBN switches also have a wide working range from -10 to 60℃.

Meanwhile, the dielectric strength for this 18 pin push switch is 500VAC for 60 +/- 5 sec, its rating is “0.1A 30VDC 10,000 cycles & 1.0A 25VDC 5,000 cycles”. Besides, the PBN series not only has the 18-pin type but also has the 12-pin and 6-pin push button switches for your options. If you don’t need the bracket, we also have a single switch to choose from. For more PBN button switches, welcome to check the link to see.

PBN-S6A35H-BAG Push Button Switch Video Display

6 Pole Button Switch Specification

Model PBN-S6A35H-BAG 18 Pin Push Switch
Electrical Rating 0.1A 30VDC 10,000 cycles & 1.0A 25VDC 5,000 cycles
Operating Temp -10 to 60℃
Keycap BF series & BC series
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (UL94 V-0 is optional)
