Short Description
Specializing in the production of car trunk locks with resistance micro switches

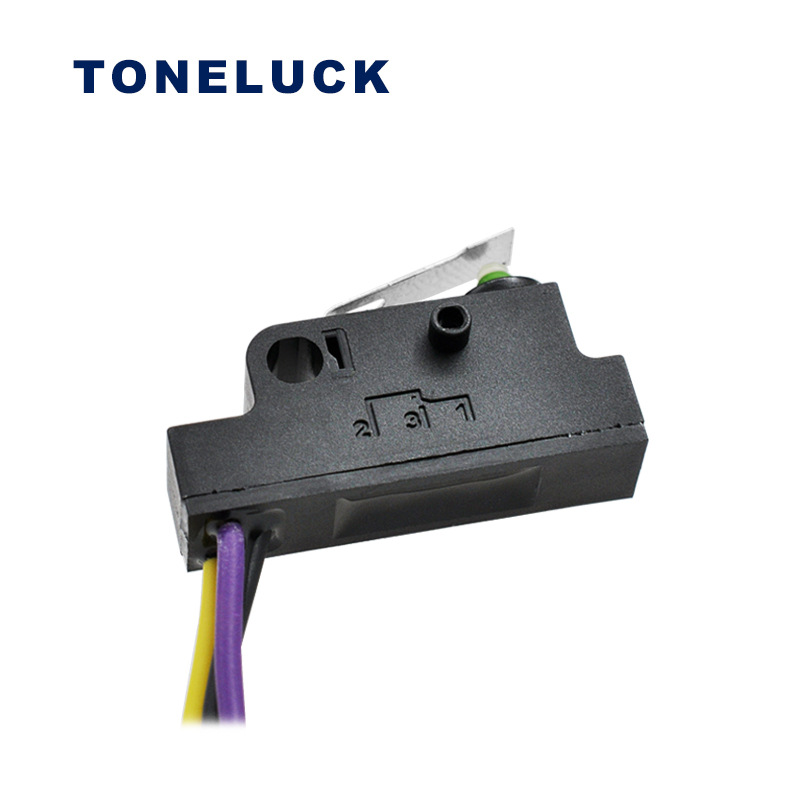

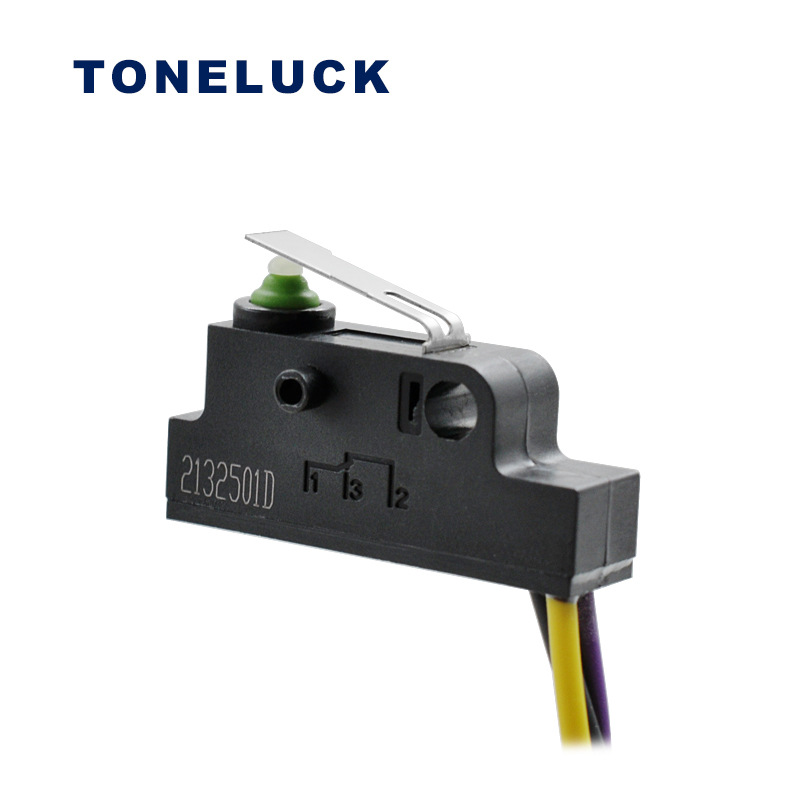

MQS-6 series micro switch
- Product name: MQS-651
Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.
Details Description
Car engine hood micro switch
Specification
| Model No. | MQS-561 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 10~50mA 12~24VDC (ENEC, CQC) 250,000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing | UL 94HB Thermoplastic |
| Contact | Silver |
| Operation Force (OP) | 150gf Max. |
| Release Force (RP) | 20gf Min. |
| Over- Travel (OT) | 1.3mm Min. |
| Movement-Differential (DT) | 0.3mm Max. |
| Operation Position (OP) | 10.2±0.3 mm |
| Total TP (TTP) | 3.45±0.20 mm |
| Free Position(FP) | 4.10mm Max. |
