Short Description

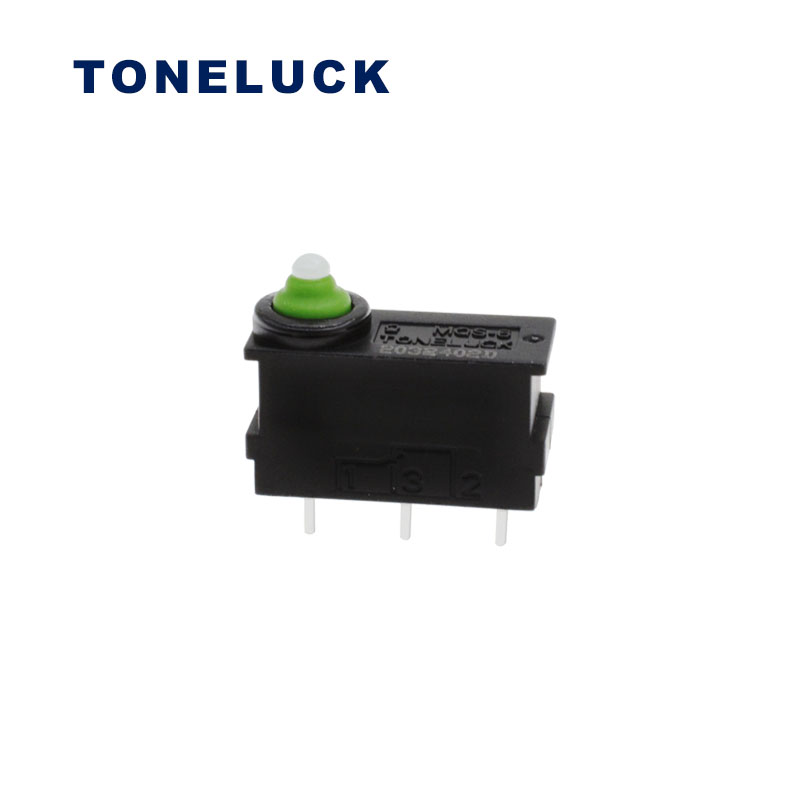

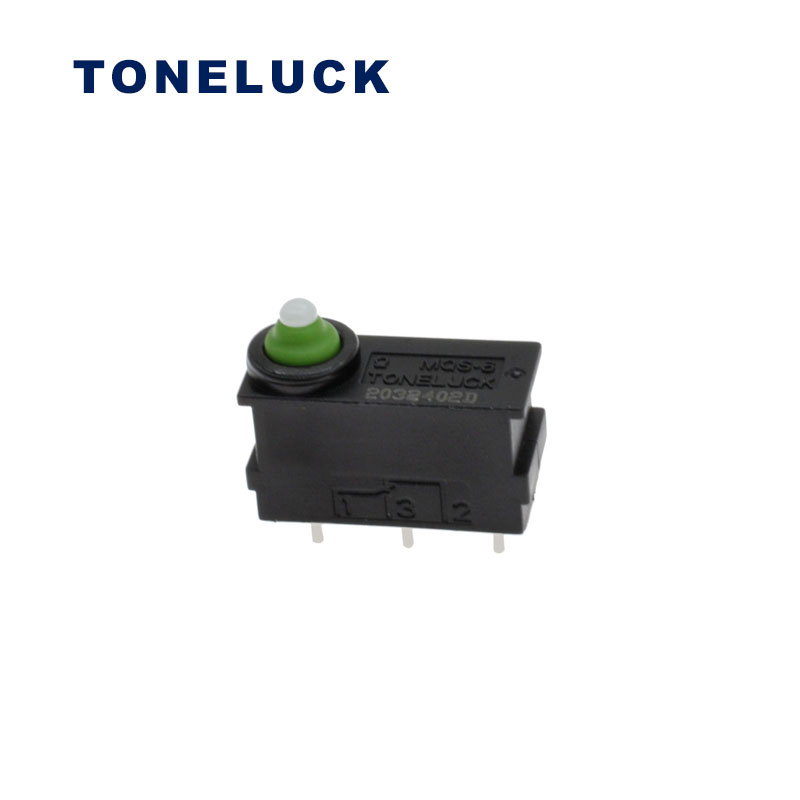

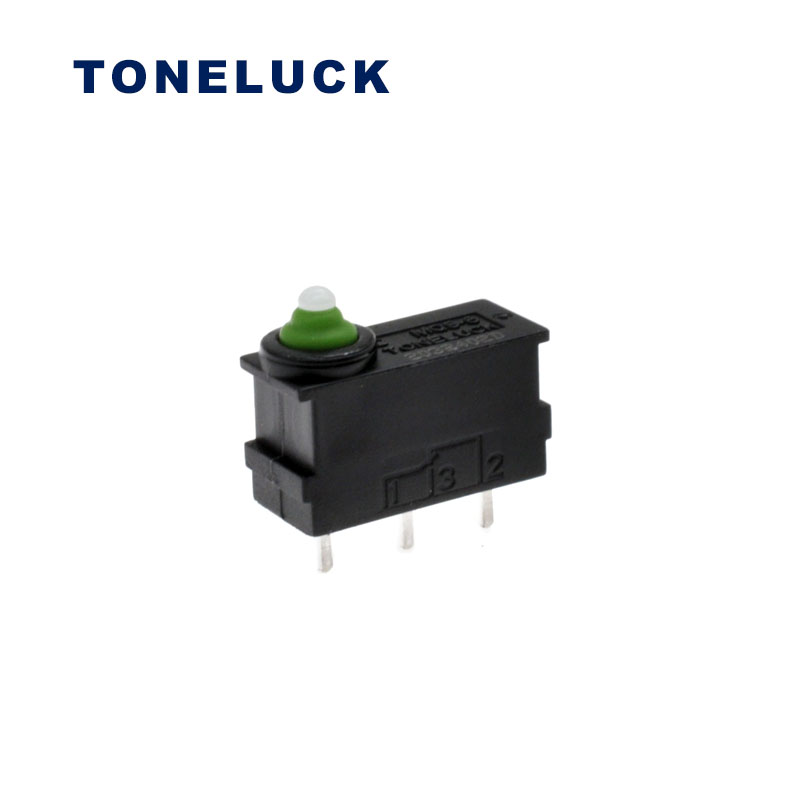

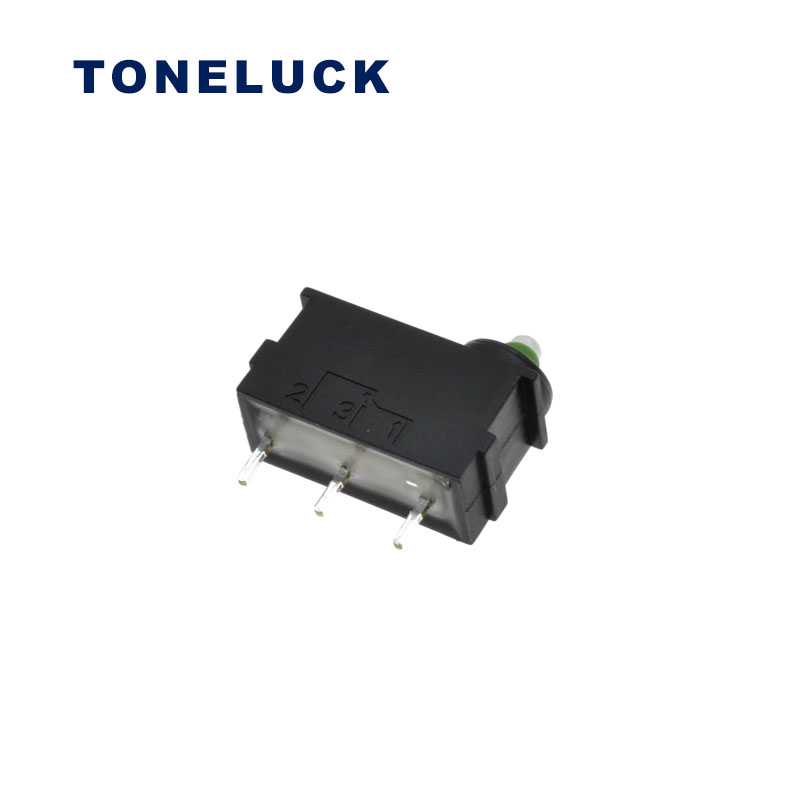

This model is a miniature micro switch with IP67 waterproof level and PCB terminals. More than electrical 250000 cycles.

  • MQS-6 series micro switch

  • Product name: MQS-621NC00-A2

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

PCB Waterproof Miniature Micro Switch

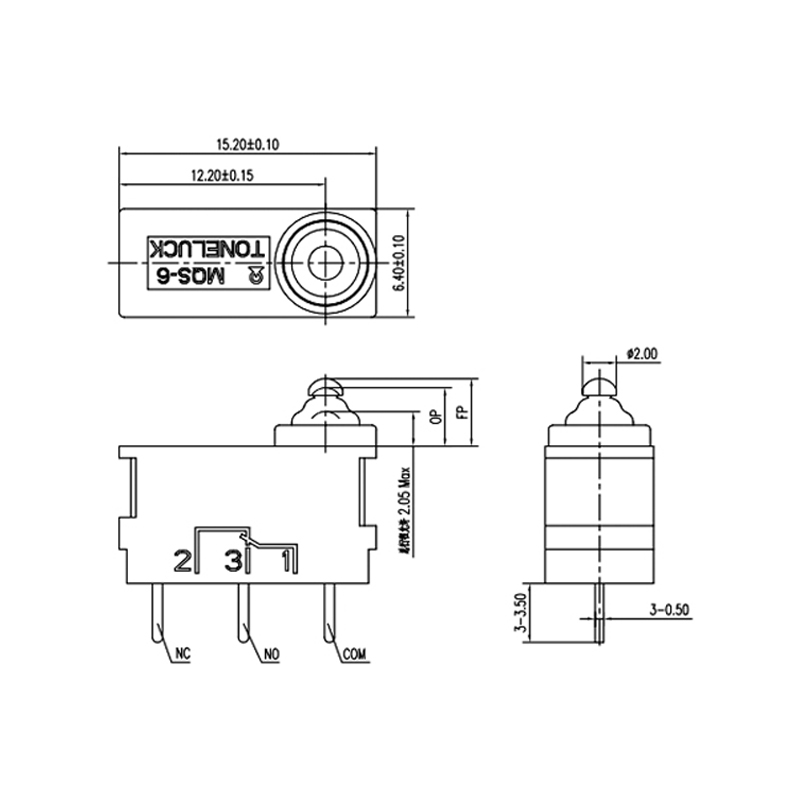

Specification

Model No. MQS-621NC00-A2
Operating Temperature -40℃ to +85℃
Rating 10~50mA 12~24VDC (ENEC, CQC)  250,000 cycles Min.
Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing UL 94HB Thermoplastic
Contact Silver
Operation Force (OP) 150gf Max.
Release Force (RP) 20gf Min.
Over- Travel (OT) 1.3mm Min.
Movement-Differential (DT) 0.3mm Max.
Operation Position (OP) 10.2±0.3 mm
Total TP (TTP) 3.45±0.20 mm
Free Position(FP) 4.10mm Max.
