Details Description Double Micro Switch

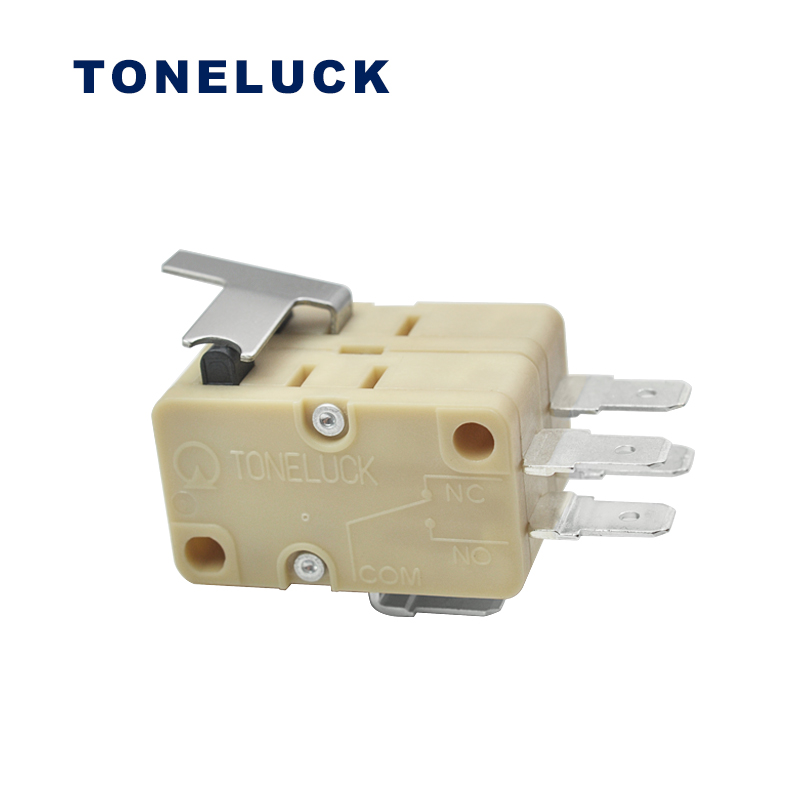

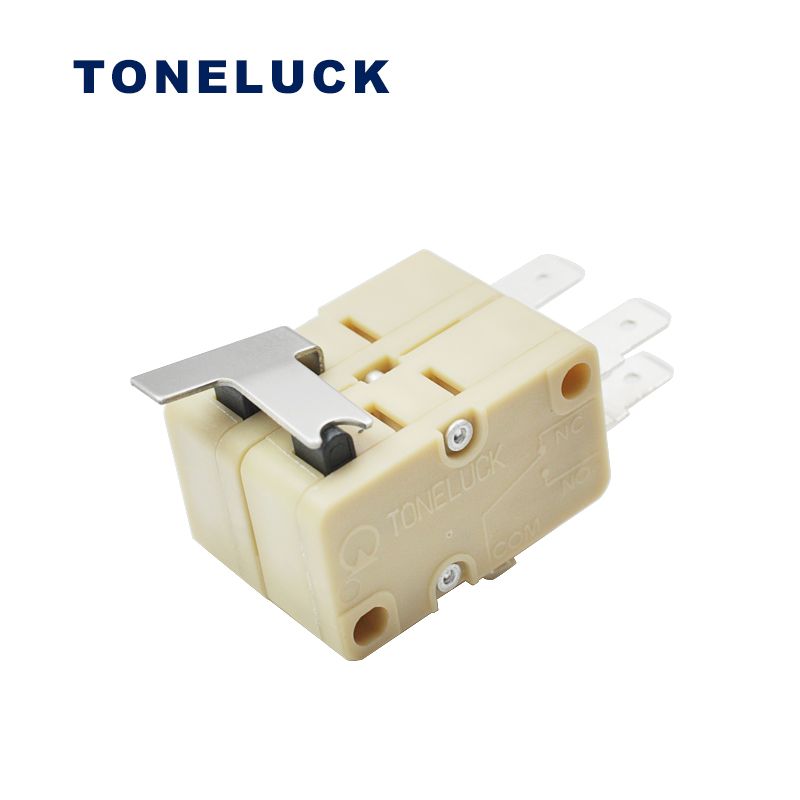

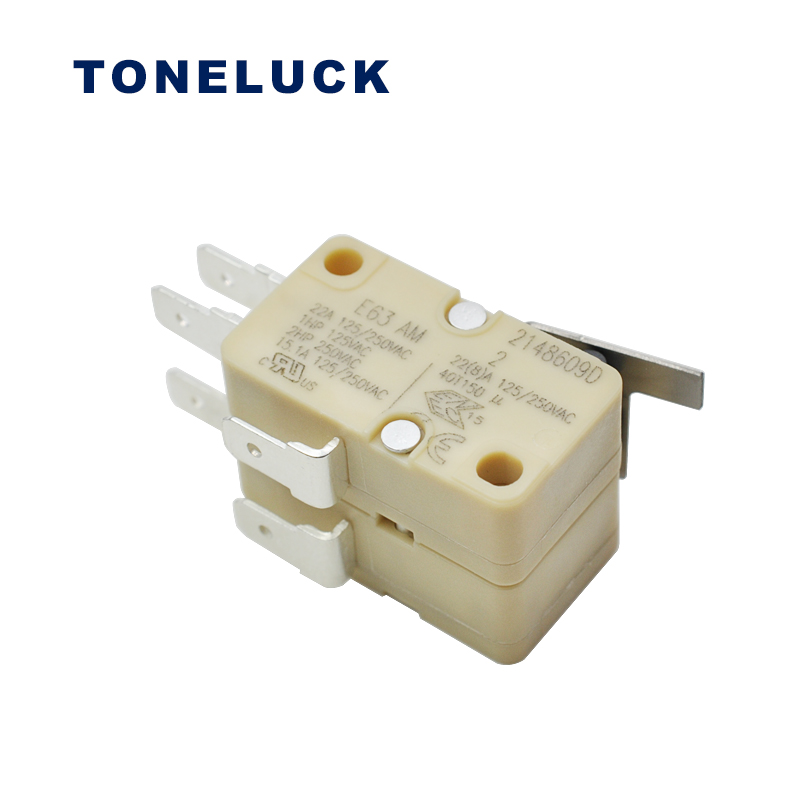

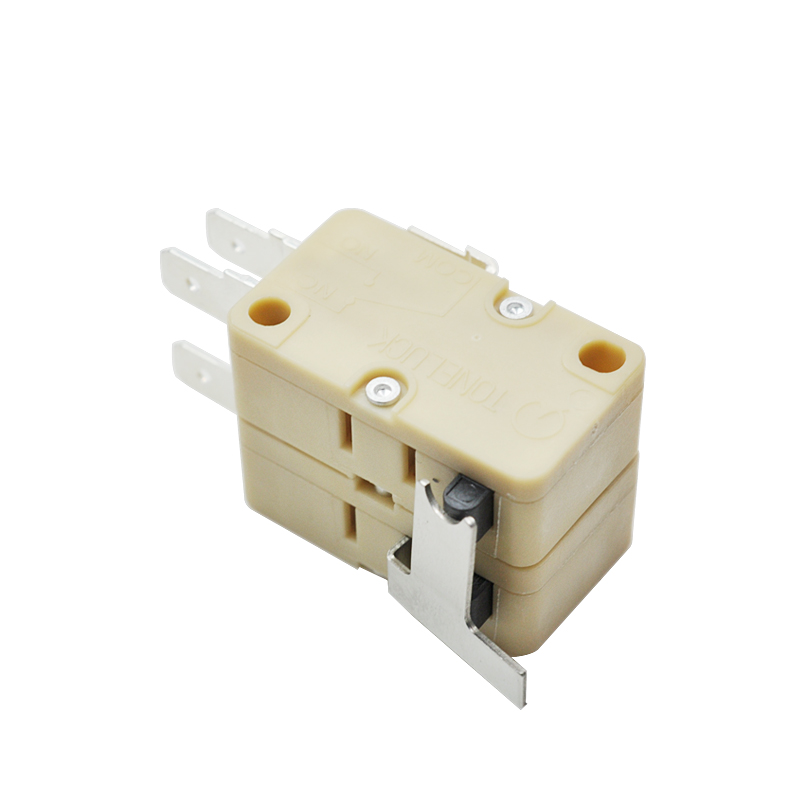

The Toneluck ASM double micro switch with 22A 40T150 SPDT is available, which is combined with 2 micro switches with one communal metal lever. So that it can control them at the same time. The ASM-A21-0001 model is composed of 2 pcs of E63 switches. On one hand, this is a high-temperature microswitch, which can work at 150℃. On the other hand, the double micro switch is also a large current type, and its max working current is 22A in 125/250VAC. Which is certificated by UL, cUL, ENEC, and CQC.
Because it has double SPDT micro switch, it can control 4 circuits in operation. Two of them are from NO to NC and the other 2 circuits are from NC to NO.
All in all, this is a very few switches on the market, welcome to contact us to have more details.
ASM Double Micro Switch Video

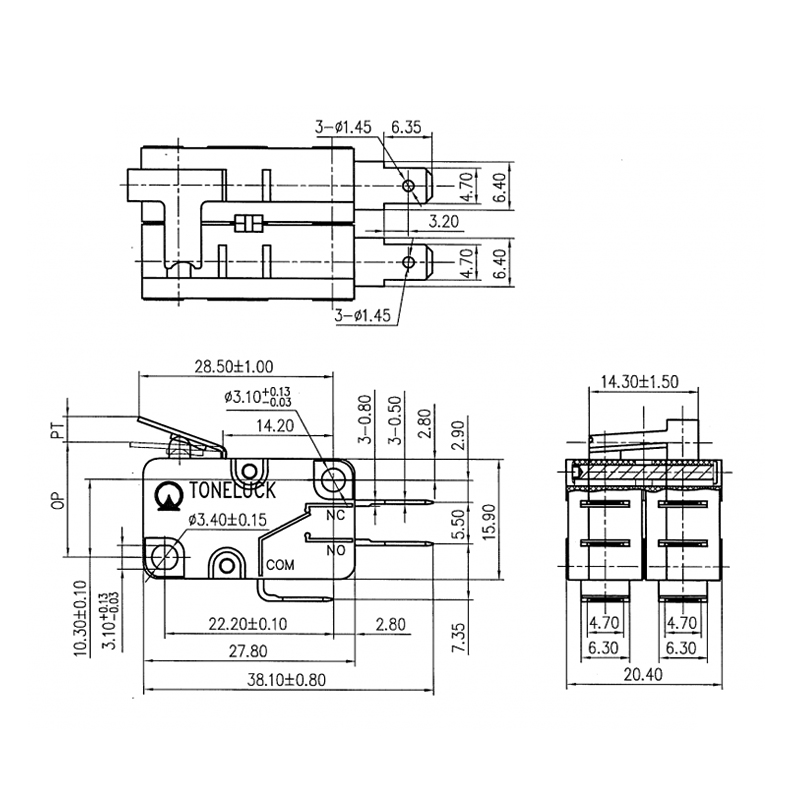

Double Micro Switch Specification
| Model No. | ASM-A21-0001 |
| Operating Temperature | -40℃ to +150℃ (40T150) |
| Rating | 22A 125/250VAC; 1HP 125VAC; 2HP 250VAC 15.1 125/250VAC 22(8)A 125/250VAC |
| Electrical Life | 100,000 cycles Min. in 15.1A; 10,000cycles Min. in 22(8)A |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Metal Lever To Control 2 microswitches |
| Operation Force (OP) | 185±50gf |
| Release Force (RP) | 55gf Min. |
| Pre-Travel (PT) | 3.5mm Max. |
| Over- Travel (OT) | 2.0mm Min. |
| Movement-Differential (DT) | 1.2mm Max. |
| Operation Position (OP) | 15.3±1.5 mm |
