2 Gang Push Button Switch Short Description
Looking for 2 gang push button switch company? Yes, we not only can produce the 2 gangs but the 3, 4, 5, 6, 7, and 8 as well. And our PWL will be used as the power switch.
Push Button Switch Bank
Product Model: PWL-2-20H-0056
Product applications: Cooker hoods, coffee machines, microwave, Audio, Amplifier device, and so on
2 Gang Push Button Switch Description

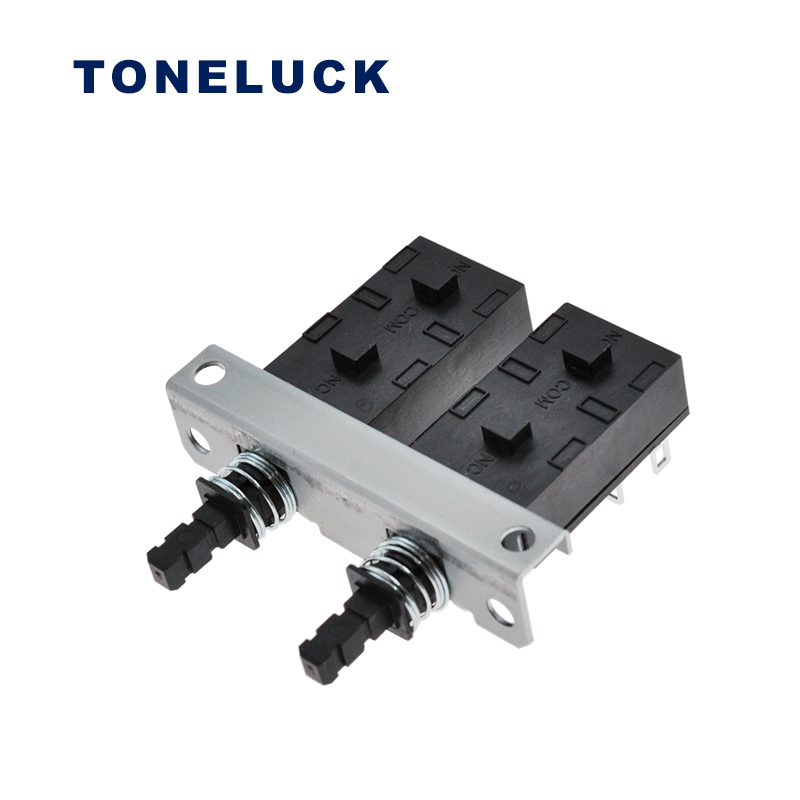

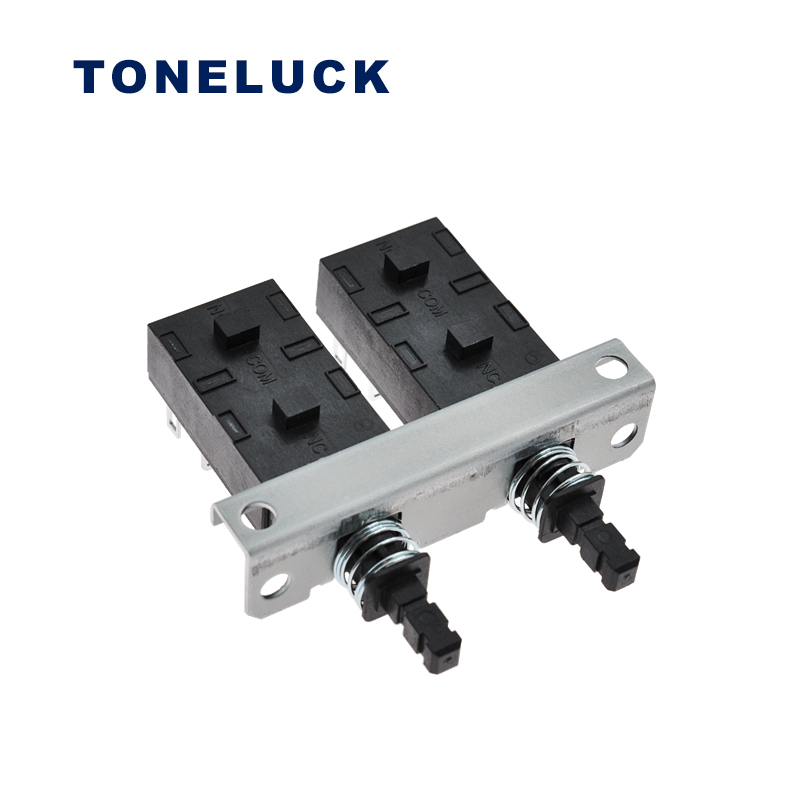

The PWL-2-20H-0056 is a 2 gang push button switch with a self-lock latching function and metal bracket, which has the ENEC, UL, cUL, and CQC certification in the rating of 6A 110 to 250 VAC. Besides, we provide the gang switch subassembly service according to customer requirements. For example, you can choose the switch function like the non-lock, self-lock, inter-lock, or reset function. Meanwhile, the switch distance, and the bracket type. Please contact us, and we will tell us the gang push button switch project details.
Generally, our PWL switch series can be used in cooker hoods, coffee machines, microwaves, audio devices, and so on. All in all, Toneluck is professional and reliable, if you can not find the switch you need, welcome to click the link to see more Toneluck products.

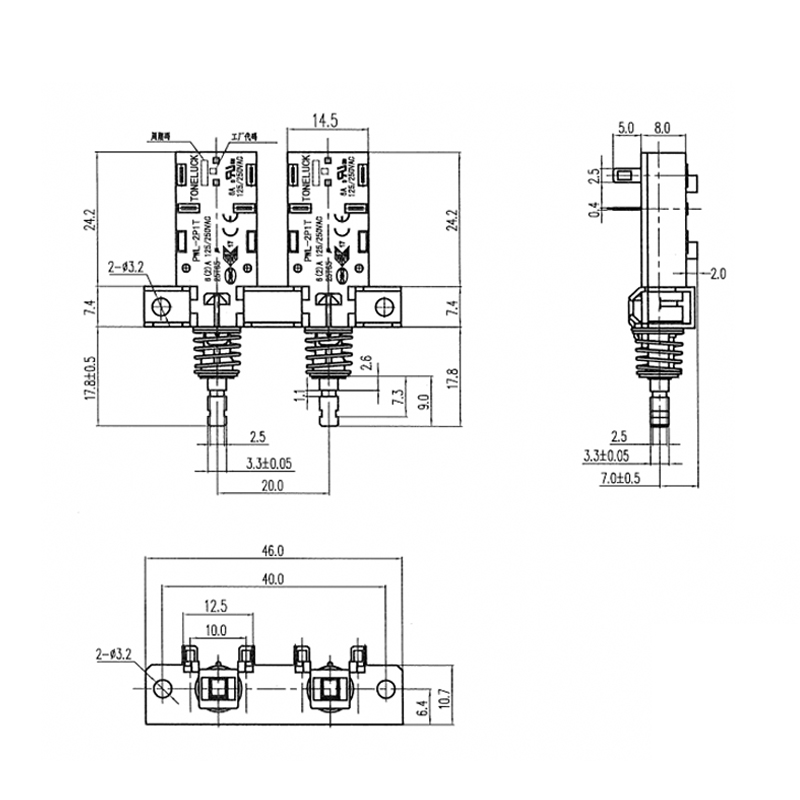

Specification
| Model No. | PWL-2-20H-0056 2 Gange push button switch |
| Operating Temperature | -25℃ to +85℃ |
| Rating | 6A 125/250VAC (UL.cUL, ENEC, CQC) |
| Electrical Life | 10,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC |
| Operation Force | 560gf±150gf |
| Pre-Travel (PT) | 3±0.5mm |
| Gang Switch Quantity | 2 PWL switches |
| Function | Self-lock |
| Current | 2P1T NO |
