Detalles Descripción

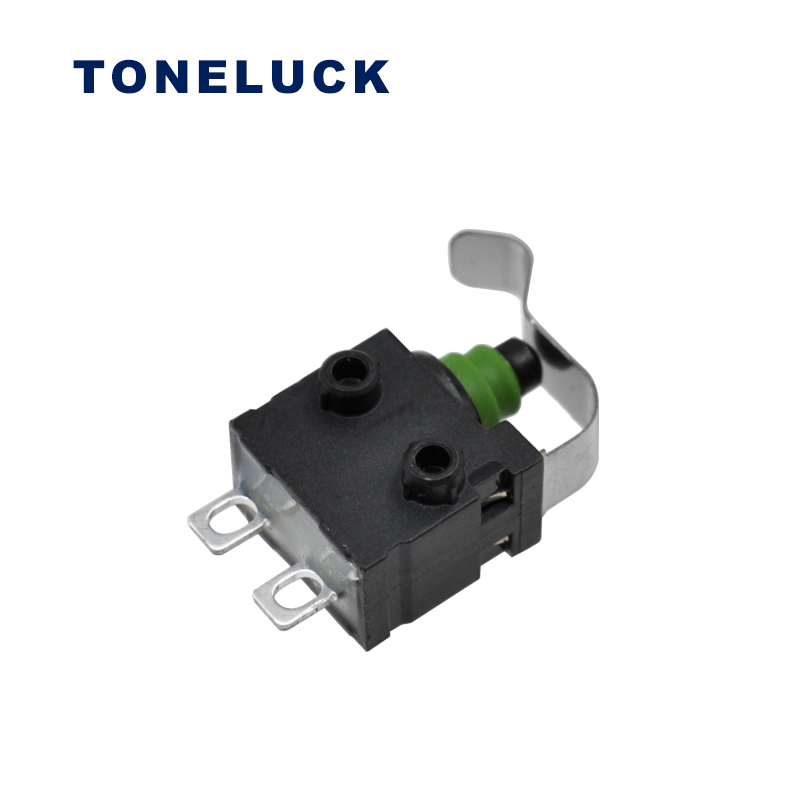

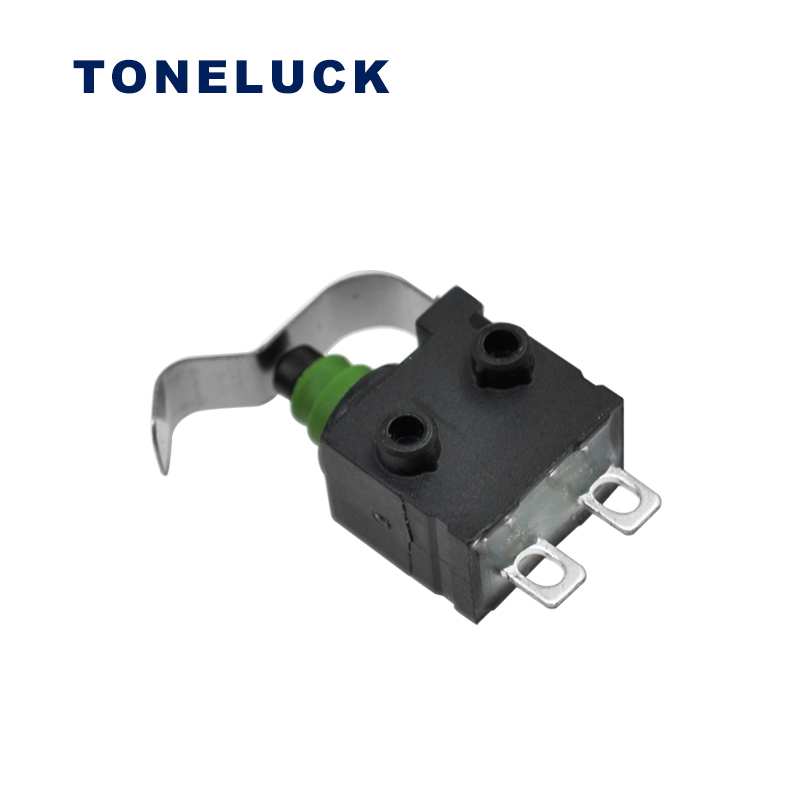

Toneluck MQS-9B1DD04-B1 is a normally open SPST subminiature snap action switch with a metal lever and IP67 waterproof rate, the electrical rating is 1~50mA/5~16VDC, 40T85, 300,000 cycles. Meanwhile, the mechanical cycle for this model is 500,000 cycles. Besides, it is small and high-quality, the length is only 8.3mm. So it can be installed in a small space even a wet environment.
What’s more, if you need any certification of our switch or factory such as the UL, ENEC, CQC, ISO, RoHS REACH, and so on, welcome to contact us to get them.
Especificación
| Modelo N°. | MQS-9B1DD04-B1 |
| Temperatura de funcionamiento | -40℃ a +85℃ |
| Clasificación | 1 mA 5 V CC 300000 ciclos Mín.
50 mA 12 V CC 200000 ciclos mín. 50 mA 16 V CC 150000 ciclos mín. |
| Vida mecánica | 500.000 ciclos mín. |
| Resistencia de aislamiento | 100 ΩM mín. |
| Rigidez dieléctrica | 1000 VCA durante 60 ± 5 seg. |
| Alojamiento | UL 94V-0 Termoplástico |
| Contacto | Plata |
| Tipo de palanca | Sin palanca |
| Fuerza de Operación (OP) | 7,1 ± 0,2 gf |
