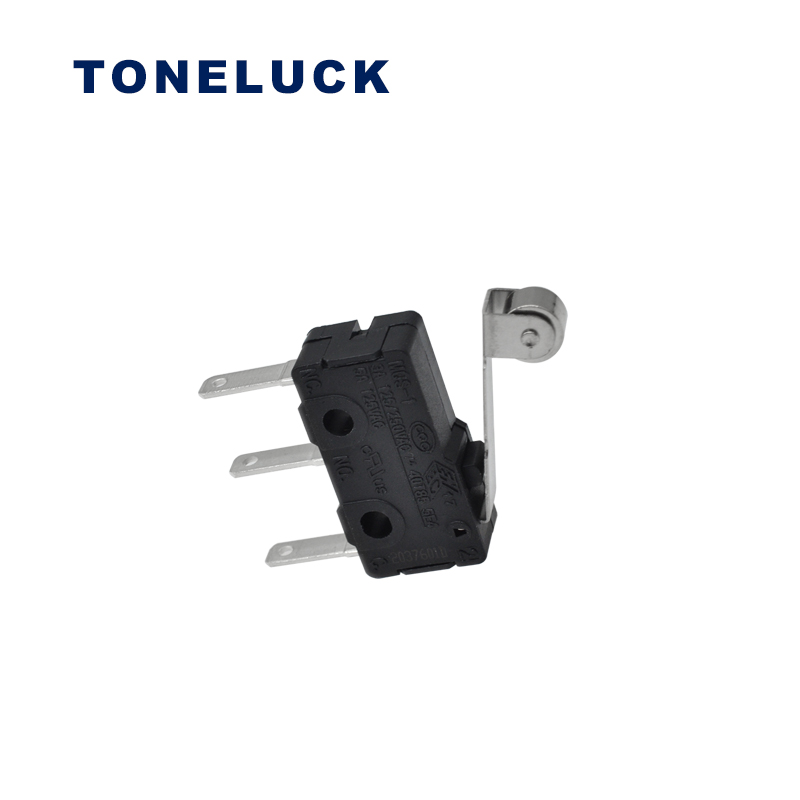

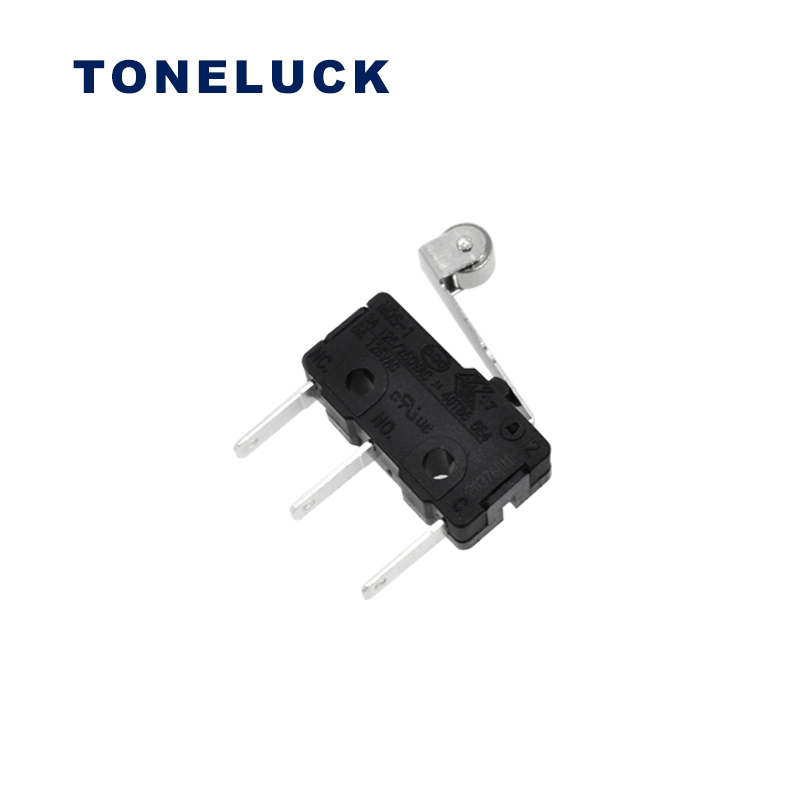

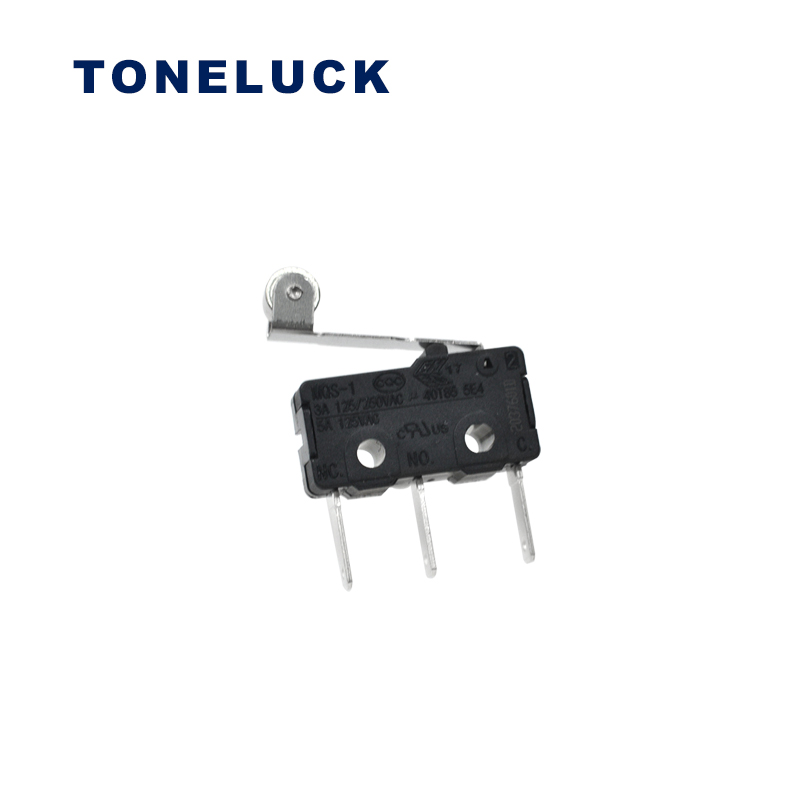

Electronic Components Micro Snap Switch Microswitch SPDT 40T85 5E4
MQS-1 Mikro Anahtar
Product name: MQS-1ADF306-S01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Detaylar Açıklama
Electronic Components Micro Snap Switch Microswitch SPDT 40T85 5E4

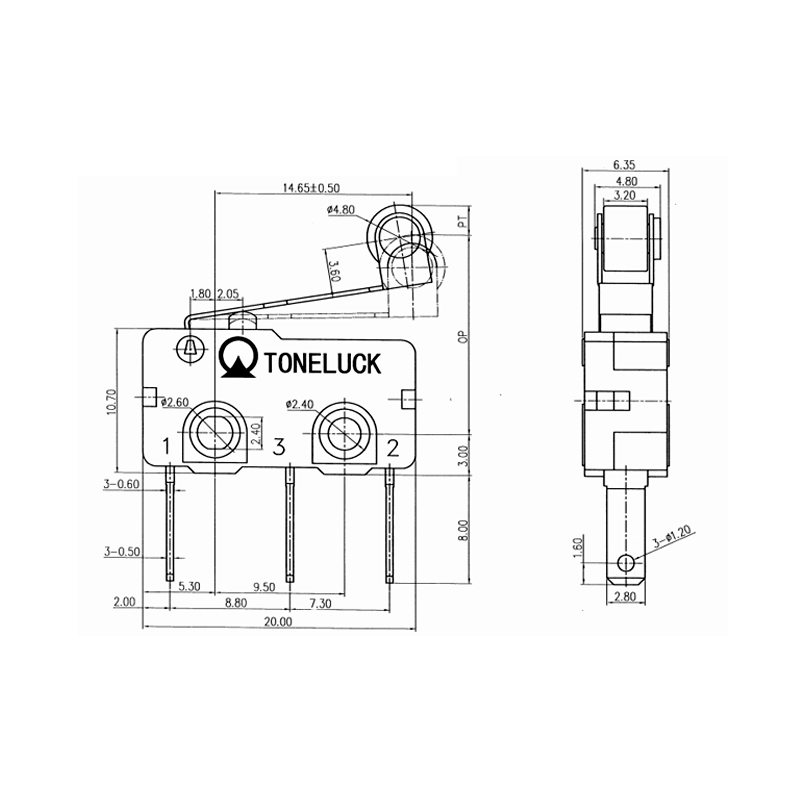

Şartname
| Model No. | MQS-1ADF306-S01 |
| Operating Temperature | -40℃ ila +85℃ |
| Derecelendirme | 3A 125/250VAC (ENEC, CQC) 50,000 cycles Min.
5A 125VAC (UL, cUL) 6000 cycles Min. |
| Mekanik Yaşam | 500.000 çevrim Min. |
| Yalıtım Direnci | 100ΩM Min. |
| Dielektrik Dayanımı | 1000VAC for 60 ± 5 sec. |
| Konut | UL 94V-0 Termoplastik |
| Temas etmek | Silver |
| Kaldıraç Tipi | Without Lever |
| Operation Force (OP) | 40±15gf |
| Release Force (RP) | 8gf Min. |
| Pre-Travel (PT) | 4.2mm Max. |
| Over- Travel (OT) | 1.0mm Min. |
| Movement-Differential (DT) | 1.0mm Max. |
| Operation Position (OP) | 14.5±1.9mm |
| Free Position(FP) | 18.5mm Max. |
