Description courte
Toneluck MQS-216 series microswitches are available from us, this model is an SPST NO switch without a lever. 40T85, 1000000 cycles, 16A 125/250V
Micro-interrupteur de fin de course MQS-2

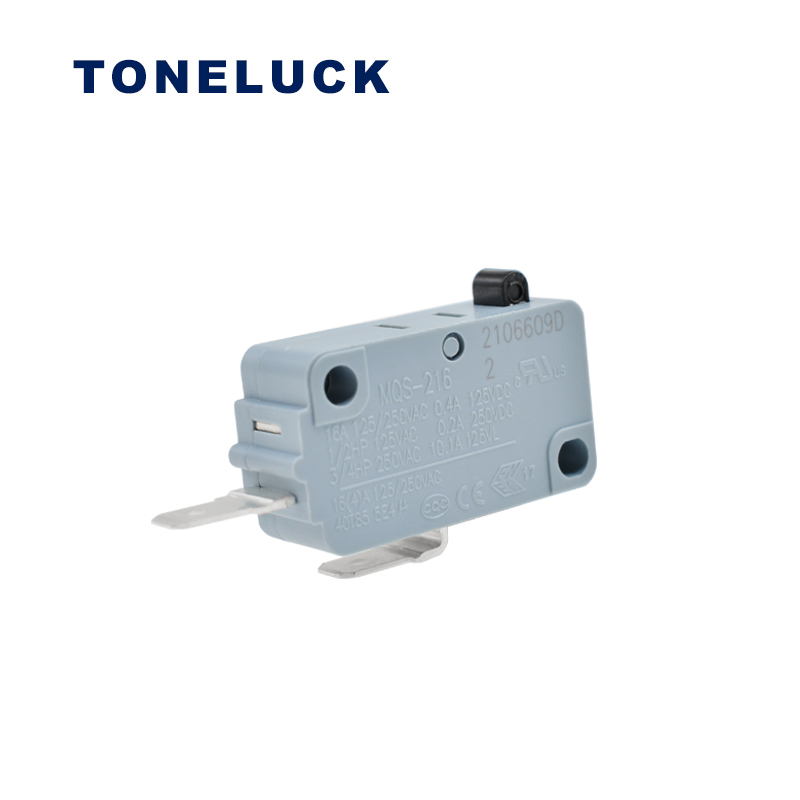

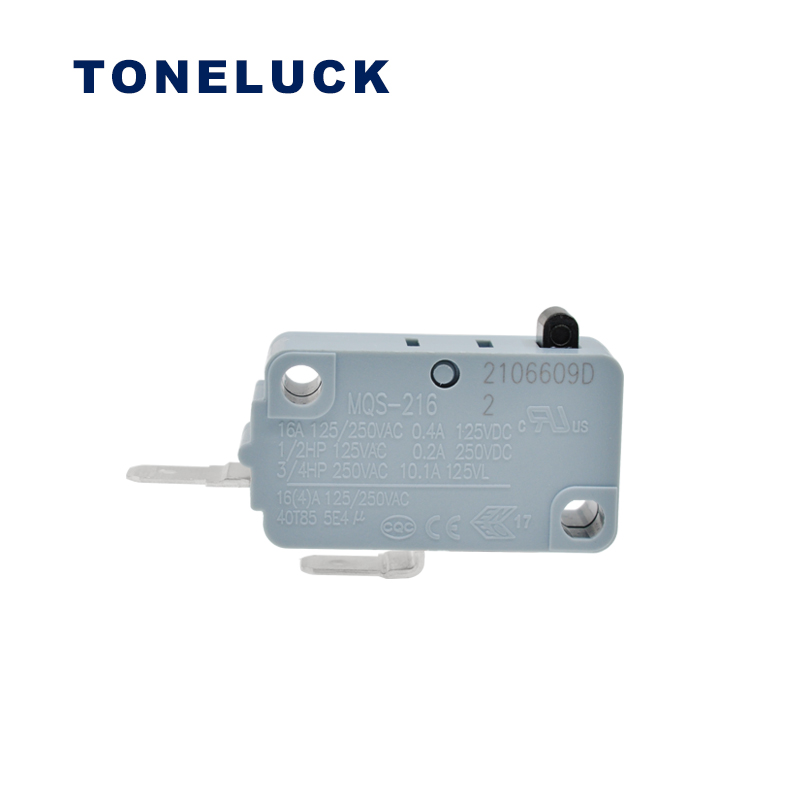

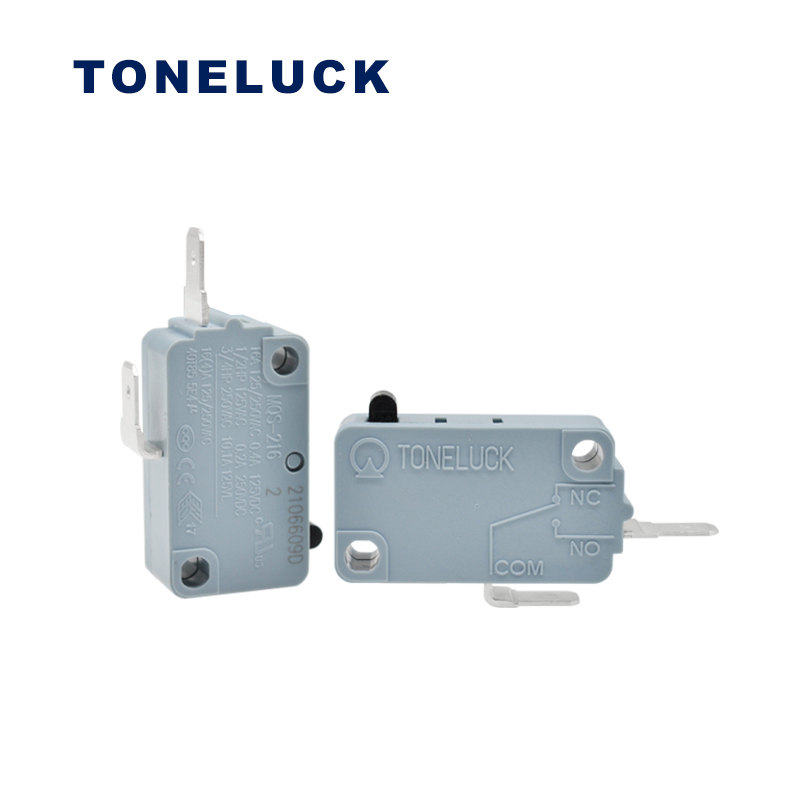

Product name: MQS-216SN00BCM
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Description détaillée
Toneluck MQS-216 series micro switches are available from us, this model is an SPST normally open switch without a lever with a quick contact terminal. The operating temperature is 40T85 with 1000000 cycles mechanical life while it also had been certificated by UL, ENEC, CQC in 16A 125/250V. Besides, people can according to their requirement to choose the arguments from us. High quality and reliable switch, which should be your perfect choice for your machine or device.
Spécification
| Model No. | MQS-216SN00BCM |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC (UL, cUL) 6000 cycles Min.
0.4A 125VDC,0.2A 250VDC,10.1A 125VL (UL, cUL) 6000 cycles Min. 16(4)A 125/250VAC (ENEC, CQC) 50000 cycles Min. |
| Durée de vie mécanique | 500 000 cycles Min. |
| Résistance d'isolement | 100ΩM Min. |
| Force diélectrique | 1000VAC for 60 ± 5 sec. |
| Logement | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Type de levier | Without Lever |
| Operation Force (OP) | 160±30gf |
| Release Force (RP) | 50gf Min. |
| Pre-Travel (PT) | 1.2mm Max. |
| Over- Travel (OT) | 1.25mm Min. |
| Movement-Differential (DT) | 0.4mm Max. |
| Operation Position (OP) | 14.7±0.5 mm |
| Total TP (TTP) | 9.5mm Max. |
| Free Position(FP) | 18.5mm Max. |
