25T125 Micro Switch Short Description
25T125 micro switch means the working temperature is from -25 to 125℃. Generally, it can cover most of the working environment. Toneluck MQS-14 has UL, cUL, ENEC, and CQC certifications. Which is high quality and reliable.

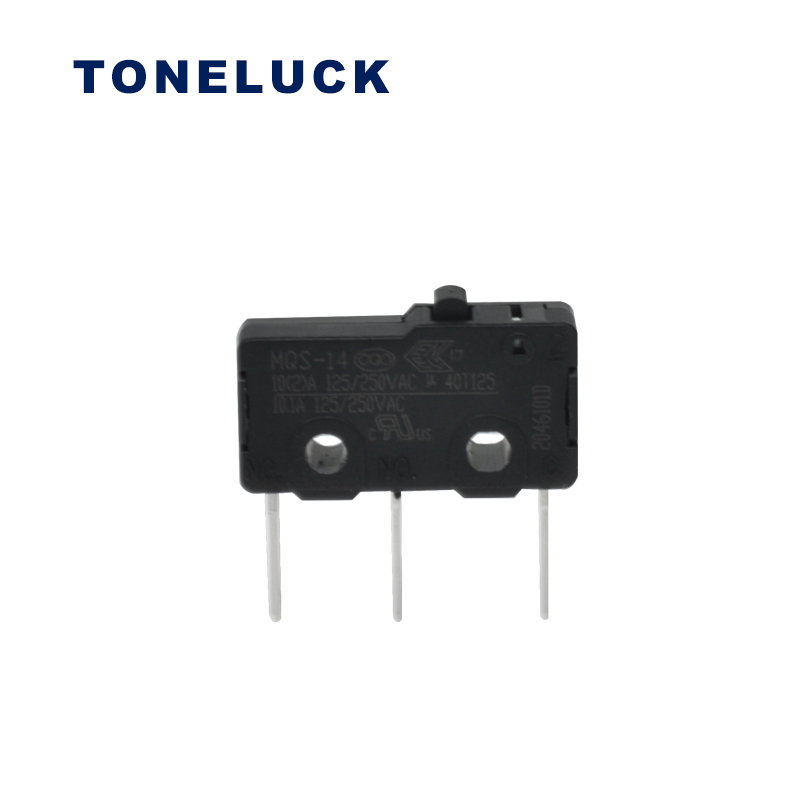

MQS-1 Microswitch
Product MPN: MQS-14ADF400-S01
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
25T125 Micro Switch Details Description
25T125 micro switch means the working temperature is from -25 to 125℃. Generally, it can cover most of the working environment. And Toneluck MQS-14ADF400-S01 this model’s working temperature is 40T125, it can cover the 25T125. Meanwhile, it also has UL, cUL, ENEC, and CQC certifications. So, the switch is high quality and reliable.

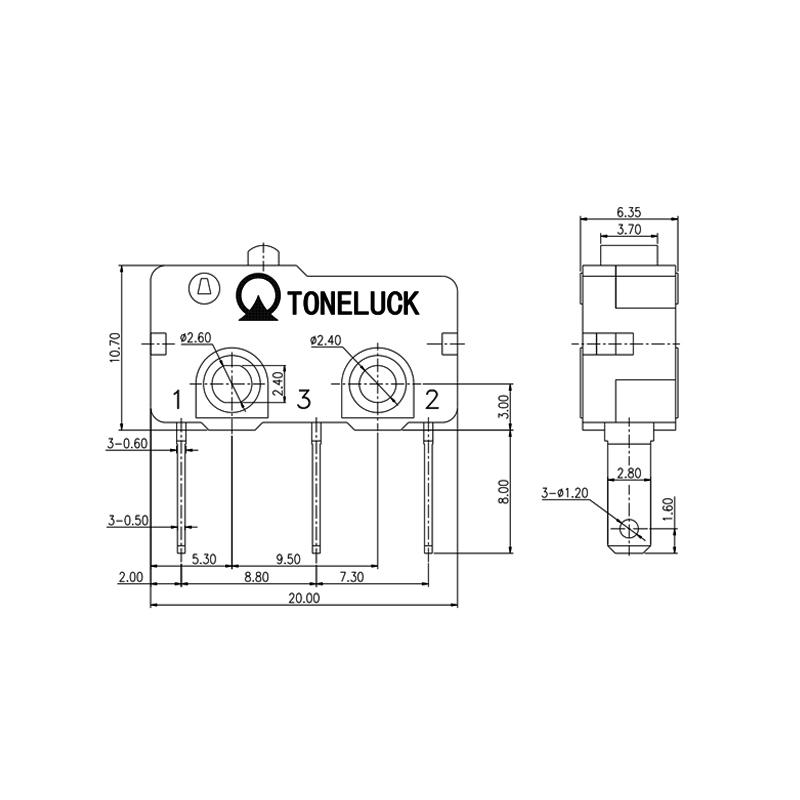

This model has 3 long faston terminals to connect with wire, which is a single pole double throw type micro switch. But if you have another requirement, welcome to contact us to have more details.
25T125 Micro Switch Specification
| Xếp hạng điện | MQS-14ADF400-S01 |
| Nhiệt độ hoạt động | -40℃ to +125℃ (40T125) |
| Cuộc sống cơ học | Tối thiểu 500.000 chu kỳ. |
| Điện trở tiếp xúc | Tối đa 50mΩ (ban đầu) |
| Điện trở cách điện | Tối thiểu 100ΩM. |
| Độ bền điện môi | 1500VAC for 60 ± 5 sec. |
| Nhà ở: | Nhựa nhiệt dẻo UL 94V-0 |
