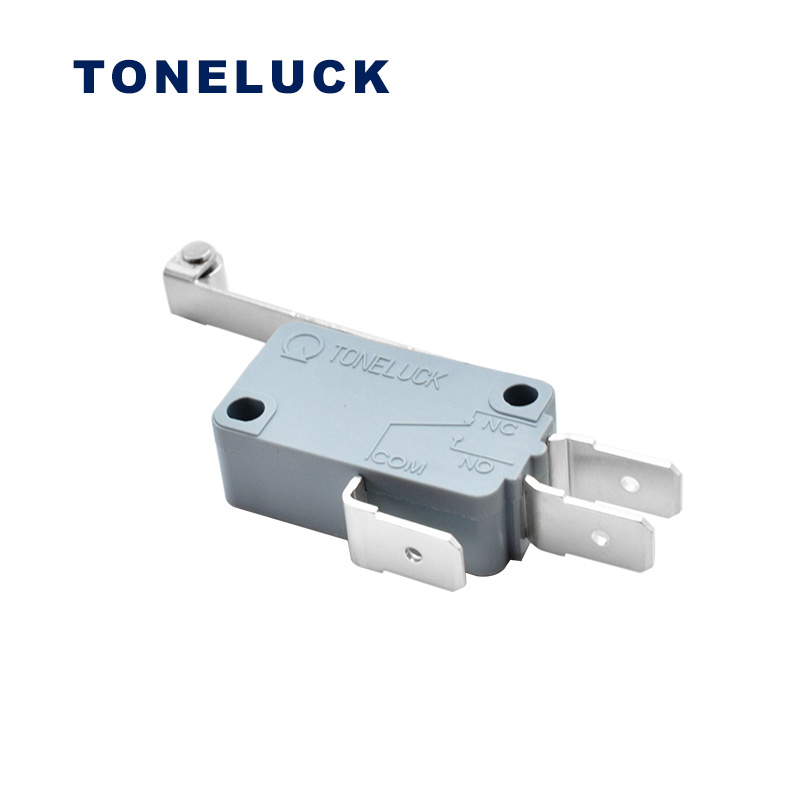

Microswitch Roller Lever Short Description
The MQS-2 microswitch roller lever is available for selling from us, as well as we can provide the project help, free sample test, and switch parameters selection. This model is a 16A 125/250VAC rating with SPDT & roller lever.

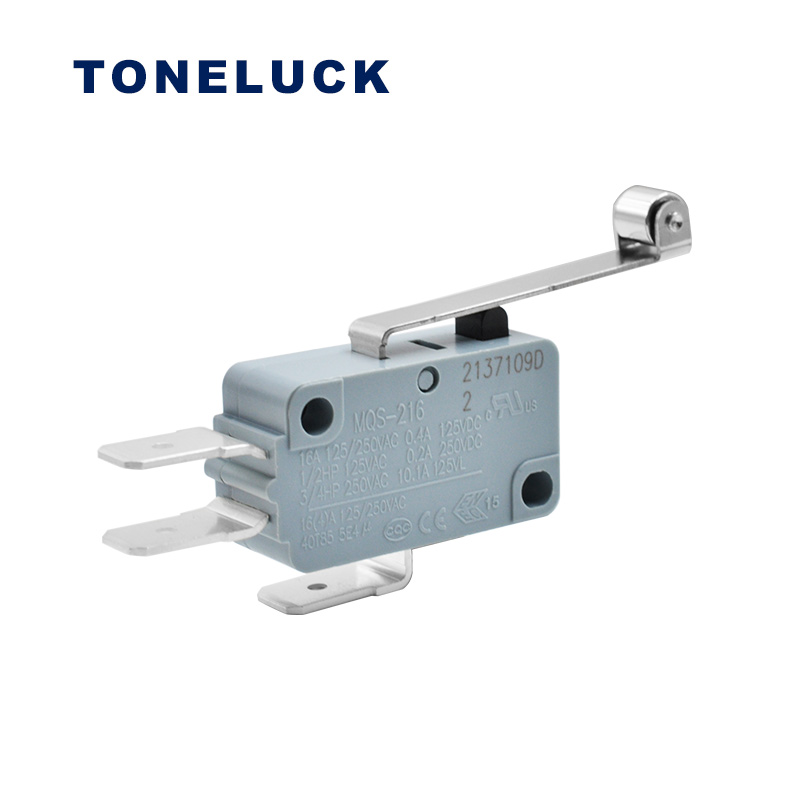

MQS-2 Limit Micro Switch

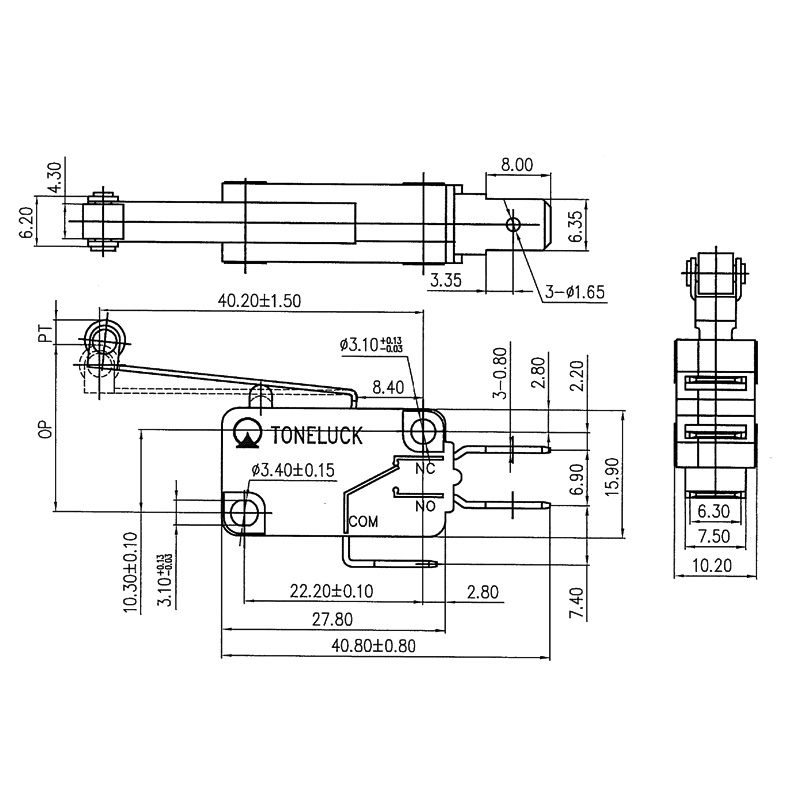

Product name: MQS-216SA05AAM
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Подробности Описание
The MQS-216SA05AAM roller lever microswitch is a switch with the certificated rating “16A 125/250VAC; 1/2HP 125VAC; 3/4HP 250VAC; and 0.4A 125VDC; 0.2A 250VDC;10.1A 125VL” which is approved by the UL, cUL, ENEC, and CQC. So, we can use this switch in many products, such as the household appliances, entertainment equipment, etc.
Besides, we as well as can provide project help, free sample test, and switch parameters selection. Which can help you in your project process, welcome to contact us.
Спецификация
| Model No. | MQS-216SA05AAM |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Механическая жизнь | 500 000 циклов Мин. |
| Сопротивление изоляции | 100 Ом Мин. |
| Электрическая прочность диэлектрика | 1000VAC for 60 ± 5 sec. |
| Жилье | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Тип рычага | With a Roller Lever |
| Operation Force (OP) | 65±25gf |
| Release Force (RP) | 20gf Min. |
| Pre-Travel (PT) | 4.5mm Max. |
| Over- Travel (OT) | 3mm Min. |
| Movement-Differential (DT) | 1.5mm Max. |
| Operation Position (OP) | 10.2±0.3 mm |
| Total TP (TTP) | 9.5mm Max. |
| Free Position(FP) | 18.5mm Max. |
