25T85 Micro Switch Short Description
25t85 micro switch means the working temperature is from -25 to 85℃. Generally, 40T85 can cover 25T85 but 2T85 can’t. We supply all kinds of switches, welcome contact us to get the price and datasheet.
MQS-1 Microswitch
Product MPN: MQS-1DAPF400-S01
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
25T85 Micro Switch Details Description

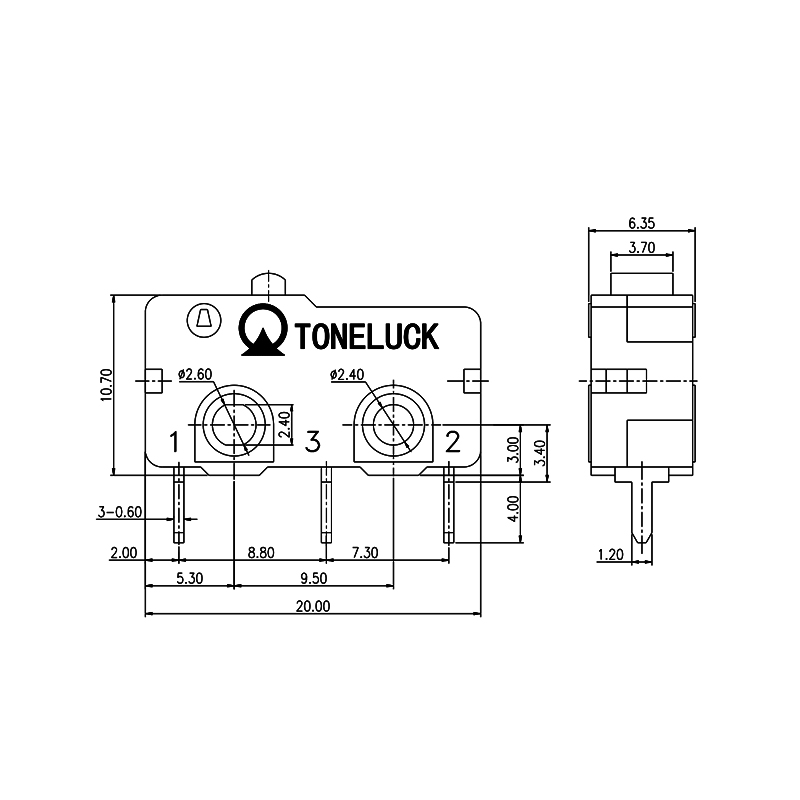

The MQS-1DAPF400-S01 micro switch’s certificated working temperature is 40T85 so it can cover the 25t85. And this model has 3 PCB pins to allow it to be installed with the Printed Circuit Board generally. However, we also can install it through its mounting hole as well, which is according to your design.
Meanwhile, the switch design can meet the requirement of IEC61058 and UL1054, which are the standard of CE and UL. And the material also meets the requirement of REACH and ROHS. Besides, the switch also has global safety(ULcUL, ENEC, CQC) certifications. Besides, we can control all the processes in our own, like the terminal and plastic shell production. This is why our microswitch products quality are good, which is better than most of same switches on the market in China.
MQS-D Switch Specification
| Электрические характеристики | MQS-1DAPF400-S01 |
| Рабочая температура | -40℃ to +85℃ (40T85) |
| Механическая жизнь | 500 000 циклов Мин. |
| Контактное сопротивление | 50 мОм макс. (начальное) |
| Действующая сила | 230±40gf |
| Сопротивление изоляции | 100 Ом Мин. |
| Электрическая прочность диэлектрика | 1500VAC for 60 ± 5 sec. |
| Жилье: | UL 94V-0 Thermoplastic |
