Small Micro Switch Car Door Lock Microswitch 2A 12VDC

간략한 설명

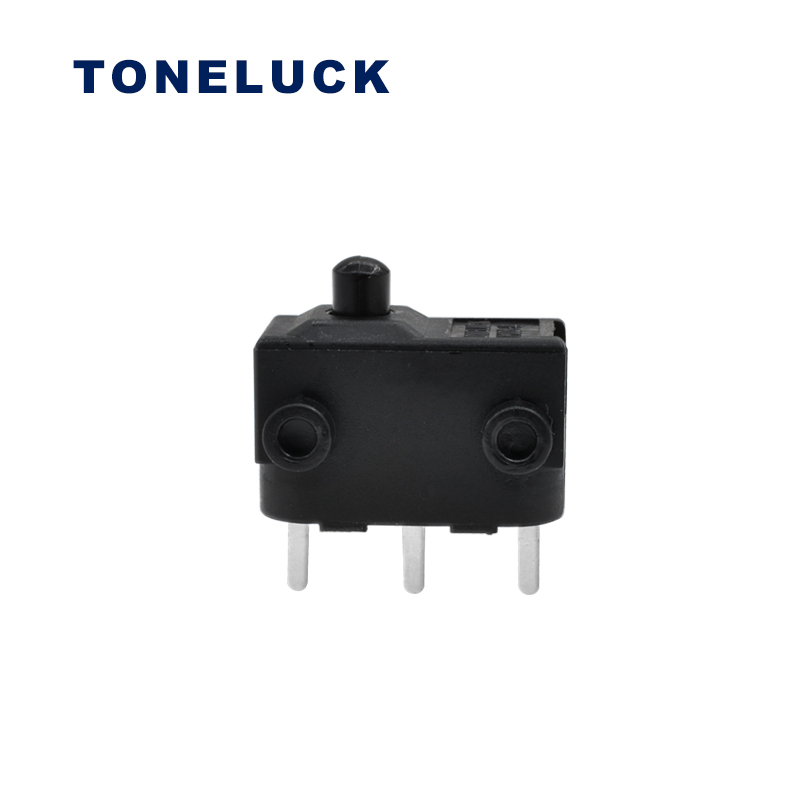

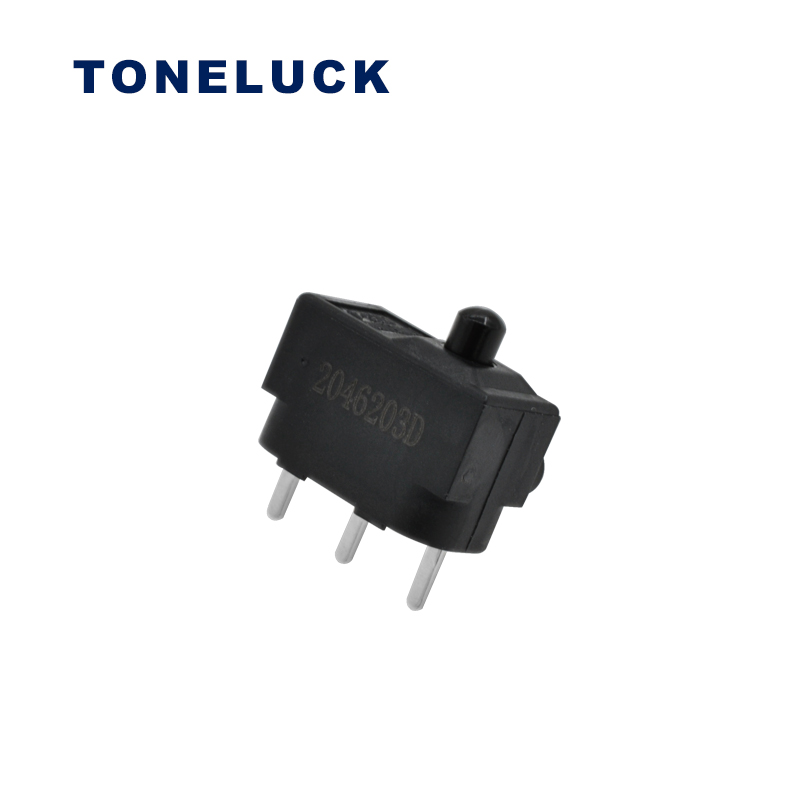

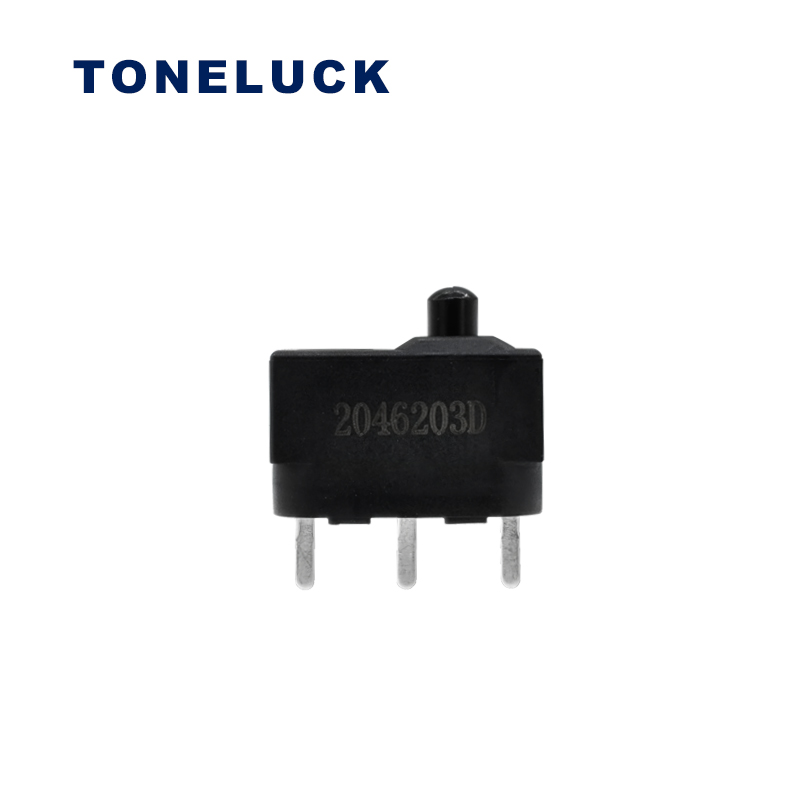

The Toneluck MQS-4 is a small micro switch with PCB terminal and post, the rating is 2A 125VDC which is certificated by the UL, ENEC, and CQC.

MQS-4 방수 마이크로 스위치
Product name: MQS-411BC00-A901
Product applications: automobile parts, cranes, household gas appliances, washing machines, dishwashers, and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

이메일을 보내주세요

PDF로 다운로드

세부 정보 설명

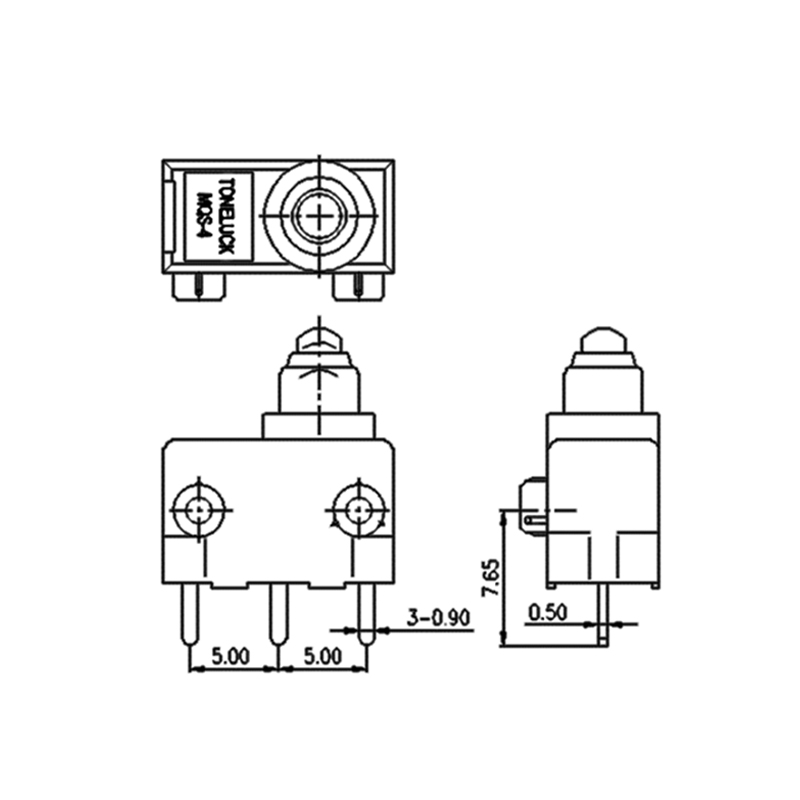

The Toneluck MQS-4 is a small microswitch with 3 PCB terminals and 2 posts, the rating is 2A/12VDC, SPDT which is certificated by the UL, ENEC, and CQC. Meanwhile, the switch’s mechanical life is 1,000,000 cycles at least, which is a very long-life micro switch on the market. So, it is suitably used in the high requirement product, such as the automobile door lock system.

사양

전기 정격	10~50mA 12~24 VDC 250,000회 최소.
작동 온도	-40℃ ~ +85℃
기계적 수명	최소 500,000 사이클.
접촉 저항	50mΩ 최대 (초기)
작전 부대	최대 150gf.
절연 저항	100ΩM 최소.
유전 강도	500VAC, 60 ± 5초.
주택:	UL 94 HB 열가소성 플라스틱(베이스) UL 94 HB 열가소성 플라스틱(커버)
