簡単な説明
L50CG is SPST normally closed roller micro switch with UL 10k cycles. Besides, the switch also got the ENEC & CQC certification. And if the need the sample test, welcome to contact us with any hesitation.
Lスナップアクションマイクロスイッチ

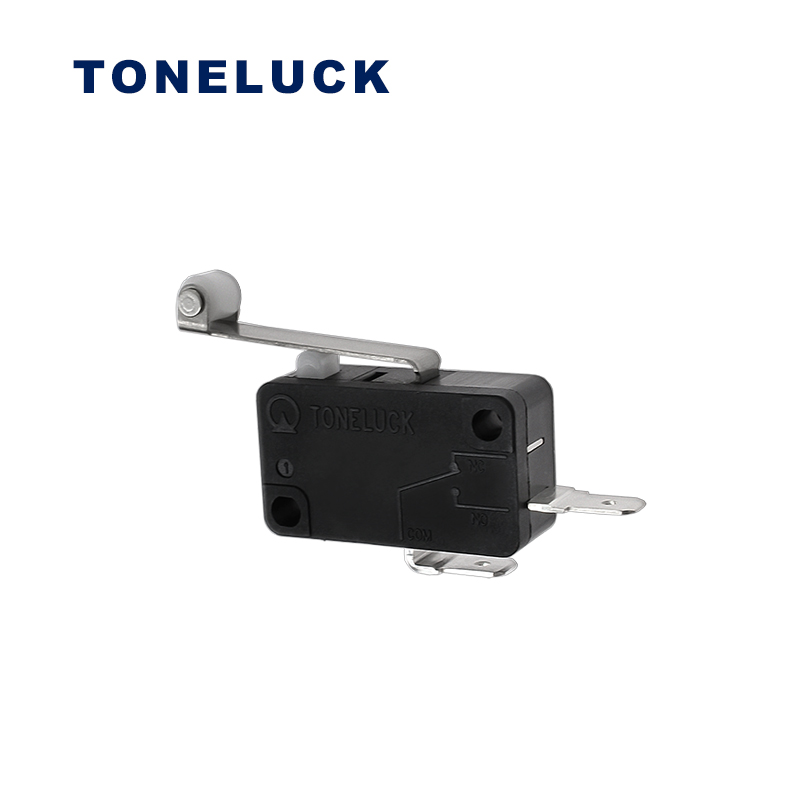

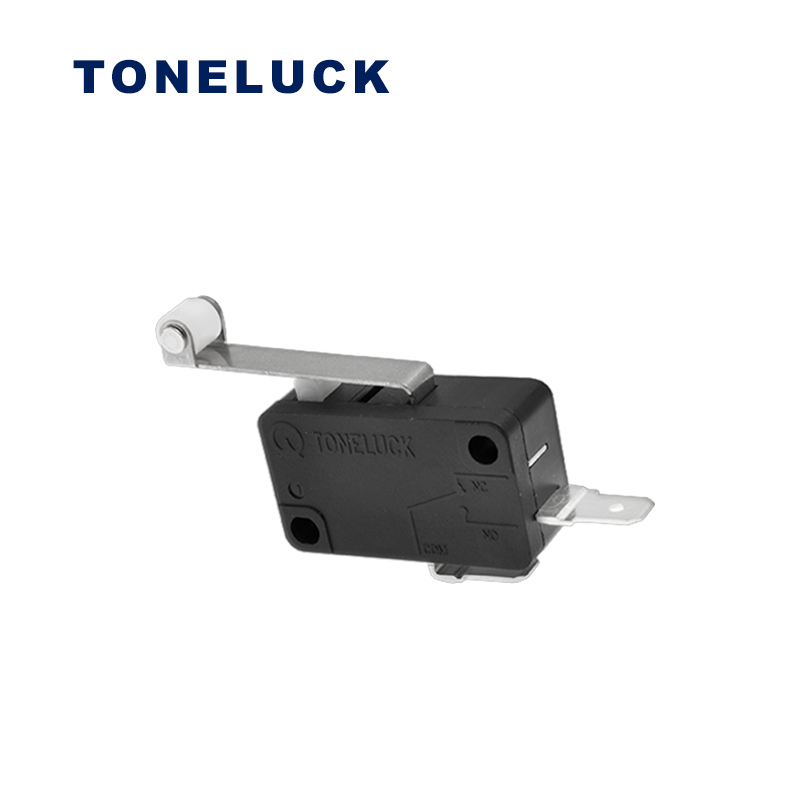

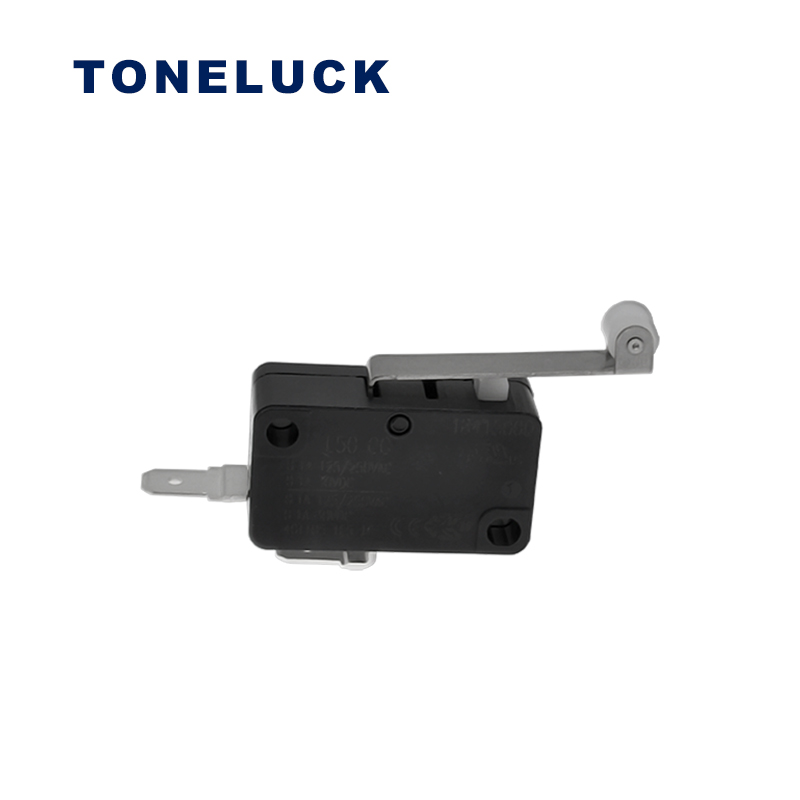

Product name: L50CG-BA85A2-01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
詳細説明
L50CG is SPST normally closed roller microswitch with UL 10k cycles approval. Meanwhile, the switch also got the ENEC & CQC certification. So, it is very high quality and long life. The L50CG-BA85A2-01 is not only long electrical life but also can work the Max. working temperature is 40T105. And if you need the sample test, welcome to contact us with any hesitation.
仕様
| 電気定格 | 10〜50mA 12〜24 VDC 250,000サイクル以上. |
| 動作温度 | -40℃～+85℃ |
| 機械生命 | 500,000サイクル以上. |
| 接触抵抗 | 50mΩ最大（初期） |
| 作戦部隊 | 最大150gf。. |
| 絶縁抵抗 | 100ΩM以上. |
| 絶縁強度 | 500VAC、60±5秒間。. |
| ハウジング： | UL 94 HB熱可塑性樹脂（ベース） UL 94 HB熱可塑性樹脂（カバー） |
