Breve descrizione

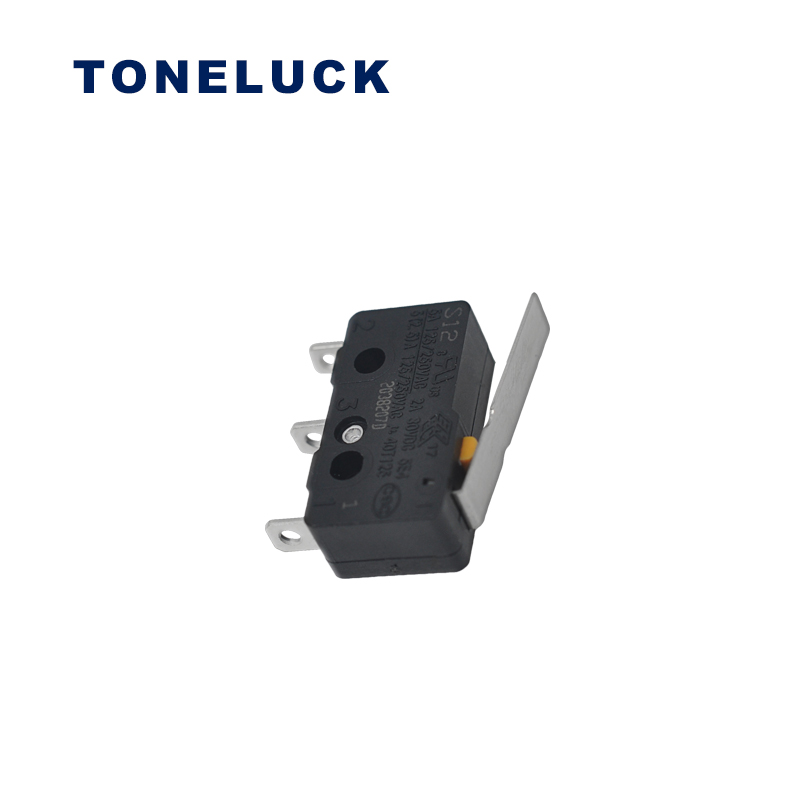

The Toneluck S12AAF201-S01 is a straight lever SPDT momentary micro switch with UL ENEC CQC certification in the rating of 5A 125 / 250VAC 2A 30VDC.
Interruttore a scatto S1
Product name: S12AAF201-S01
Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Dettagli Descrizione

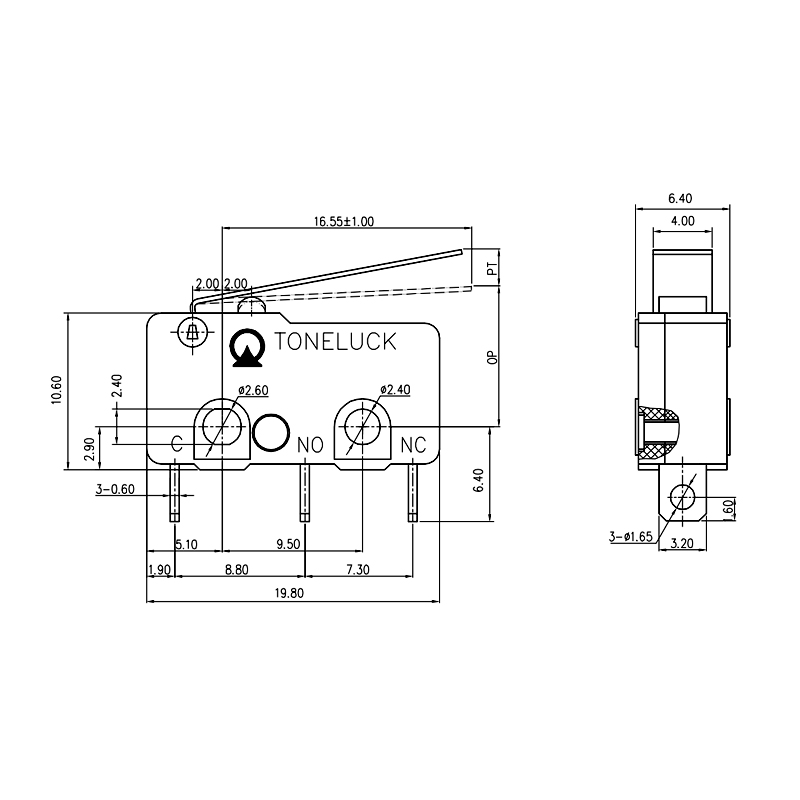

S12AAF201-S01 is a straight lever SPDT momentary microswitch with UL ENEC CQC certification in the rating of 5A 125 / 250VAC;2A 30VDC. Meanwhile, the shell material is made of UL 94V0 thermosetting plastic and the contact is silver alloy. However, if you have other requirements in the lever, terminal, operation force, contact, welcome to contact us to get more details. For this series, the mounting hole size has the 2.4mm and 2.2mm diameter for choice.
Specifica
| Modello n. | S12AAF201-S01 |
| Temperatura di esercizio | -40℃ to +125℃ |
| Valutazione | 2A 30VDC or 5A 125/250VAC (UL CUL) 6000 cycles Min.
2A 30VDC or 5(2.5)A 125/250VAC (ENEC) 50000 cycles Min. 2A 30VDC or 5(2.5)A 125/250VAC (CQC) 50000 cycles Min. |
| Vita meccanica | 500.000 cicli Min. |
| Resistenza di isolamento | 100ΩM minimo. |
| Rigidità dielettrica | 1000 V CA per 60 ± 5 sec. |
| Alloggiamento | UL 94V-0 Termoplastico |
| Contatto | Argento |
| Forza Operativa (OP) | 25±15gf |
| Pre-viaggio (PT) | 3.6mm Max. |
| Over-Travel (OT) | 1mm Min. |
| Free Position(FP) | 13.2mm Max. |
