Power Push Button Switch Short Description
PWL power push button switch is a mains switch to control the device power in the rating of 6A 125VAC/250VAC with a 2P2T circuit and a metal bracket. UL, ENEC, CQC.
PWL Power Push Button Switch
Product Model: PWL-2P2T-6SAPTA
Applications du produit : Instruments de précision, équipements industriels, appareils ménagers, etc.
Power Push Button Switch Details Description

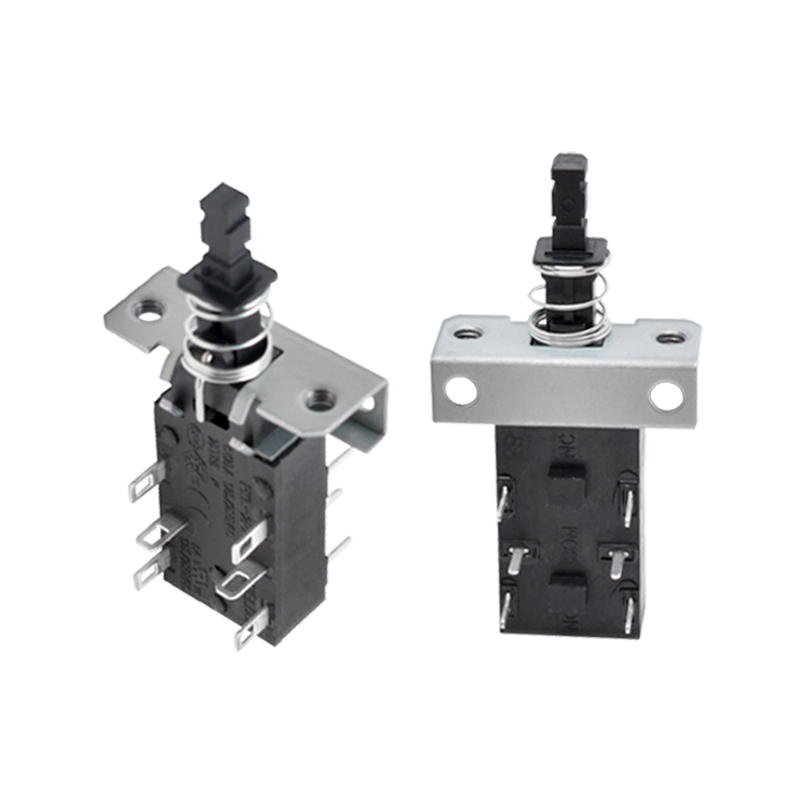

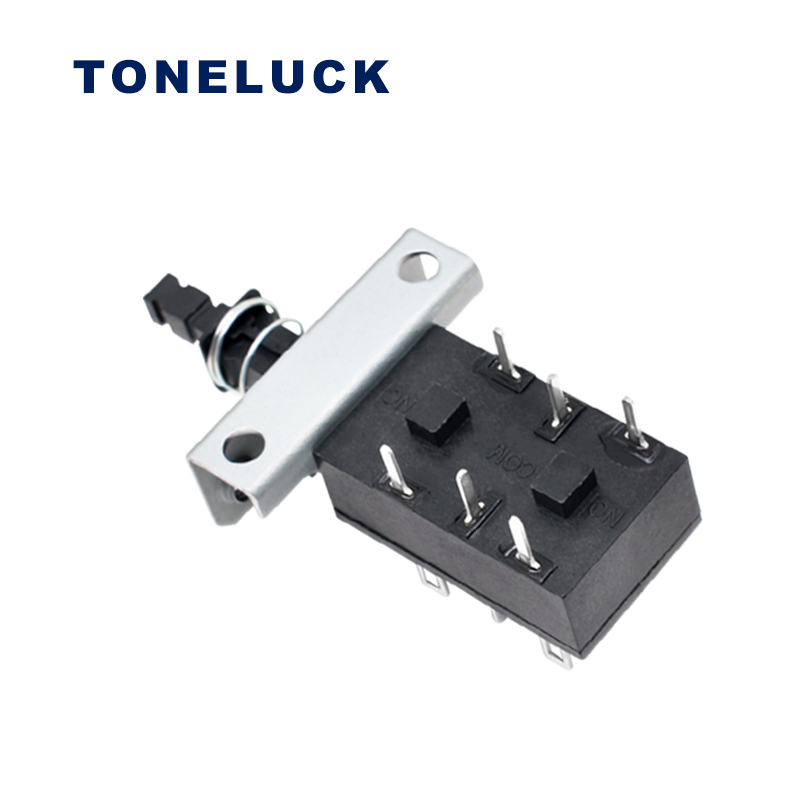

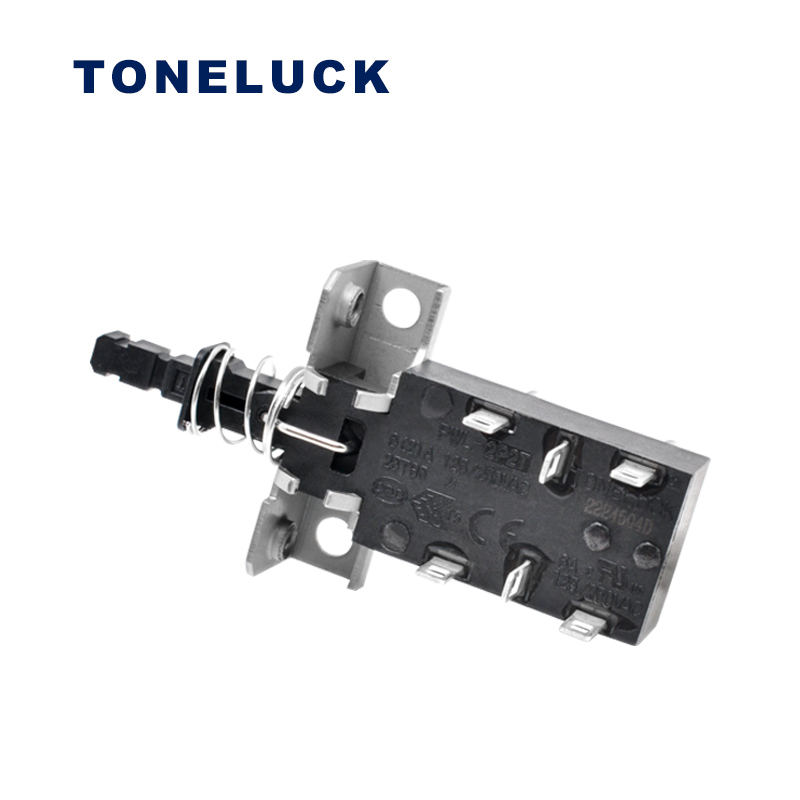

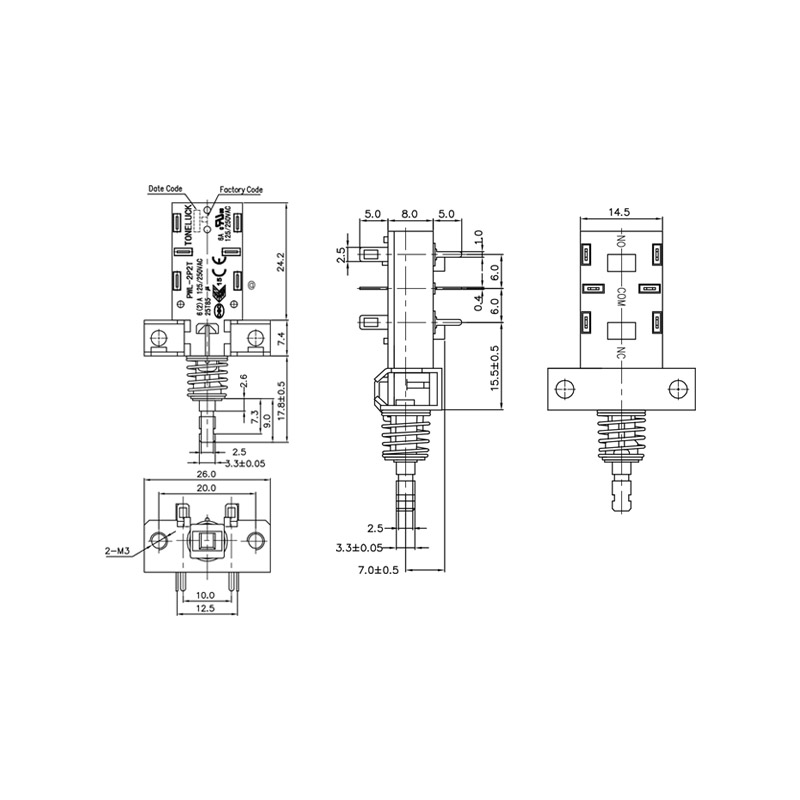

PWL power push button switch is a mains switch to control the device power in the rating of 6A 125VAC/250VAC with a 2P2T circuit and a metal bracket. And the metal bracket is in order to help to fit it on the device. Generally, we have the M3, Ø 3.2 mm, and Ø 2.4 mm mounting holes for your options. Meanwhile, in some applications, it will be constituted with other switches as a ganged switch, which can be 2, 3, 4, 5, 6, or more. Welcome to contact us to custom the bank switch.
Besides, the PWL switch also has the safety approvals to meet the requirement of different countries, such as the UL, cUL, VDE, etc.
Power Push Button Switch Specification
| MPN | PWL-2P2T-6SAPTA |
| Puissance électrique | 6A 125/250VAC(UL.cUL), 6(2)A 125/250VAC(ENEC.CQC) |
| Résistance d'isolement | 100ΩM Min. |
| Force diélectrique | 1500VAC for 60 ± 5 sec. |
| Température de fonctionnement | -25℃ to +85℃/ 25T85 |
| Résistance de contact | 50 mΩ max. (initial) |
| Force opérationnelle | 560±150gf |
| Contact | Silver Alloy |
| Voyage vers l'écluse | 3.0mm (Total travel: 4.5mm) |
| Logement: | UL 94 V0 |
