Short Description
This is a small-size micro switch with NO NC COM PCB terminal in the certificated rating of 2A 12VDC, 40T85, 100000 cycles by UL ENEC CQC.
MQS-4 series Waterproof micro switch

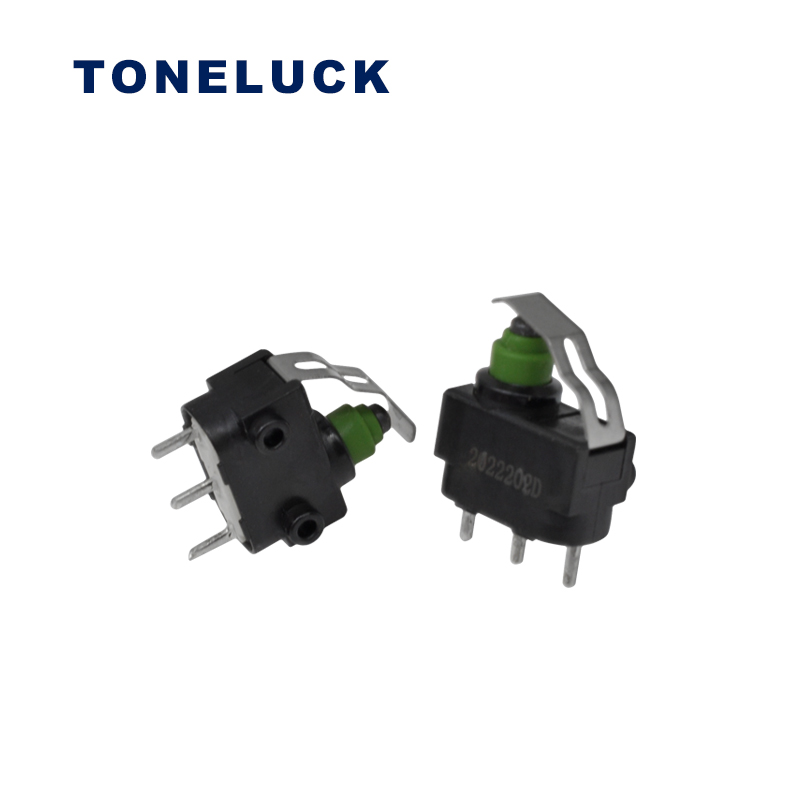

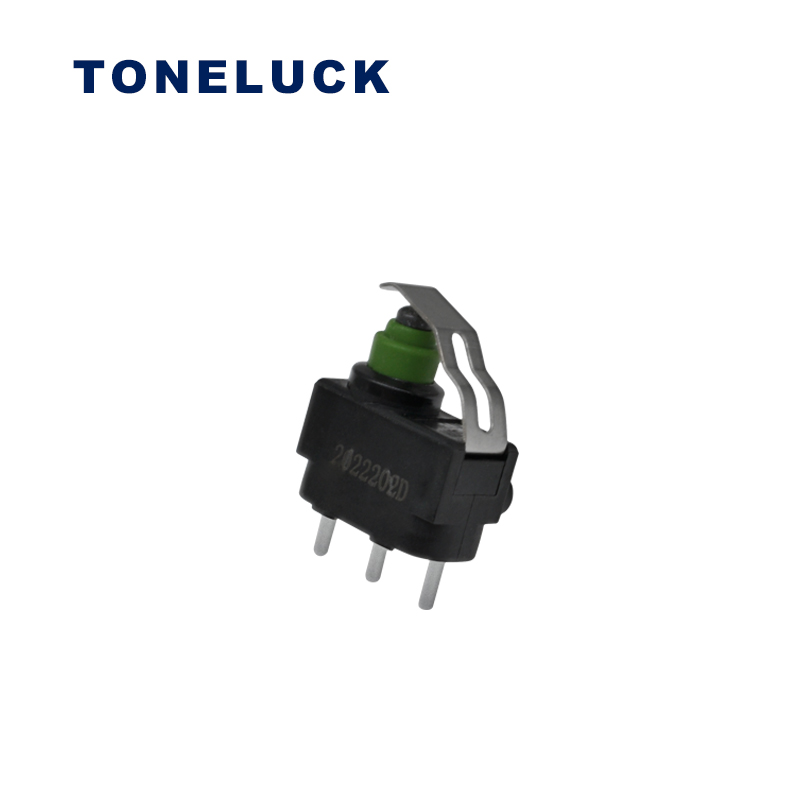

Product name: MQS-421AC03-01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description
The MQS-421AC03-01 Micro Switch NO NC COM PCB terminal in the certificated rating of 2A 12VDC, 40T85, 100000 cycles by UL ENEC CQC. Meanwhile, this model is an IP67 waterproof protection level. So that it can work in some wet environment. Generally, the switch can be used automotive industry, electric power tools, and so on.
Besides, if you any other parameters of the switch. Such as the lever, Operating force, terminals type, wiring harness, etc. Please feel free to contact us to get more information.
Spezifikation
| Elektrische Nennleistung | 10~50mA 12~24 VDC 250.000 Zyklen Min. |
| Betriebstemperatur | -40℃ bis +85℃ |
| Mechanische Lebensdauer | Mindestens 500.000 Zyklen. |
| Kontaktwiderstand | 50 mΩ Max. (Anfangswert) |
| Einsatzkräfte | 150 gf Max. |
| Isolationswiderstand | 100ΩM Min. |
| Durchschlagsfestigkeit | 500 VAC für 60 ± 5 Sek. |
| Gehäuse: | UL 94 HB Thermoplast (Basis) UL 94 HB Thermoplast (Abdeckung) |
