Micro Electrical Switch Short Description
The MQS-216SN00BCK-01 micro electrical switch’s rating is 16A 125VAC and 250VAC, 40T85, 5E4, which is certificated by the UL, ENEC, and CQC.

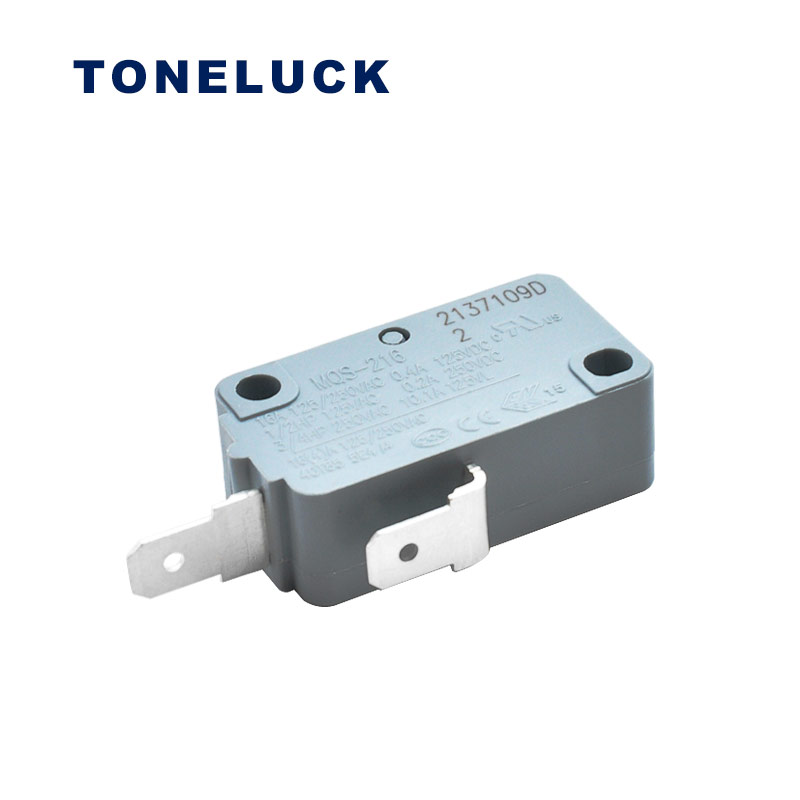

Product name: MQS-216SN00BCK-01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Micro Electrical Switch Details Description
The MQS-216SN00BCK-01 micro electrical switch’s rating is 16A 125VAC and 250VAC, 40T85, 5E4, which is certificated by the UL, ENEC, and CQC. Meanwhile, it also has an SPST normally-open current code for users but if you need others, like the SPDT, or SPST-NC, we also can provide them. The difference with other switches, the Toneluck switch is a high-precision microswitch, which only has a tiny error because it has a high-precision mold.
Besides, if there is any information you do not find in our listing, please contact us without any hesitation.
Spezifikation
| Elektrische Nennleistung | 10~50mA 12~24 VDC 250.000 Zyklen Min. |
| Betriebstemperatur | -40℃ bis +85℃ |
| Mechanische Lebensdauer | Mindestens 500.000 Zyklen. |
| Kontaktwiderstand | 50 mΩ Max. (Anfangswert) |
| Einsatzkräfte | 150 gf Max. |
| Isolationswiderstand | 100ΩM Min. |
| Durchschlagsfestigkeit | 500 VAC für 60 ± 5 Sek. |
| Gehäuse: | UL 94 HB Thermoplast (Basis) UL 94 HB Thermoplast (Abdeckung) |
